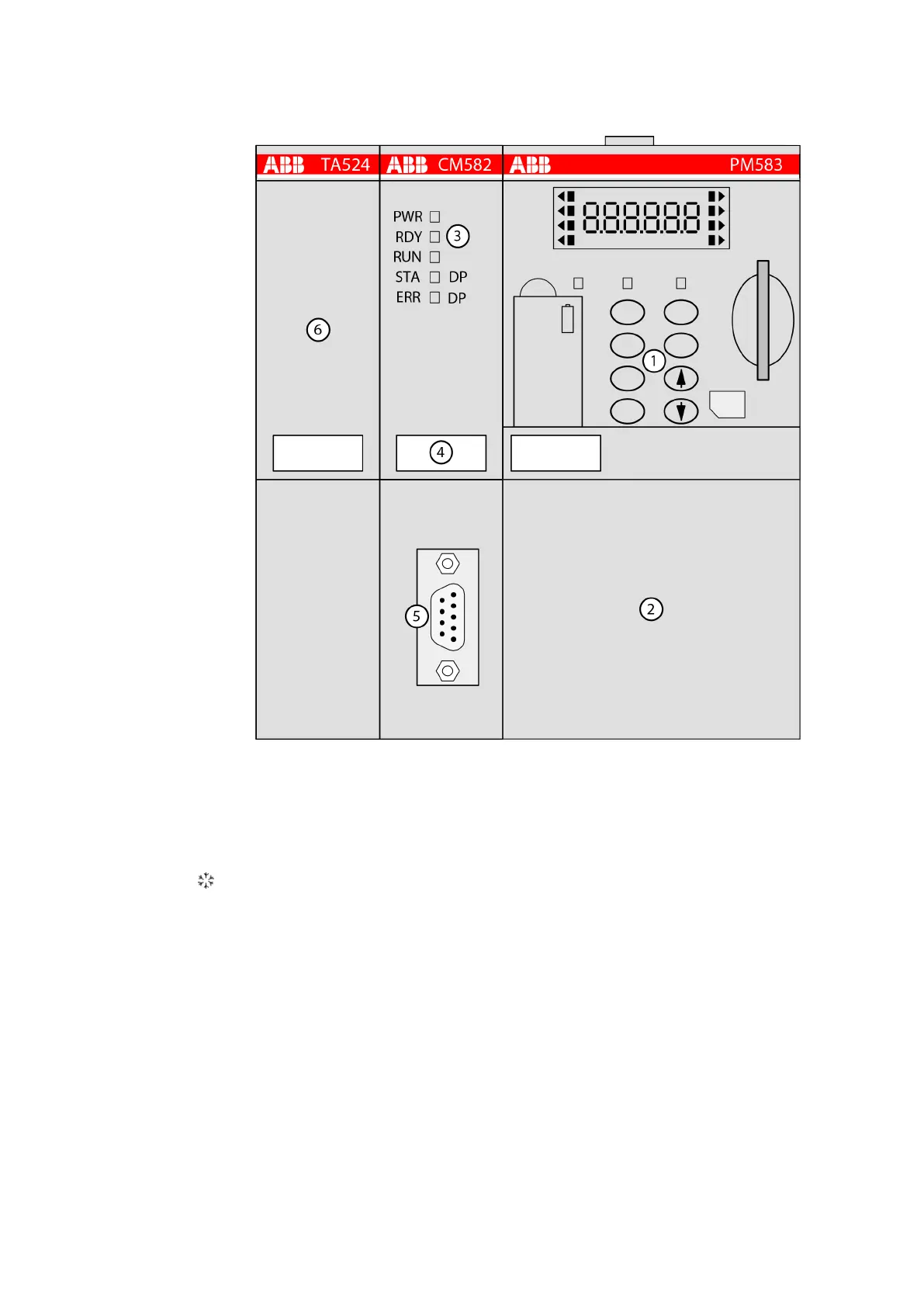

13.4 Connection

1 CPU

2 The connection part may be different on various terminal base types. See installation

instructions of the specific terminal base suitable for this CPU for connection specifications.

3 5 LEDs for state display

4 Label

5 Interface for PROFIBUS

6 TA524 Dummy Communication Module

Sign for XC version

CM582-DP

Connection

2019/11/15 3ADR024117M02xx, 11, en_US 109
