ABB AX521 User Manual

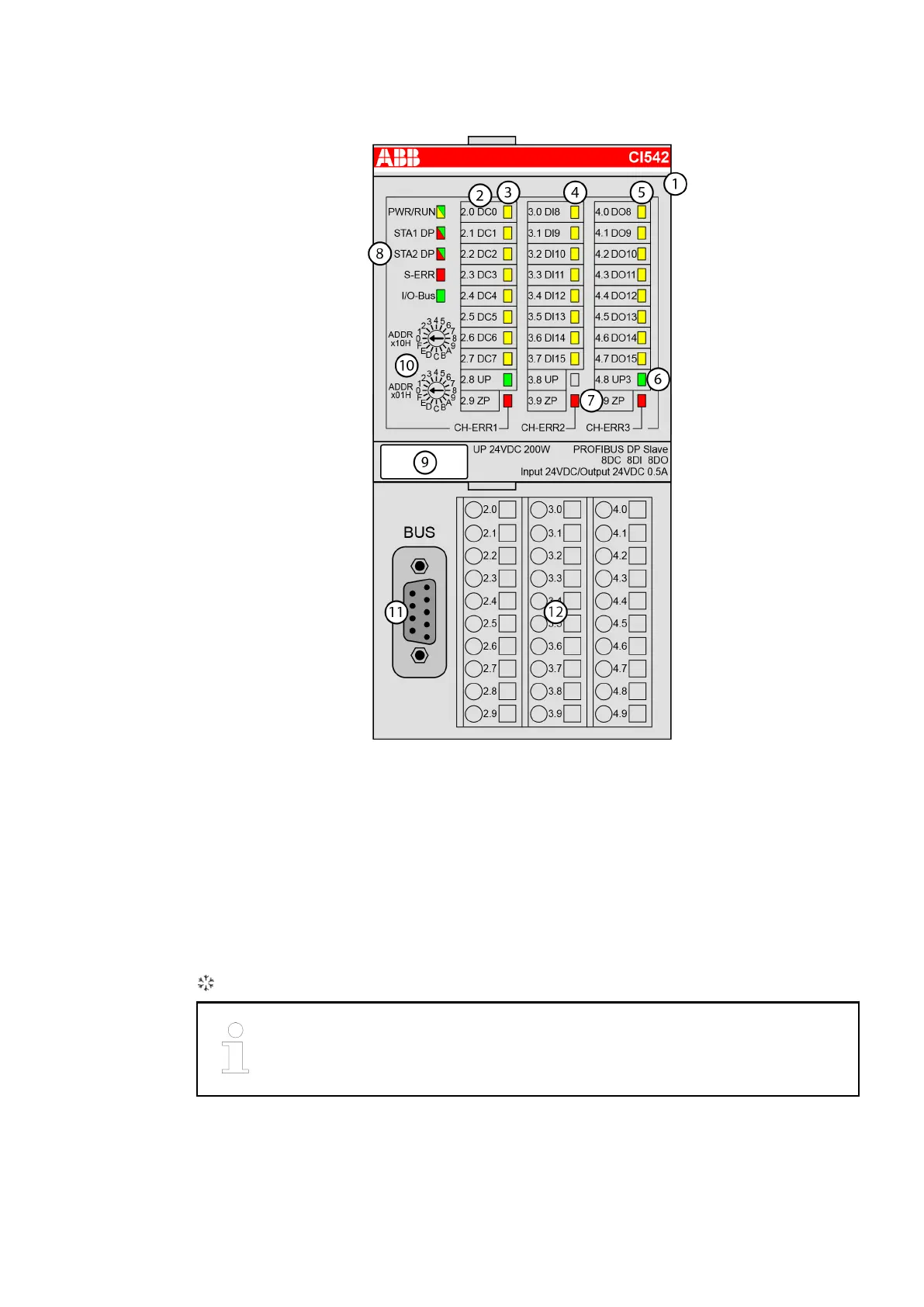

10.4 Connection
1 I/O bus
2 Allocation between terminal number and signal name
3 8 yellow LEDs to display the signal states of the configurable digital inputs/outputs
(DC0 - DC7)
4 8 yellow LEDs to display the signal states of the digital inputs (DI8 - DI15)
5 8 yellow LEDs to display the signal states of the digital outputs (DO8 - DO15)
6 2 green LEDs to display the supply voltage UP and UP3
7 3 red LEDs to display errors (CH-ERR1, CH-ERR2, CH-ERR3)
8 5 system LEDs: PWR/RUN, STA1 DP, STA2 DP, S-ERR, I/O-Bus
9 Label
10 2 rotary switches for setting the PROFIBUS ID
11 Interface for PROFIBUS
12 Terminal unit
Sign for XC version
All I/O channels (digital and analog) are protected against reverse polarity,
reverse supply and continuous overvoltage up to 30 VDC.
CI542-DP
Connection
2019/11/153ADR024117M02xx, 11, en_US84
