The dimensions are in mm and in brackets in inch.

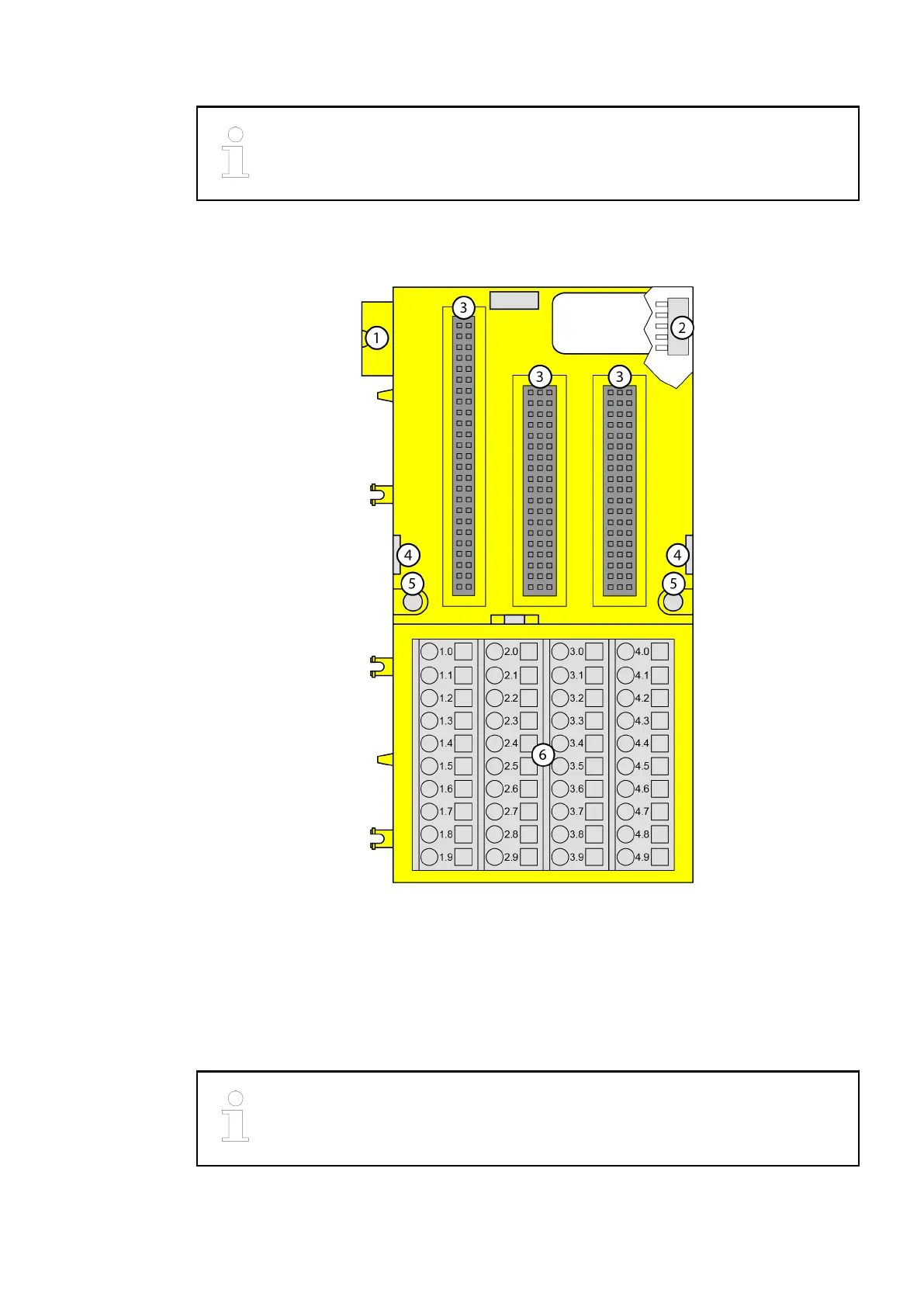

33.5 Connection
1 I/O bus (10 pins, male) to electrically connect the previous terminal unit, the CPU terminal
base or the communication interface module to the terminal unit
2 I/O bus (10 pins, female) to electrically connect other terminal units
3 Plug (1x 50 pins and 2x 57 pins) to electrically connect the inserted I/O modules
4 With a screwdriver inserted in this place, the terminal unit and the adjacent terminal unit can
be shoved from each other
5 Holes for wall mounting
6 40 spring terminals for signals and process supply voltage
AC500-S Safety User Manual
For a detailed description of the electrical connection of the module, please
refer to the "AC500-S Safety User Manual".
2019/11/153ADR024117M02xx, 11, en_US252
