Product Overview
C13 6 2CMC486004M0201
User Manual Revision: A
2.1 Meter Parts
Illustration

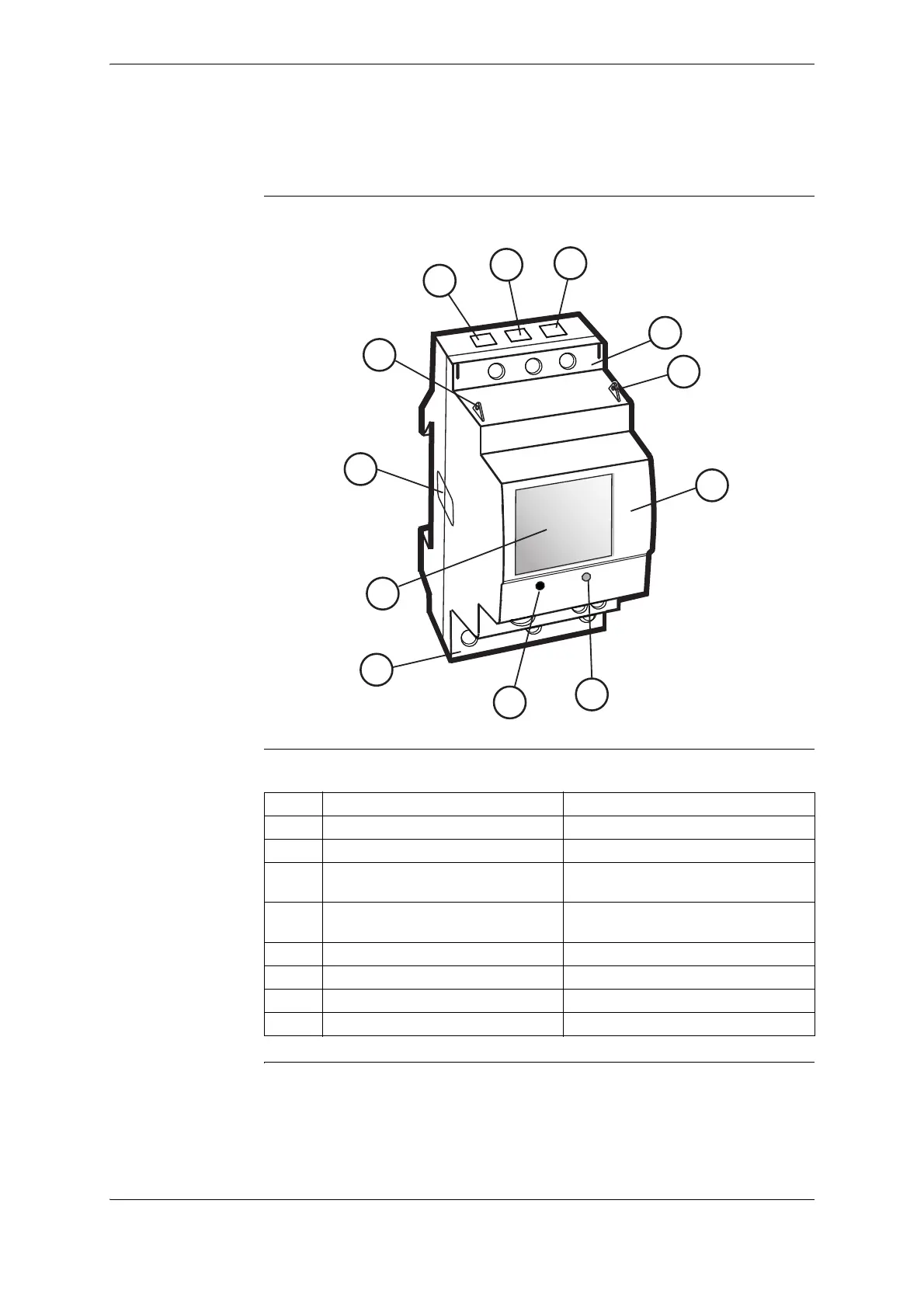

The parts of the meter are shown in the illustration below:
Parts description
The following table describes the parts of the meter:
1
1
1
2
2
6
5
4
8
3
7
8
Item Description Comments
1 Terminal for output connections
2 Sealing points
3 Push button For programming and reading metering
data
4 LED Flashes in proportion to the energy
measured
5 Display LCD for meter reading
6 Sealing label
7 Product data
8 Terminal block
