User Interface
C13 16 2CMC486004M0201
User Manual Revision: A

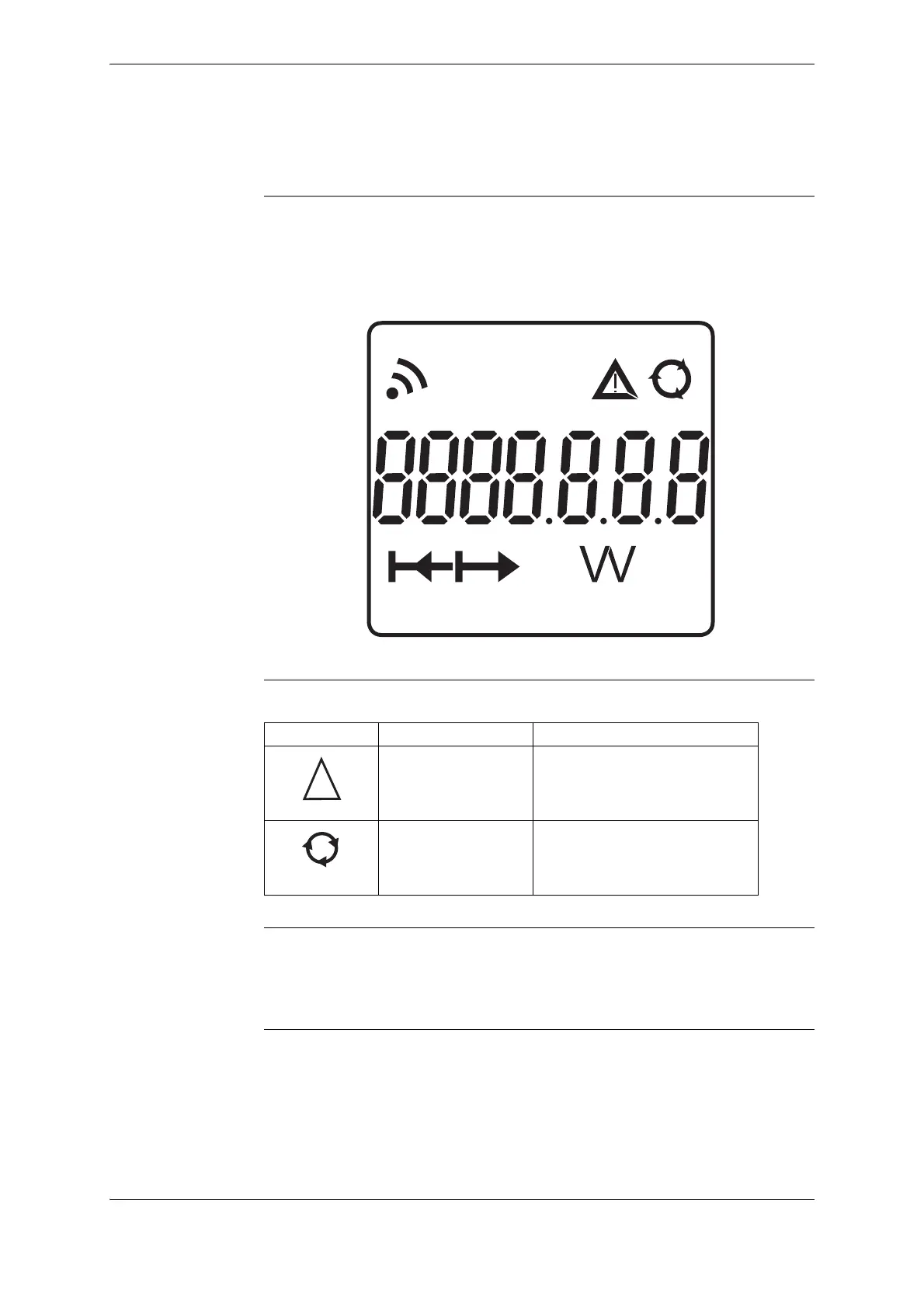

4.1 Display and buttons
Display
The display consists of icons, digits and letters. The measured value/menu options
are displayed with large letters. The measured unit is displayed on the bottom-
right side of the display, and the status icons are displayed at the upper part of the
display, see figure below.
Status Icons
The status icons are shown in the table below.
Button
The meter has one push button which is located below the display. A short press
on the button (less than 1 sec) will step through the menu/submenu. A long press
(more than 1 sec) followed by a release of the button will open the set menu or
select an item in the menu.
Icon Indication Comment
Active error When a error has been detected,
the icon will be lit on the display.
When no error has been detected,
the icon will be turned off.
Metering in progress. When a load is connected to the
meter, the icon will flash to indicate
metering. When no load is con-
nected, the icon will be turned off.
