TEMPERATURE MONITORING DEVICE COMEM DTI AND COMEM EDTI - INSTRUCTION MANUAL
—

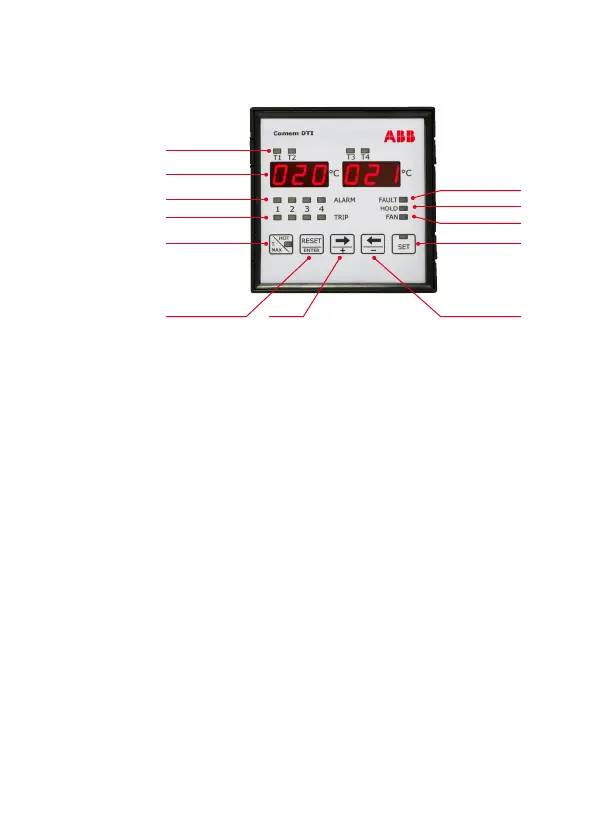

5. Front panel description
1
2
3
4
8
9 10 10
11
7
6
5
Legend:
1. LEDs T1-T2-T3-T4 for the on-measuring channel displayed
2. T1-T2 and T3-T4 displays for the channel temperature
visualization and settings
3. LEDs ALARM for the Alarm status in the related channels
(1 to 4)
4. LEDs TRIP for the Trip status in the related channels (1 to 4)
5. LED FAULT: failure indication (device or PT100 probes)
6. LED HOLD: the manual reset is active
7. LED FAN: the ventilation output is active
8. Push - button HOT / T. MAX to display the measured channel
with higher temperature (LED indication activated) and to
display maximum temperatures achieved
9. Push - button ENTER / RESET to confirm programming set
and the manual alarm reset intervention
10. Push - buttons for selecting the displayed channel
and for changing parameter of programming
11. Push - button SET for the settings
