1.1.5 Status LEDs for integrated power supply
1.1.6 Operating and connection elements
CP1484, CP1485 and CP1486
Image LED Color Status Description
r Green Off Module not supplied
Single flash Reset mode
Blinking Preoperational mode
On RUN mode
e Red Off Module not supplied or everything is OK
Double flash Indicates one of the following conditions:
• X2X link power supply is overloaded
• I/O supply too low
• Input voltage for X2X Link supply too low
e + r Steady red / single green flash Invalid firmware
S Yellow Off No RS232 activity
On The LED is on, when data is being sent or received via the RS232
interface
I Red Off X2X link supply in the acceptable range
On X2X link power supply is overloaded
Table 9: X20 CPUs - status display for integrated power supply

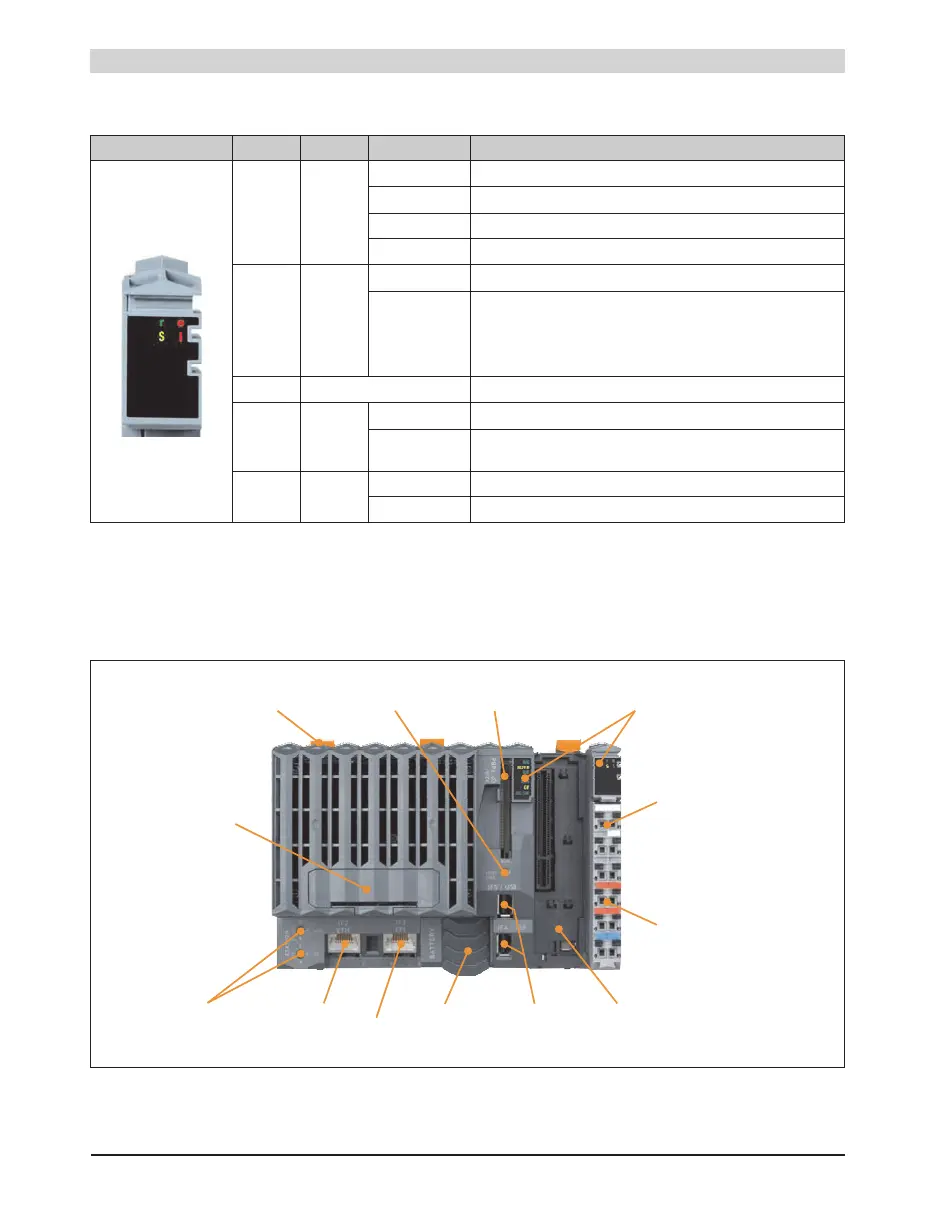

Figure 1: X20 CPUs - operating elements for CP1484, CP1485, and CP1486
Mounting rail
latch
Operating mode
switch
CompactFlash LED status indicators
IF1 - RS232
Exchangeable
fan (CP1486)
Ethernet
station address
IF2 -
IF3 -
Battery
IF4 - USB
IF5 - USB
Slots for
interface
modules
Terminal block for CP
U
and I/O feed,
RS232 connection
Ethernet
ETHERNET
Powerlink
