2 Hardware overview
2.1 Main computer DSQC1000
Connections
The I/O network is connected to the PROFINET anybus device, DSQC 688, on the
main computer.

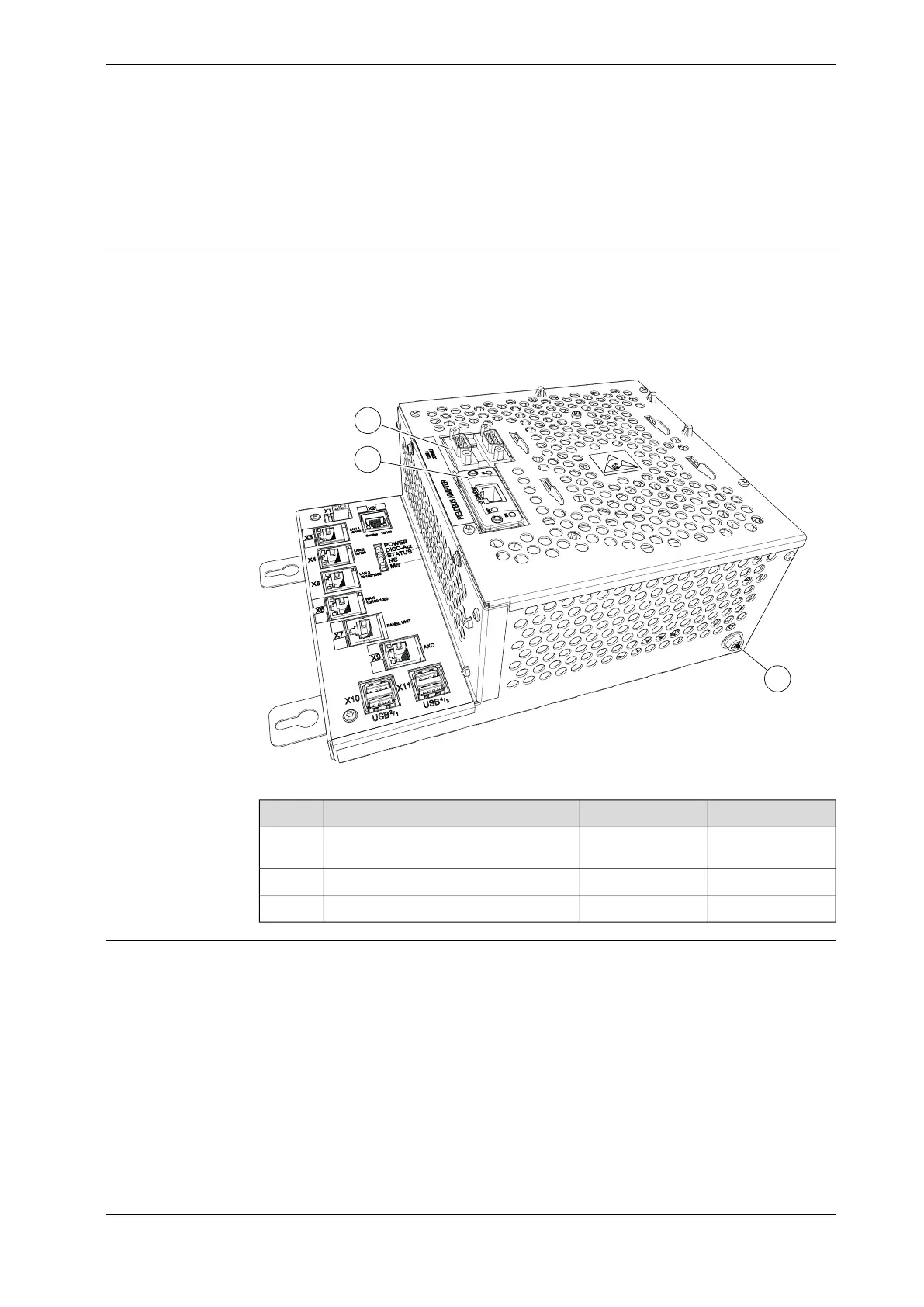

The following figure illustrates the location of the anybus device in the main
computer unit.
xx1300000756
Article numberDesignationDescription
3HAC046408-001DSQC1003Anybus Device / RS232 expansion
board
A
3HAC031670-001DSQC 688PROFINET anybus deviceB
Ground connection for ESD braceletC
Installation of the anybus device
For information on how to install and replace the anybus device, see Product
manual - IRC5.
Continues on next page
Application manual - PROFINET Anybus Device 19
3HAC050968-001 Revision: C
© Copyright 2008-2016 ABB. All rights reserved.
2 Hardware overview
2.1 Main computer DSQC1000
