3 Press or to select the required value.
4 Press to confirm your selection

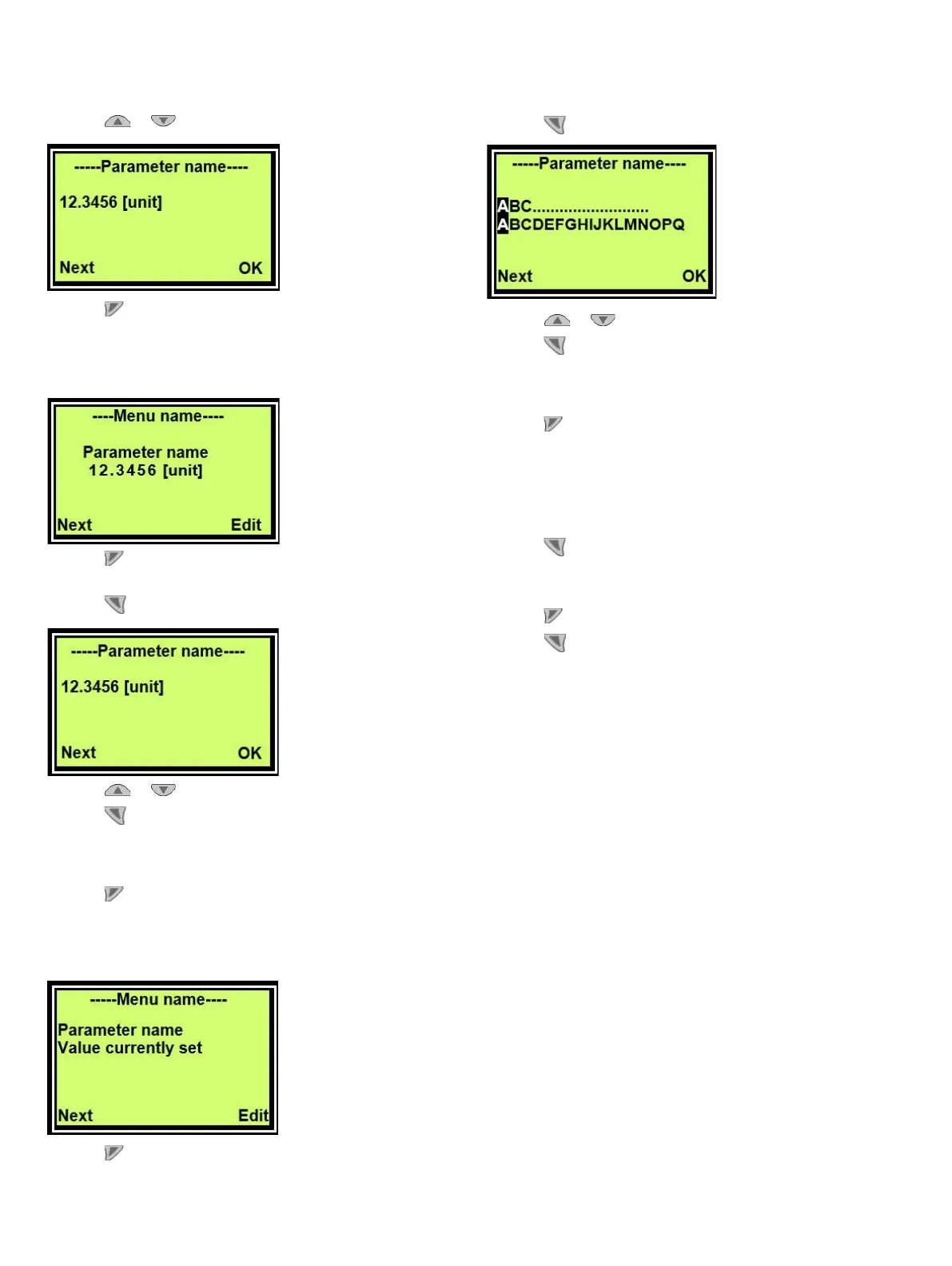

Setting a numerical parameter
1 Select the parameter you want to set in the menu.
2 Press for parameter editing. The currently selected
position is highlighted.
3 Press
to select the decimal position to be changed.
4 Press or to select the required level.
5 Press
to select the next position.
6 If necessary, select and set other decimal positions using the
same procedure as described in steps 3 and 4.
7 Press
to confirm your setting
Setting an alphanumeric parameter
1 Select the parameter you want to set in the menu.
2 Press for parameter editing. The currently selected
position is highlighted.
3 Press
to select the alphanumeric position to be changed.
4 Press or to select the required character.
5 Press
to select the next position.
6 If necessary, select and set other alphanumeric positions
using the same procedure as described in steps 3 and 4.
7 Press
to confirm your setting
Exiting the setup
Values are mandatory for some menu items. Exit a menu
without parameter change as follows:
1 Press
repeatedly till the cursor is moved to the right.
Once the cursor reaches the end position, “Cancel” is
displayed in the lower right.
2 Press
to terminate editing and exit the menu item. Or
press
to return to the start.
IMPORTANT (NOTE)
The LCD display automatically returns to the process display
three minutes after the last button is actuated.
Overview of parameters at the configuration
level
IMPORTANT (NOTE)
This overview of parameters shows all the menus and
parameters available on the device. Depending on the device
version and configuration, some menus and parameters may
not be visible.
The displayed menu vary in different operation modes. In this
section, menus displayed only in some operation modes are
marked with numbers in brackets. The numbers represent the
operation modes as follows:
• Level
• Flow
• Volume
Refer to section “Menu levels” for a list of operation modes
these numbers represent.
