LST300 | COMPACT ULTRASONIC LEVEL TRANSMITTER | LST300–EN REV. E
Open channel flow on EDD

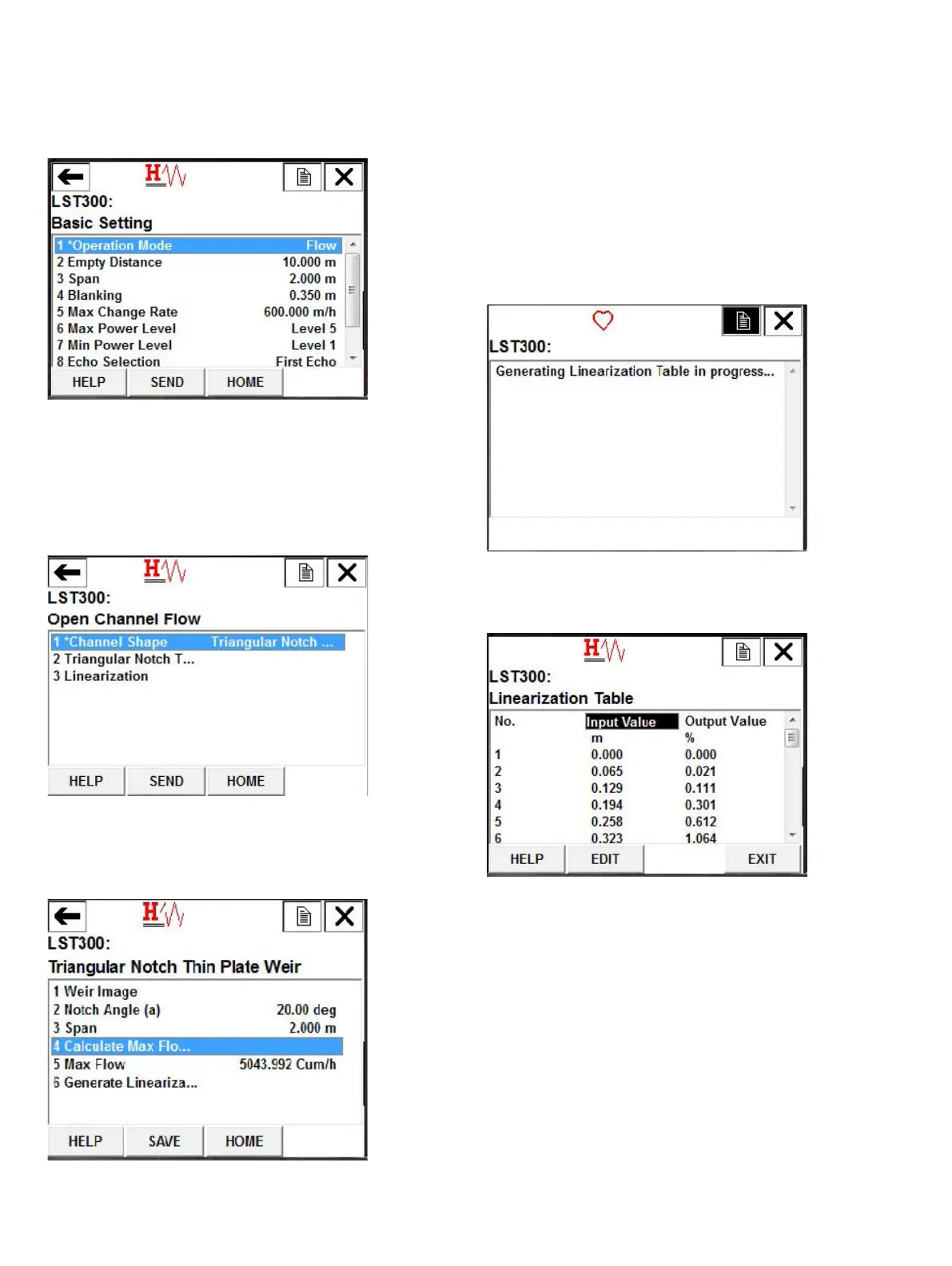

1 Click Configuration > Device Setup > Basic Setting.
2 Select
Flow
in the Operate Mode field and click SEND.
3 Click Configuration > Open Channel Flow.
4 Select a value from the Channel Shape box and click SEND.
The
Triangular Notch Thin Plate Weir
is selected here as an
example.
5 The parameters and an image for this channel shape are
displayed.
6 Edit the parameters and click Calculate Max Flowrate.
7 The maximum flowrate is calculated and displayed. The
maximum flowrate is downloaded to device automatically.
Note
The max flowrate calculation must be executed before the
linearization table generation, to prevent an incorrect
linearization table.
8 Click Generate Linearization Table to generate the
linearization table for this channel shape.
9 Click Configuration > Open Channel Flow > Linearization to
confirm the linearization.
To Next Page
