ABB NAL Series User Manual

45

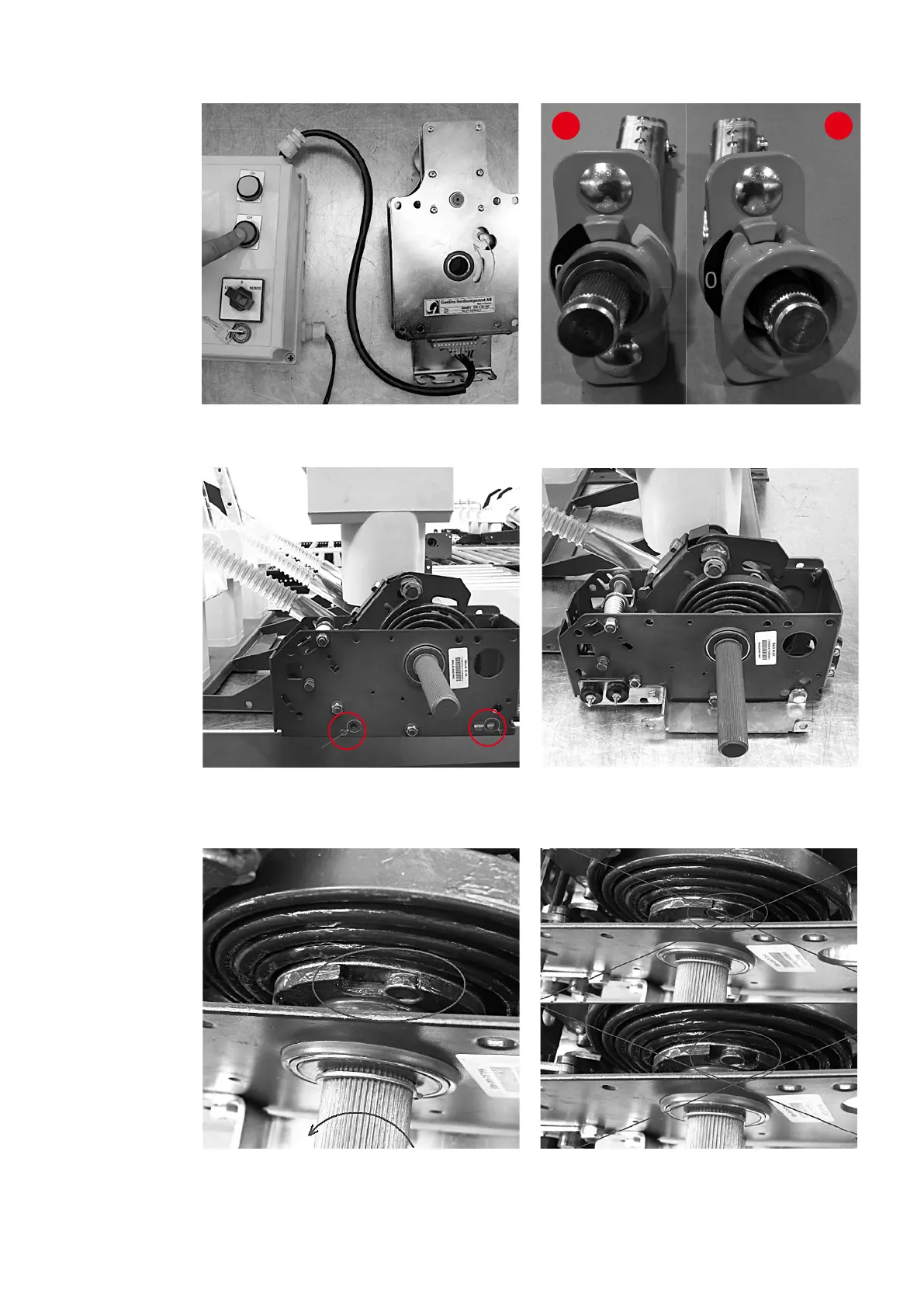

17.2 Motor drive settings for A-mechanism
—
86 Check that the motor drive is working correctly
—
88 Locate the spacer bracket mounting holes
—
90 Mounting of NM/MU motor drive on A-mechanism
—
89 Tighten mounting screws with 25 [Nm] torque
—
91 Mounting of NM/MU motor drive on A-mechanism
—
87 HE lower part for motor operation (a) and manual operation
(b). There is also possibility to add blocking coil (b).
2. NAL/NALF/VR must be in open position and discharge both springs. Locate the spacer bracket
mounting holes on the A-mechanism, see Fig.88, 89. Tighten mounting screws with 25 [Nm] torque
1. Check that the motor drive is working correctly
3. To reduce side shake, turn the operating shaft anticlockwise, see Fig. 90, 91.
a) b)
