Navigator 600 Series Analyzers
AW641 and AW642 3 Network Connection and Configuration
4 IM/NAV6PBS Issue 1
3 Network Connection and Configuration
3.1 Network Connections – Fig. 3.1
Warning. When connecting a Profibus-enabled Navigator 600 Series analyzer to a Profibus-DP network:
 Use shielded data lines and ensure they are not reversed.
 Ensure all data lines are routed clear of the source of any strong electrical and magnetic fields.
 Refer to the User Guide for all other installation and connection details.

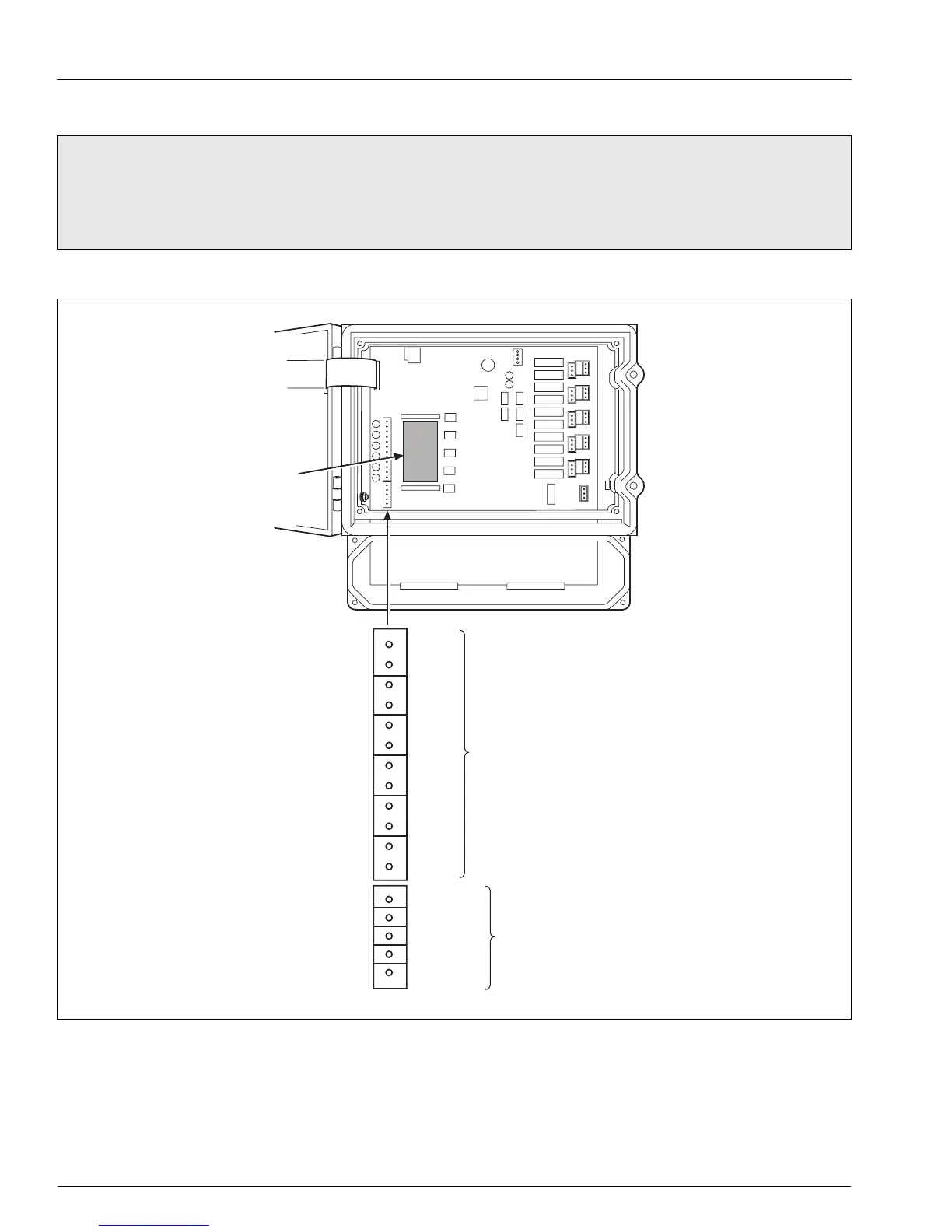

Fig. 3.1 Network Cable Connections

+

+

+

+

+

+
1
2
3
4
5
Current Outputs
Profibus Communications Board
Profibus Connections
O/P 6
O/P 5
O/P 4
O/P 3
O/P 2
O/P 1
B (Red)
A (Green)
Screen
