Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M020148 Chapter 6

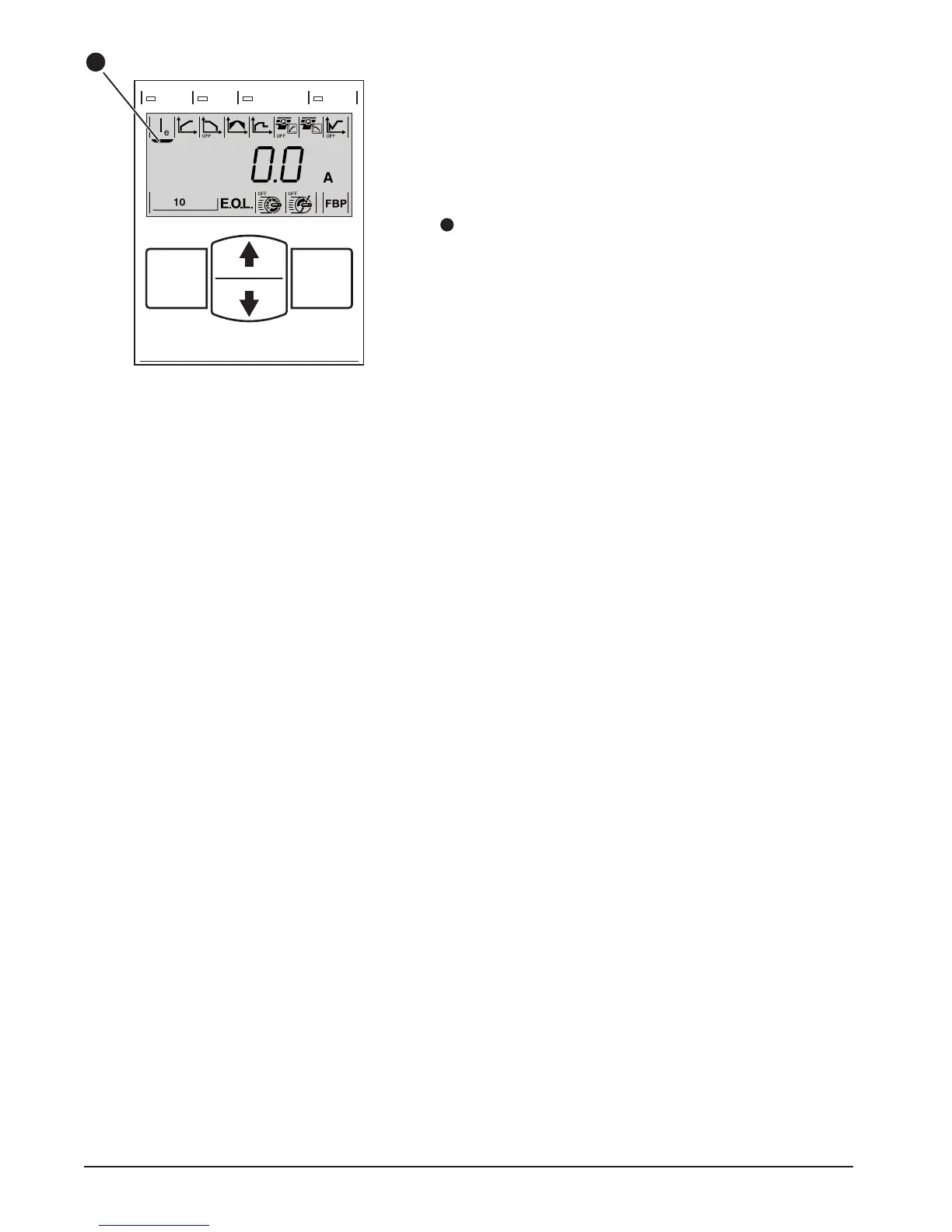

Figure 6.2: Cursor indicating parameter accessible
for conguration
Ready Run
Exit
Select
Reset
Protection
Fault
A
6.1.2.2 LCD display and keypad
The keypad is based on the same user concept as common on mobile phones.
See gure 6.1.
The LCD display contains three rows. The top row has 8 parameter icons. The
middle row has a lock symbol, 4 digits and units. The bottom row has 4 param-
eter icons.
On the middle row various information is presented.
A cursor
A
indicates which parameter value is possible to change at each posi-
tion, as shown in gure 6.2.
The Exit key for cancelling parameter edits and for exiting one menu level.
The Select/Reset key normally has more than one function, such as selecting,
changing, storing, and manual reset of tripping events, depending on present
view.
The navigation keys are used for navigating in the menu and changing parameter
values. Flashing numbers or text shown in the display indicates that the parameter
value can be changed or scrolled.
If key is held down, scrolling will be faster. When selecting from a list, the scrolling
is done in a closed loop.
You will nd a description of all settings in Chapter 7 Functions and conguration
and conguration.
The menu structure of the keypad is illustrated in gure 6.7.
