3.2 MTQ22-FBP
An easy to use PC configuration tool is provided to adjust the parameters of the MTQ22-FBP. The PC can be
connected to the MTQ22-FBP with a standard Micro USB-cable. The ABB Configuration Tool can be
downloaded by clicking the following link or searching for 1SAJ260900R0001 at the ABB Download Center.

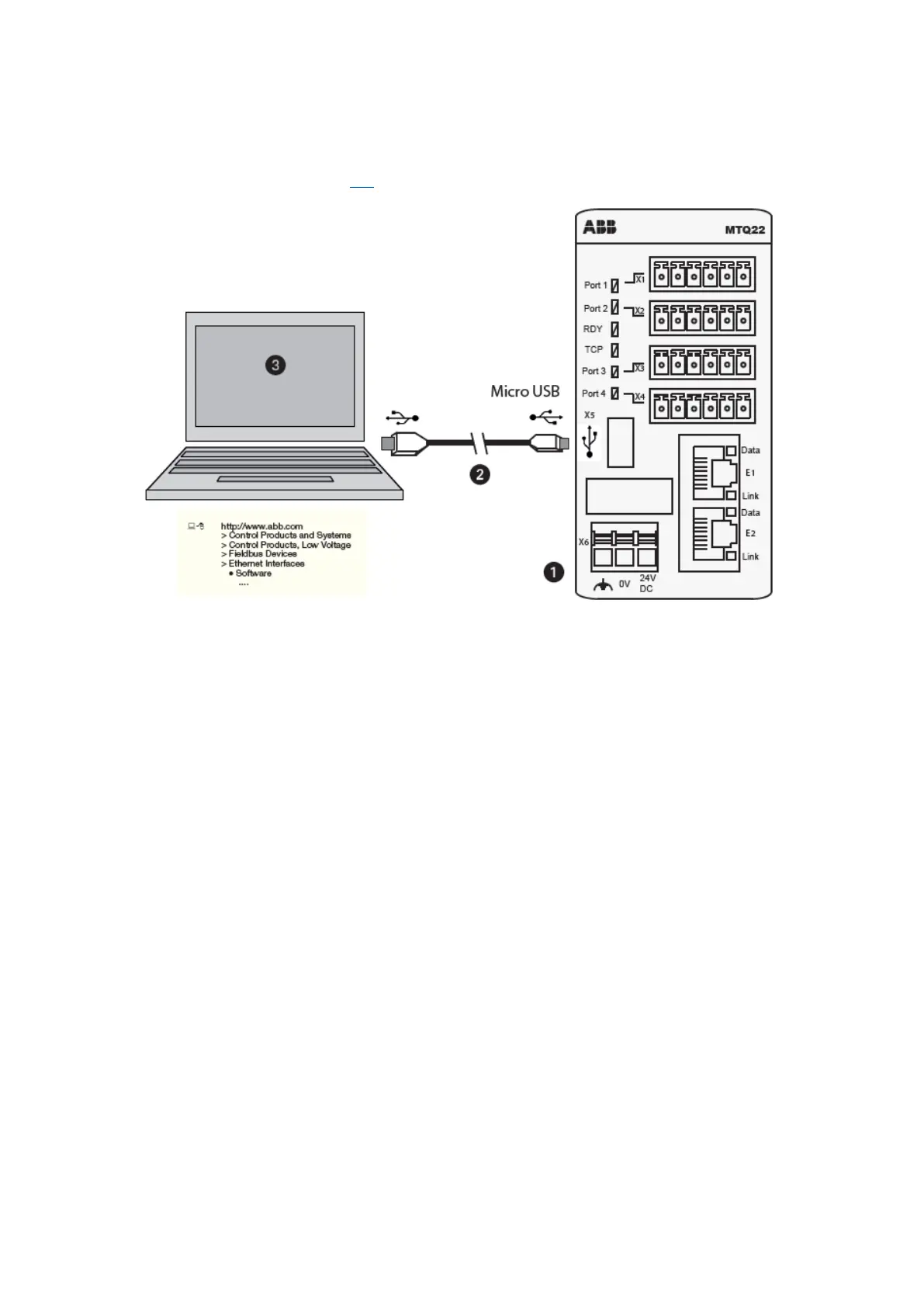

Figure 4: Connecting the MTQ22-FBP to a service Laptop. The MTQ22-FBP must be supplied with 24V DC before the
configuration can take place (1). For the connection a Micro USB cable (2) is used. On the PC the MTQ22-FBP
configuration software must be installed (3).
If the MTQ22-FBP is connected for the first time the required USB driver has to be installed. The Microsoft
USB driver is not part of the software package because of license reasons. It is pre-installed on Windows 7 and
10, for XP it must be downloaded separately from Microsoft. Follow the setup instructions of Windows to install
the new software. After startup of the application the screen is split into three areas - left, middle and right. In the
left area you can add as many MTQs as you have in your project. In the middle area the configuration parameters
per MTQ22-FBP are displayed. You can change them offline or online. The right area shows a short help text.
Make sure to start the Configuration Tool as administrator and to connect the USB cable between the PC and
MTQ22-FBP before the program is started.
