3.2 Configuring the HMI
This chapter describes how update firmware, set the ID
and how to reset the Softstarter to default.
3.2.1 Update Firmware
Firmware needs to be updated when changing the HMI.
Please contact your ABB sales office for information.
See Figure 1.
3.2.2 Set the ID
The ID of the Softstarter has to be changed when the
PCBA has been changed and after updating firmware.
Choose between 210…370 due to type of Softstarter.

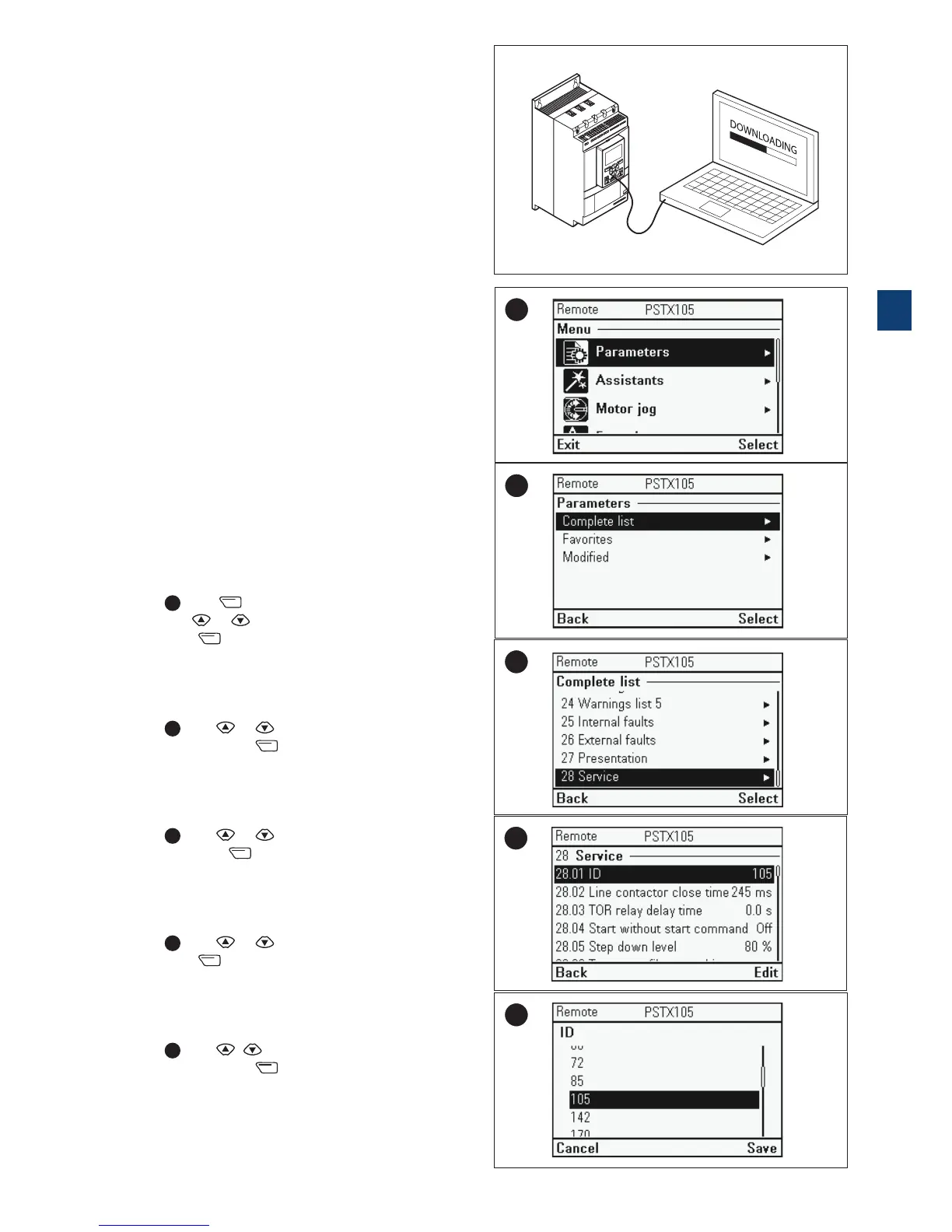

1. Switch on the power supply (terminal 1 and 2).
2.
1
Push ”Menu” to reach Menu.
Use
or to navigate to Parameters and then
push
”Select”.
3.
2
Use or to navigate to Complete list
and then push
”Select”.
4.
3
Use or to navigate to 28 Service and
then push
”Select”.
5.
4
Use or to navigate to 28.01 ID and then
push
”Edit”.
6.
5
Use , to set 28.01 ID to 105
and then push
”Save”.
1
3.2.2_3
1
2
3
4
5
3
