ABB REM 610 User Manual

PASSWORD :000
COMMUNICATION
A060567

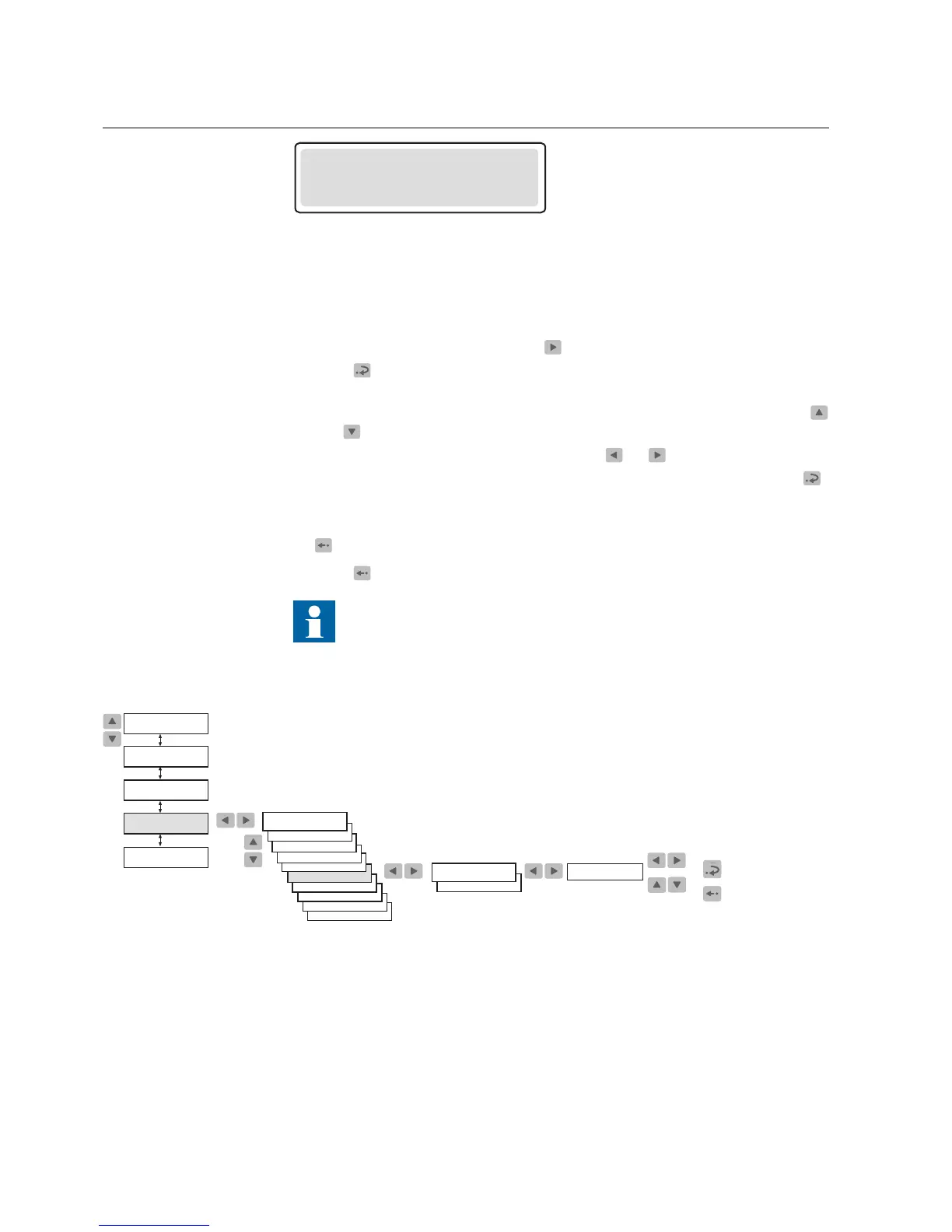

Fig. 4.1.6.-2 HMI communication password request for editing setting parameters
Change the HMI setting password as follows:
1. Press an arrow button to access the main menu.
2. Use the arrow buttons to select CONFIGURATION\HMI PASSWORDS
\SETTING PASSWORD and press
.
3. Press
to enter the setting mode and give the current HMI password if
required. If the default password 999 is still valid, no password is required.
4. The first digit of the password to be edited starts to flash. Set the digit using
and .
5. Activate the next digit to be set by pressing
or .
6. To store the new password and return the display to the view mode, press
.
The display confirms the storage by flashing “---” once on the display.
Alternatively, to exit the setting mode without storing the password change, press
once before confirming and the display returns to the view mode.
7. Press
to return the display to the idle mode.
The same procedure applies also when changing the HMI
communication password.
Main Menu
Group Menu
Parameter Menu
SETTINGS
CONFIGURATION
MEASUREMENTS
RECORDED DATA
HMI PASSWORDS
TIME
TRIP CIRCUIT SUP
FREQUENCY
CONFIGURATION
FUNCTION TEST/DI
COMMUNICATION
LANGUAGE
MEMORY SETTINGS
SETTING PASSWORD
CONFIGURATION
Scroll for the digit
Set the digit
Confirm
Cancel
RTD INPUTS
INFO
COMM. PASSWORD
CONFIGURATION
PASSWORD :xxx
STORE COUNTER
A040231_2
Fig. 4.1.6.-3 Changing HMI setting password and HMI communication password.
20
REM 610REM 610
Motor Protection Relay
Operator's Manual - ANSI ve rsion
1MRS755538
