SETTINGS\PROTECT. ELEMENTS\48/14 FLAx x.xx
Submenu
Parameter Menu
SETTINGS
GRP 2 :x.xx
* GRP 1 :x.xx
SETTINGS
Confirm
Cancel
48/14 FLAx x.xx
A070076

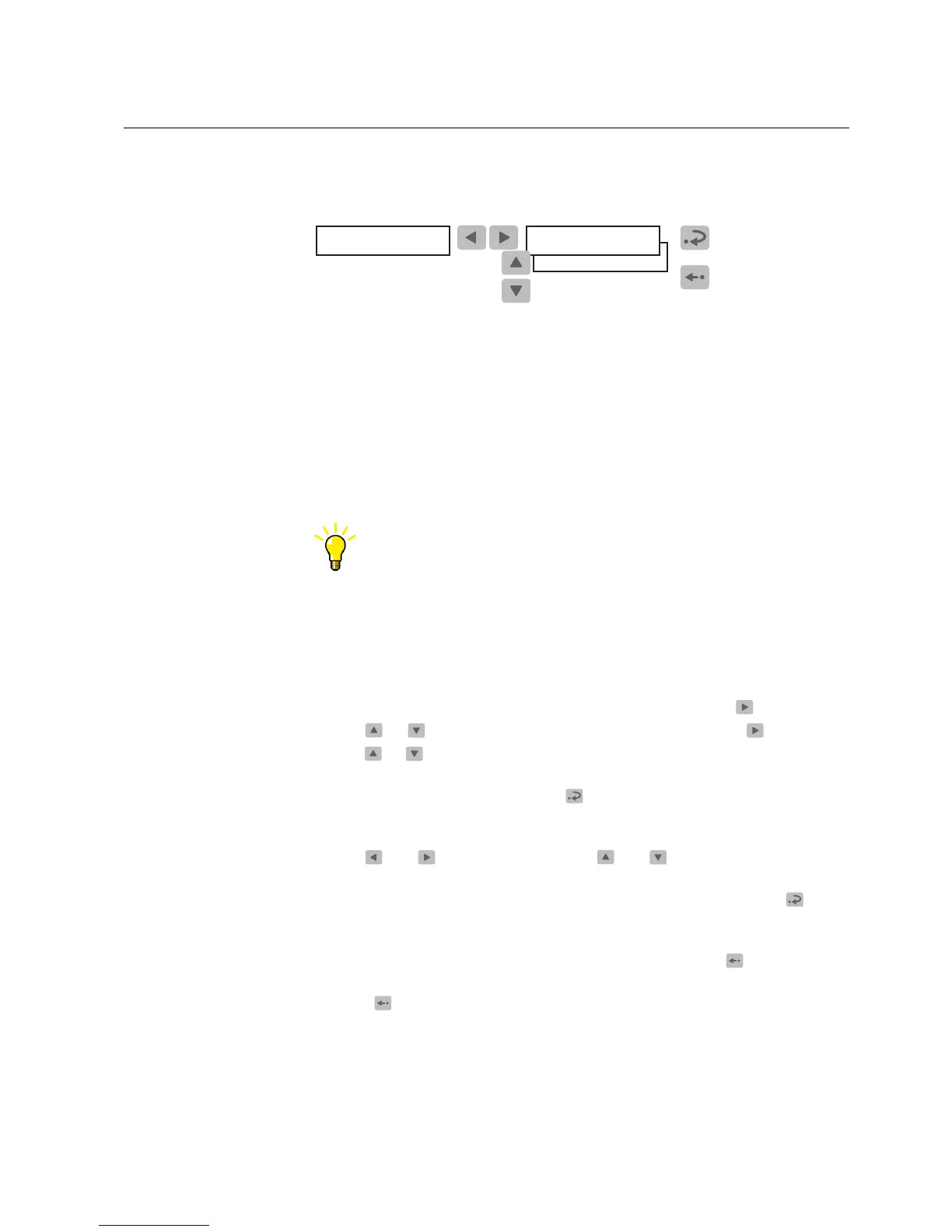

Fig. 4.2.2.2.-1 Setting parameters in setting group 1 and setting group 2
By switching between setting groups 1 and 2, you can activate a whole group of
settings at the same time. Switch between the setting groups as follows:
*
With the parameter GROUP 1/GROUP 2 under the main menu group
SETTINGS.
*
With a digital input signal, provided that SGB1...5/4 has been set to 1 in both
setting groups (GRP1 and GRP2).
*
With parameter V150 via the SPA bus.
When a large number of settings is to be altered, for example during
the commissioning of the relay systems, use a PC equipped with the
necessary software.
If no PC is available, or when only a few settings are to be altered:
1. Press an arrow button to access the main menu.
2. Use the arrow buttons to select the main menu group SETTINGS and the wanted
group menu (for example PROTEC. ELEMENTS), and press
.
3. Use
or to select the parameter to be changed and press .
4. Use
or to select setting group 1 or 2 (GRP1 or GRP2). The active setting
group is indicated by an asterisk "*".
5. Enter the setting mode by pressing
and give the password if required. If the
default password 999 is still valid, no password is required.
6. The first digit of the setting value of the parameter to be edited starts to flash.
Use
and to move the cursor and and to increase or decrease the
number.
7. To store a new value and return the display to the view mode, press
. If the
parameter is of a numerical kind, the display confirms the storage by flashing "-
--" once on the display.
8. To exit the setting mode without storing the changes, press
once before
confirming and the display returns to the view mode.
9. Press
to return the display to the idle mode.
