Installation
18 RHDE250 ... 4000 (Contrac) 42/68-167-EN
Pos: 11.24 /Montage/A ktorik/Elektr. S chwenkantriebe/RHDE250. ..4000/Gestal tung der Antriebsele mentnabe @ 12\mod_11891491 61671_3101.doc @ 121126
M00347
X
F
R

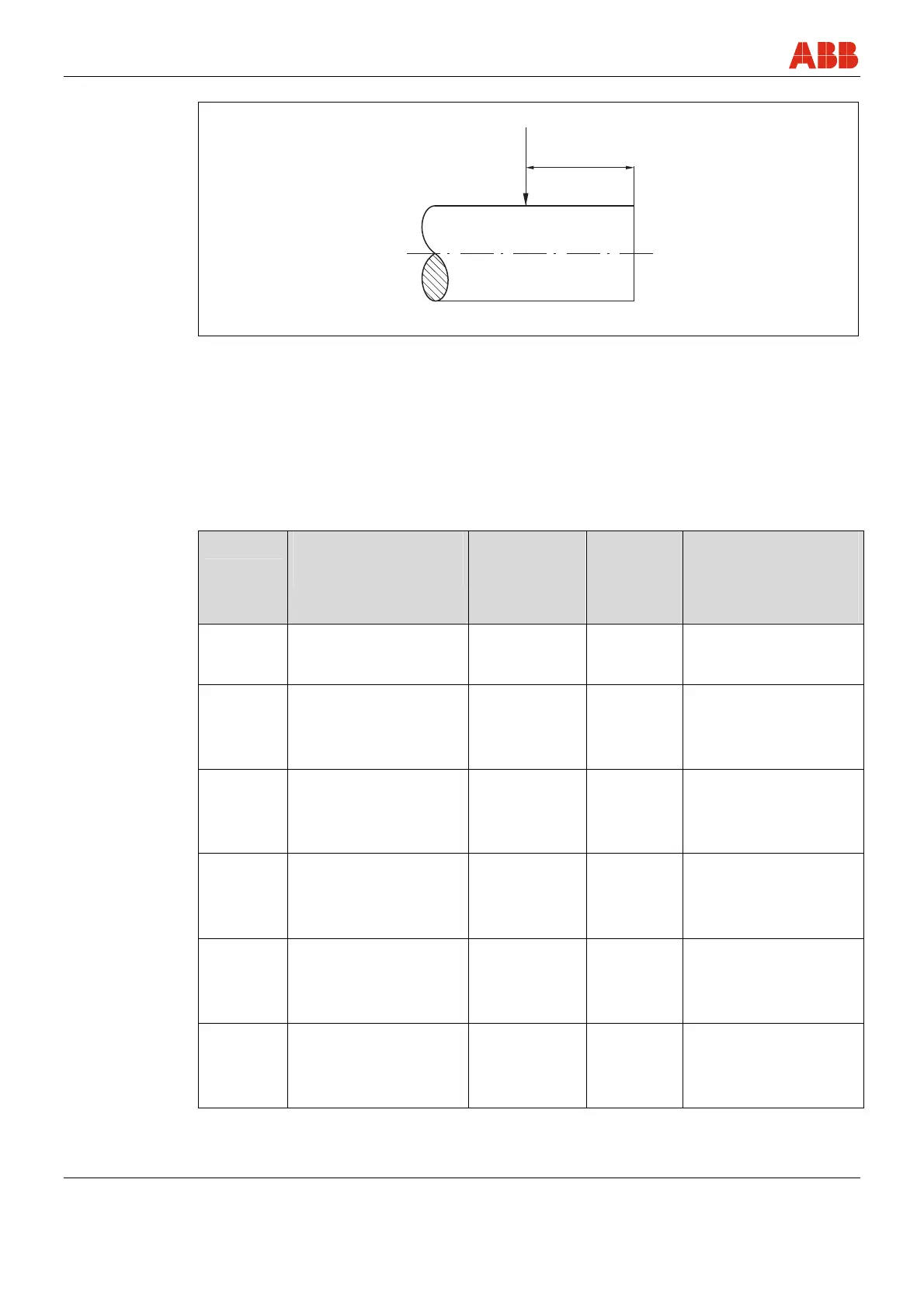

Fig. 5: Stub shaft
Configuring the drive element hub
The new drive element is mechanically connected to the drive shaft via a hole with feather key
groove . This connection must be constructed so that the rated torque and any possible output
torque is transmitted accurately. The drive element must be mounted securely on the drive shaft
with suitable measures to prevent axial shift. For the new drive element, you can use the current
mechanical stops.
The following parameters must be observed:
Type bore diameter
mm (inch)
Key width mm
(inch)
Hub length
mm (inch)
Minimum yield
strength of hub Rp 0.2
N/mm
2
(pounds/square
inch)
RHDE250
30 +0,033
(1.18 +0.0013)
8 -0,015/-0,051
(0.31 -0.0006/-
0.0020)
50 (1.97) 320 (46412.80)
RHDE500
50 +0,039
(1.97 +0.0015)
14-0,018/-
0,061
(0.55 -0,0007/-
0.0024)
70 (2.76) 320 (46412.80)
RHDE800
50 +0,039
(1.97 +0.0015)
14-0,018/-
0,061
(0.55 -0,0007/-
0.0024)
70 (2.76) 320 (46412.80)
RHDE1250
70 +0,075/+0,030
(2.76 +0,0030/+0,0012)
20-0,022/-
0,074
(0.79 -0.0311/-
0.0029)
100 (3.94) 320 (46412.80)
RHDE2500
70 +0,075/+0,030
(2.76 +0,0030/+0,0012)
20-0,022/-
0,074
(0.79 -0.0311/-
0.0029)
100 (3.94) 320 (46412.80)
RHDE4000
85 +0,090/+0,036
(3.35 +0.0035/+0.0014)
25-0,018/-
0,061
(0.98 -0,0007/-
0.0024)
140 (5.51) 320 (46412.80)
