ABB SACE Emax Series User Manual

L2234
L2778
Emax
11/158
Doc. No.
Model
Apparatus
Scale
Page No.
1SDH000460R0002

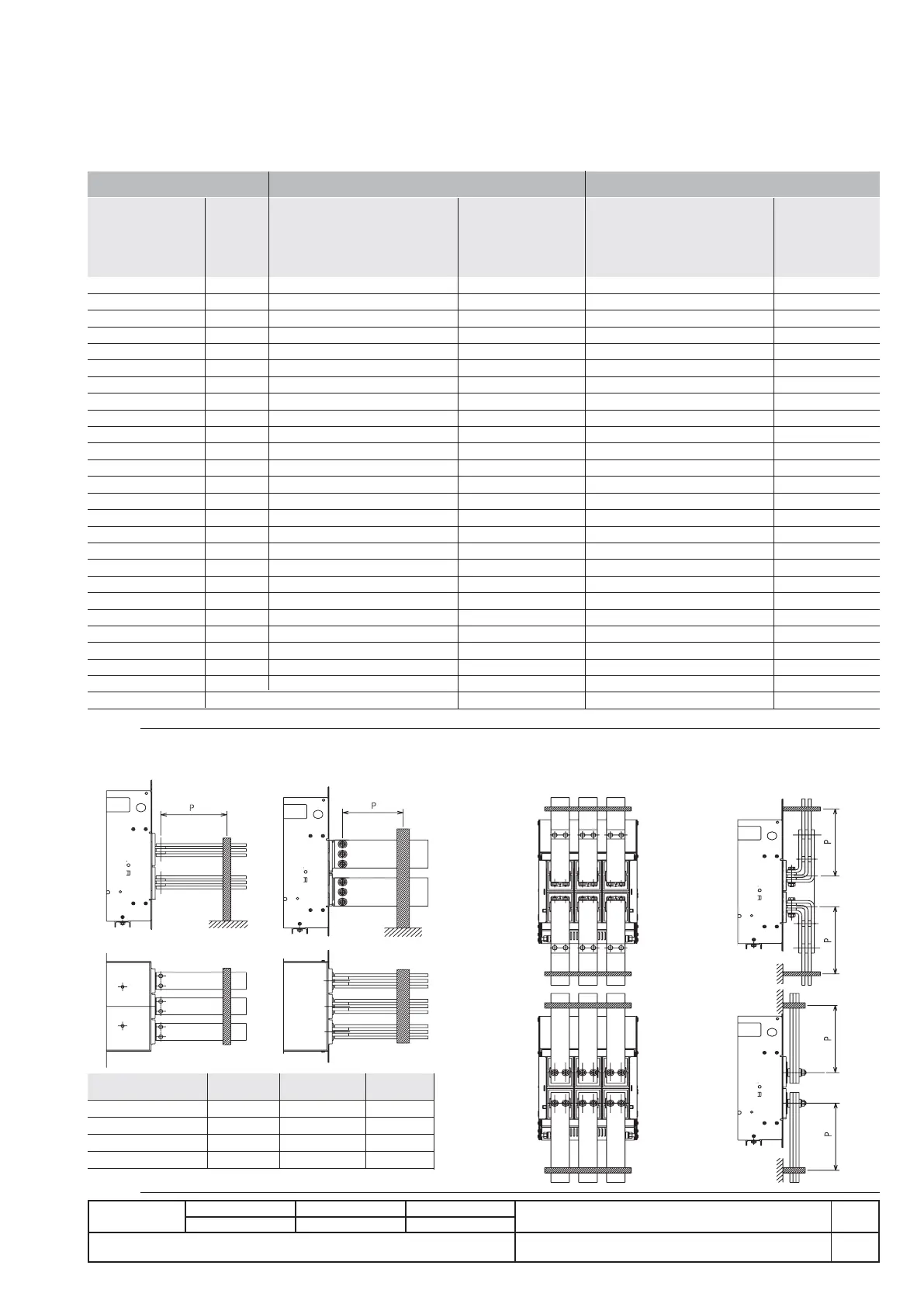

5.1.2 Examples of positioning the connection busbars according to the types of terminals
The connection busbars enable the connection between the terminals of the circuit-breakers and the busbars of the switchgear. Their sizing must
be carefully studied by the switchgear designer. Some examples of possible constructions in relation to the shape and size of the circuit-breaker
terminals are given in this paragraph. The various types of terminals are of constant dimensions for each size of circuit-breaker: it is normally advisable
to exploit the whole contact surface of the terminal, so the width of the connection busbars should be the same as that of the terminal. Different
connection capacities can be obtained by adjusting the thickness and number of busbars in parallel. In some cases, reductions in the width of
the connection in relation to that of the terminal are allowable as shown in the following examples.
Fig. 16
Positioning the first anchoring baffle of the busbars according to the short-circuit current
Anchoring to the switchgear
Fig. 17
FLAT
FRONT
VERTICAL
HORIZONTAL
P E1-E2 E3-E4-E6 E1-E6
HORIZONTAL 250 150 –
VERTICAL 250 150 –
FRONT – – 250
FLAT – – 250
Vertical terminals Horizontal and front terminals
Circuit-breaker Iu [A] Continuous current- Busbar cross-section Continuous current- Busbar cross-section
carrying capacity carrying capacity
[A] [mm
2
] [A] [mm
2
]
35 °C 45 °C 55 °C 35 °C 45 °C 55 °C
E1B/N 08 800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E1B/N 10 1000 1000 1000 1000 1x(80x10) 1000 1000 1000 2x(60x8)
E1B/N 12 1250 1250 1250 1250 1x(80x10) 1250 1250 1200 2x(60x8)
E1B/N 16 1600 1600 1600 1500 2x(60x10) 1550 1450 1350 2x(60x10)
E2S 08 800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E2N/S 10 1000 1000 1000 1000 1x(60x10) 1000 1000 1000 1x(60x10)
E2N/S 12 1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E2B/N/S 16 1600 1600 1600 1600 2x(60x10) 1600 1600 1530 2x(60x10)
E2B/N/S 20 2000 2000 2000 1800 3x(60x10) 2000 2000 1750 3x(60x10)
E2L 12 1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E2L 16 1600 1600 1600 1500 2x(60x10) 1600 1500 1400 2x(60x10)
E3H/V 08 800 800 800 800 1x(60x10) 800 800 800 1x(60x10)
E3S/H 10 1000 1000 1000 1000 1x(60x10) 1000 1000 1000 1x(60x10)
E3S/H/V 12 1250 1250 1250 1250 1x(60x10) 1250 1250 1250 1x(60x10)
E3S/H/V 16 1600 1600 1600 1600 1x(100x10) 1600 1600 1600 1x(100x10)
E3S/H/V 20 2000 2000 2000 2000 2x(100x10) 2000 2000 2000 2x(100x10)
E3N/S/H/V 25 2500 2500 2500 2500 2x(100x10) 2500 2450 2400 2x(100x10)
E3N/S/H/V 32 3200 3200 3100 2800 3x(100x10) 3000 2880 2650 3x(100x10)
E3L 20 2000 2000 2000 2000 2x(100x10) 2000 2000 1970 2x(100x10)
E3L 25 2500 2500 2390 2250 2x(100x10) 2375 2270 2100 2x(100x10)
E4H/V 32 3200 3200 3200 3200 3x(100x10) 3200 3150 3000 3x(100x10)
E4S/H/V 40 4000 4000 3980 3500 4x(100x10) 3600 3510 3150 6x(60x10)
E6V 32 3200 3200 3200 3200 3x(100x10) 3200 3200 3200 3x(100x10)
E6H/V 40 4000 4000 4000 4000 4x(100x10) 4000 4000 4000 4x(100x10)
E6H/V 50 5000 5000 4850 4600 6x(100x10) 4850 4510 4250 6x(100x10)
E6H/V 63 6300 6000 5700 5250 7x(100x10) - - - -
