5.3.2 Withdrawable circuit-breaker

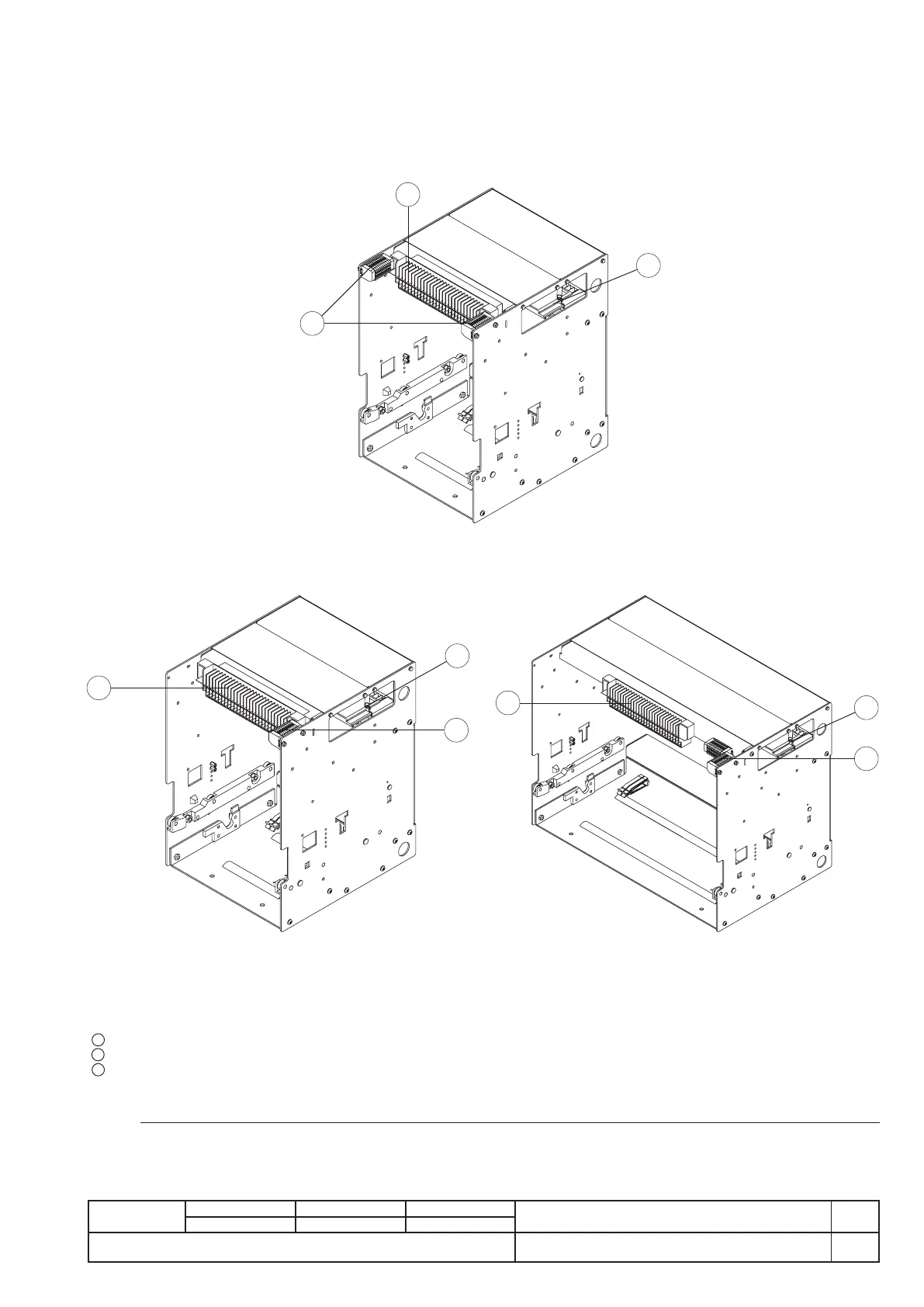

For connection of the moving part to the auxiliary circuits, a connection with sliding contacts is available on the fixed part (see figure), identified
by code X on the electrical circuit diagram.
The terminals of the fixed connector are immediately accessible when the compartment door is open.
Furthermore a terminal box identified by code XF is available for connecting the position contacts of the moving part in relation to the fixed part.
The connector and terminal box have screw terminals.
E1 - E2 - E3 - E4 - E6
5 contacts in position
E4 - E6
10 contacts in position
E1 - E2 - E3
10 contacts in position
Caption
1 Sliding contacts (X)
2 Terminal box for position contacts (XF)
3 Position contacts
Fig. 20
