ABB SACE Emax Series User Manual

L2234
Emax
148/158
Doc. No.
Model
1SDH000460R0002
Apparatus
Scale
Page No.
L2778
E1
180 180
E2
180 180
E3
234 234
E4
270 360
E4/f
- 360
E6
360 486
E6/f
- 486

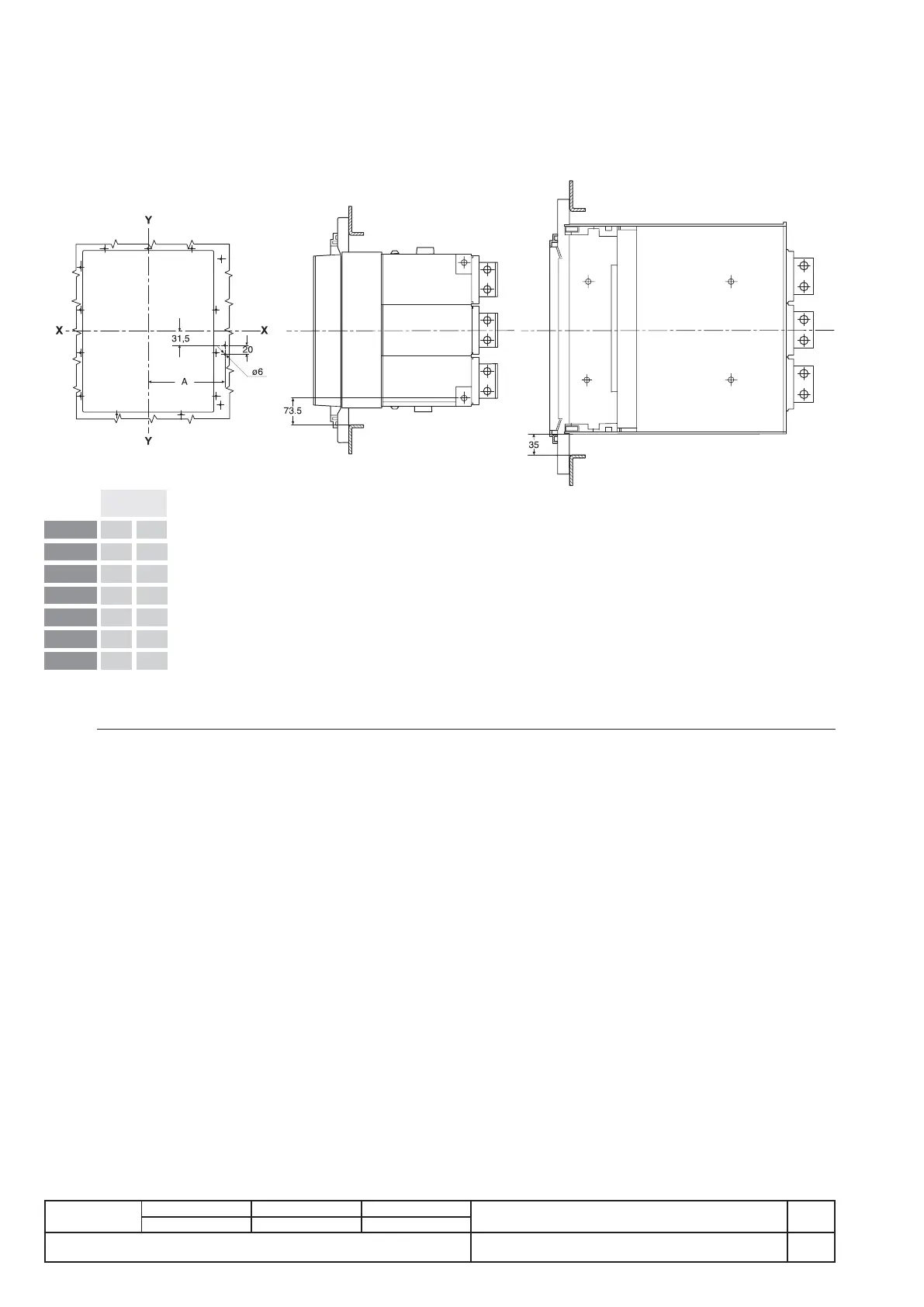

Fixed version
Withdrawable version
Minimum distance between the circuit-breaker and the switchgear wallDoor drilling
Compartment door mechanical lock
Fig. 47
A
3 POLES 4 POLES

ABB SACE Emax Series Specifications

General

Frequency	50/60 Hz
Type	Air Circuit Breaker (ACB)
Breaking Capacity	Up to 150kA
Number of Poles	3P, 4P
Standards	IEC 60947-2
Mounting	Fixed
Communication	Modbus, Profibus
Trip Unit	Electronic (PR122, PR123, PR332, PR333, PR332-T, PR333-T)
