5 - Changing parameters and commands

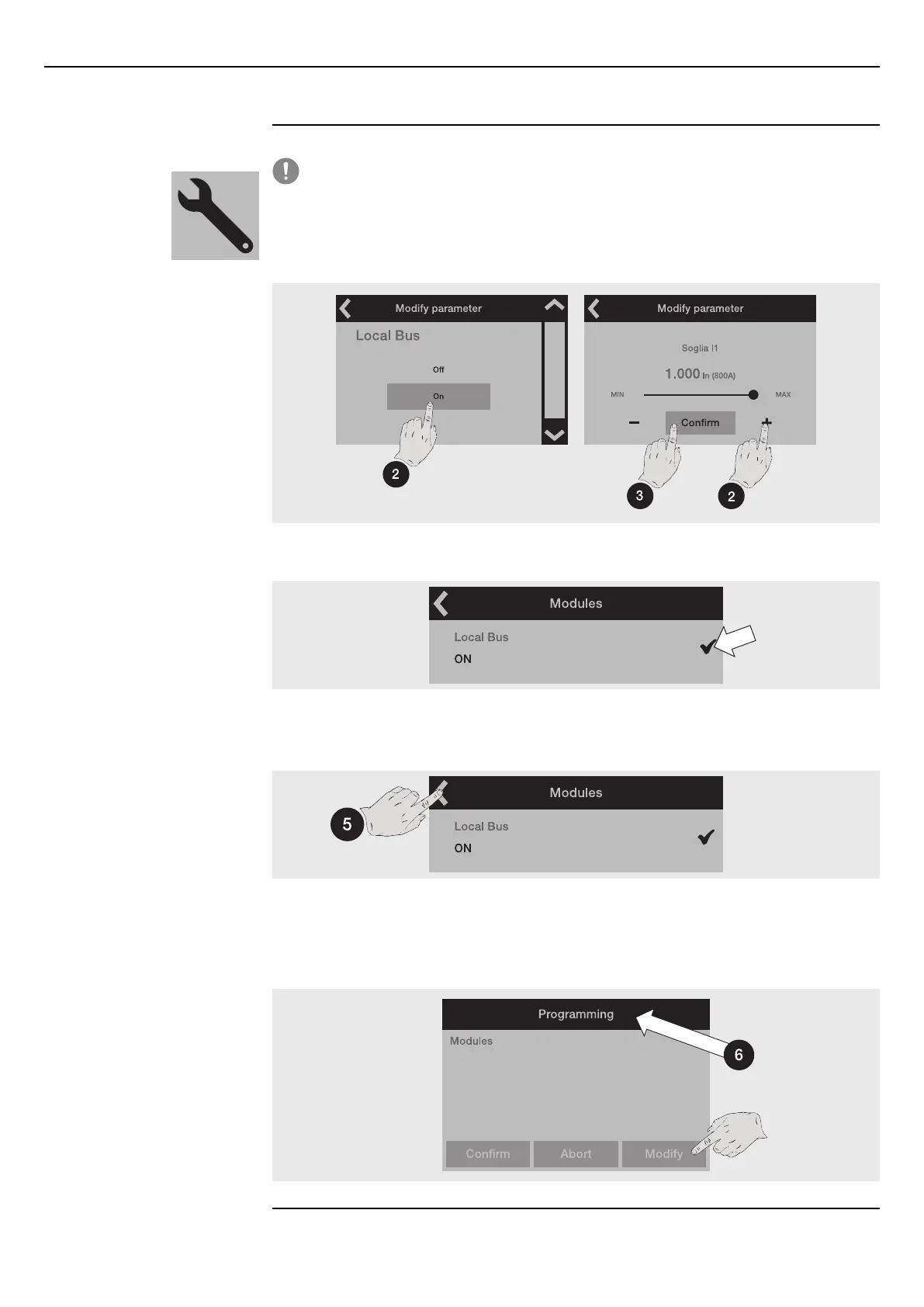

Changing parameters
Comply with the following procedure to change one or more parameters:
IMPORTANT: parameters can be changed with Trip unit in the Local mode and in the
absence of timing alarms
• 1. Select parameter and enter PIN if required
• 2. Select new value from list or with the aid of page commands
• 3. Select Confirm command if present:
Figure 22
• 4. When the new value has been selected/confirmed, the menu of the parameter is accessed automatically,
the changed item presents the new value in light blue and a tick to confirm:
Figure 23
Now proceed by confirming the programming (Step 5) or access other parameters if further changes
are required (Step 1).
• Select the arrow at the top left to access the top menu until the Programming page appears:
Figure 24
• 6. Various commands are enabled in the programming page:
• • Confirm to validate the new parameters and conclude the programming procedure
• • Abort to interrupt the save data process
• • Modify to go back to the menus and change the parameter or others
Figure 25
