ABB SafeRing User Manual

17

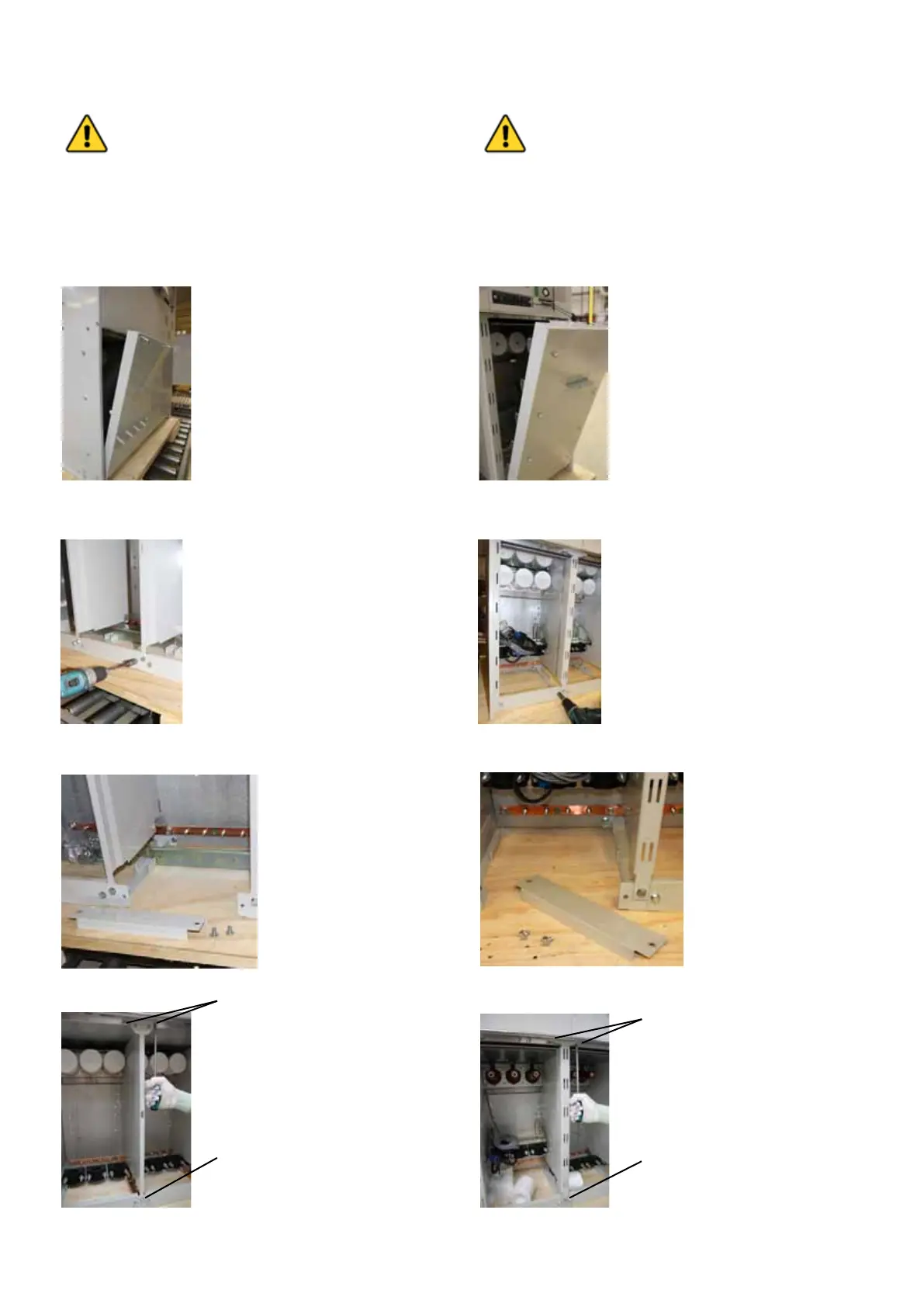

8.1 STANDARD CABLE COMPARTMENT
Removal of cable cover:
1. Loosen the screws on the cable cover, pull out and lift
cover off.
2. Removal of front section.
3. Front section removed.
4. The mid-panel can be removed by unscrewing Ax2 and B.
8.2 ARC PROOF CABLE COMPARTMENT
Removal of cable cover:
1. Lift handle to remove the cable cover, pull out and lift
cover up.
2. Removal of front section.
3. Front section removed.
4. The mid-panel can be removed by unscrewing Ax2 and B.
8. CABLE COMPARTMENT
CAUTION
In case of interlocked cable compartment, cover
can be opened / closed only when earthing switch
is in closed position.
NOTE
The tools required for installation and maintenance
of the switchgear are specified in the tool list in
chapter 20.6.
A
B B
A

ABB SafeRing Specifications

General

Rated voltage	Up to 24 kV
Insulation type	SF6 gas
Application	Secondary distribution networks
Frequency	50 Hz, 60 Hz
Operating temperature range	-25°C to +40°C
Dimensions	Varies
Enclosure	Metal enclosure
Protection degree	IP67
