2.1.4 SAM600-TS for time synchronization and IEC 61850 gateway
GUID-A3F698B4-86EA-40E7-AC3E-5D7816A8CEF1 v1
IEC18000515 V1 EN-US

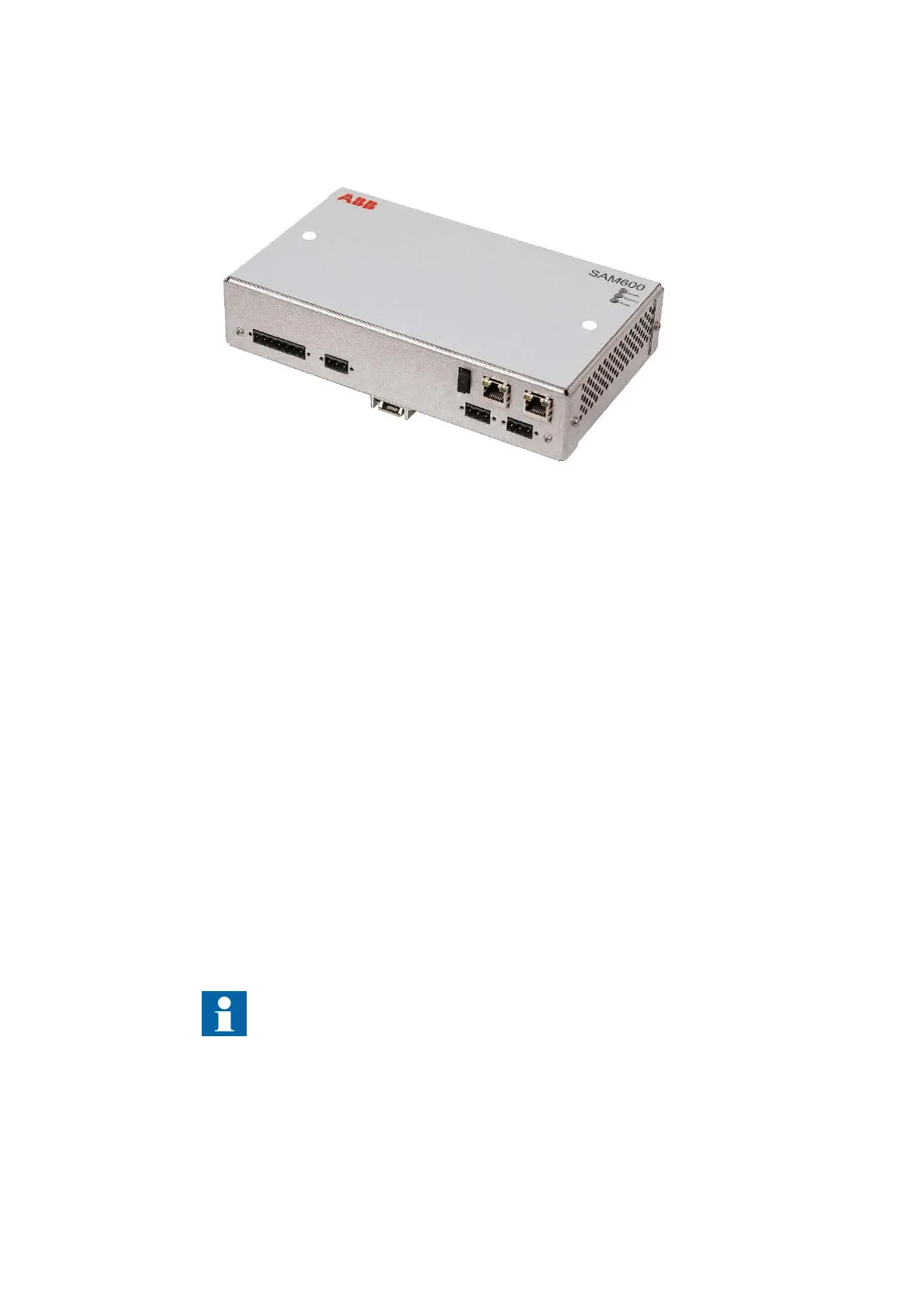

Figure 4: SAM600-TS module
A SAM600-TS module provides communication redundancy and time synchronization. The
module also has a hardware watchdog functionality.
A SAM600 system can run in a free-running mode or synchronize with IEEE 1588 (profile IEC/
IEEE 61850-9-3) or 1PPS signal. Conversely, SAM600 can synchronize through SAM600-TS other
merging units or IED devices through the five 1PPS outputs available or through the module’s
connection to the process bus.
A SAM600-TS module can be configured to provide IEC 61850 access points on each physical
port that is not used for SAM600 system bus connection. Access points can be redundant or
single link in the following combinations:
• Up to five single link access points; one of them can support IEEE 1588 access points.
• One PRP redundant access point and up to 3 single link access points. Either the PRP
access point or one of the single link access points can support IEEE 1588 access points.
• One HSR redundant access point and up to 3 single link access points. Either the HSR
access point or one of the single link access points can support IEEE 1588 access points.
Access points of SAM600-TS modules can (externally) receive and publish IEC/UCA
61850-9-2LE streams from and to the SAM600 system to bay level protection and control
devices.
A SAM600-TS module is optional in a SAM600 system. Up to three SAM600-TS modules can be
chained into a SAM600 system.
Connectors X106 and X107 on the SAM600-TS module can not be used for
SAM600 system bus connection. These two connectors can only be configured
as IEC 61850 access points.
Section 2 1MRK 511 434-UEN B
SAM600 Process Bus I/O System
8 SAM600 Process Bus I/O System
Operation Manual
