TERR A DC WA LLBOX
2023 -06-20 25/39

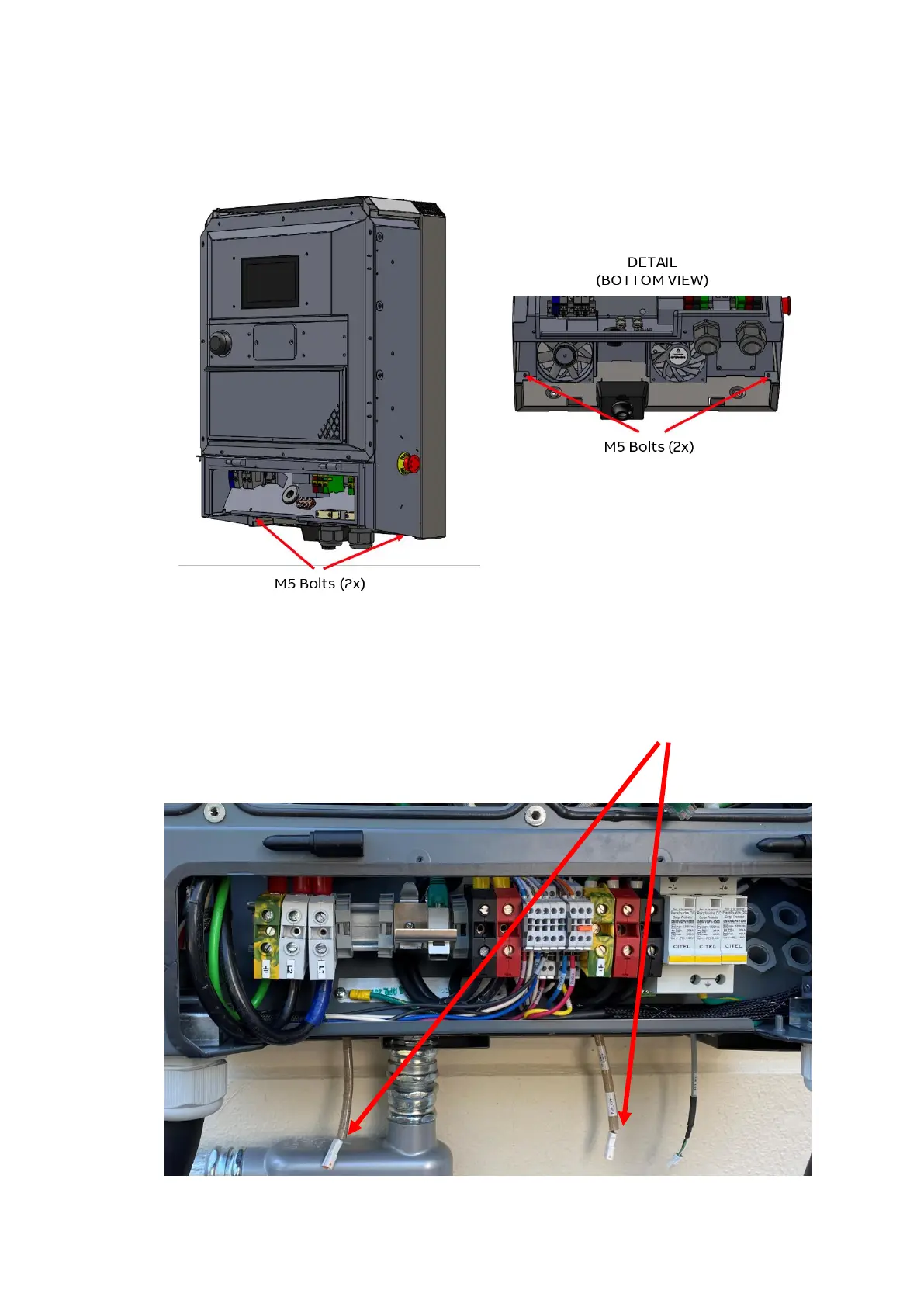

6. Tighten the two M5 bolts on the lower side of the unit. Pay attention to the internal fan power
supply cable. CAUTION: DO NOT SET SMALL OBJECTS ON TOP MESH COVER, ITEMS
MAY FALL INTO THE COOLING FINS OR FAN COMPONENTS.
7. Let the auxiliary power supply cable pass through the central gland and tighten it.
8. IMPORTANT, connect both of the cooling fans to their power connections before proceeding to
close the covers. There are two connectors one for the left fan and one for the right fan.
