ABB Terra 54 Series User Manual

TERR A 54 / 54 H V CHAR G ER
2018- 10- 03 24/40

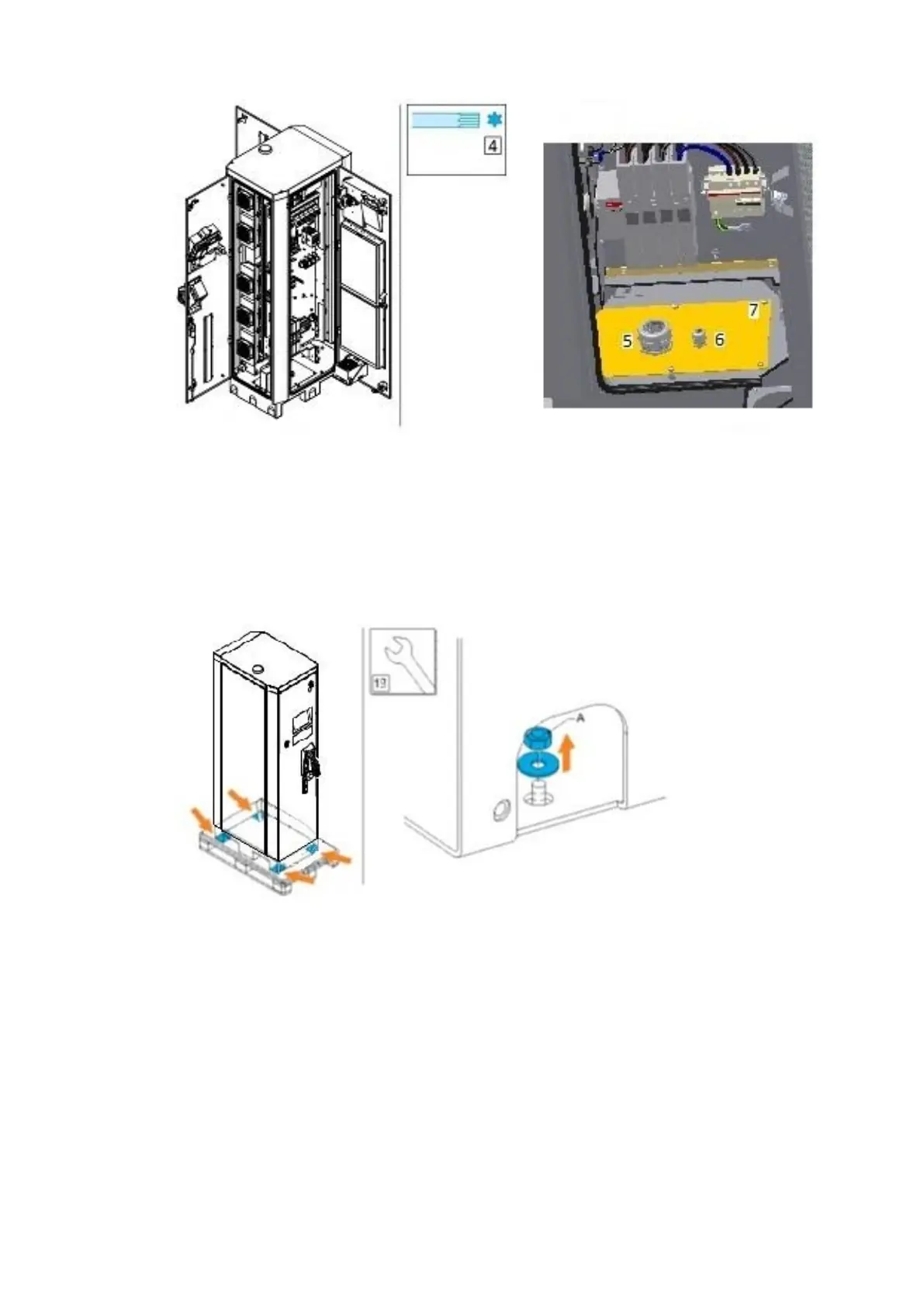

3. Open the cabinet front door (D).
4. Open the side door (E) via the front door.
5. Loosen and remove the cable gland (F) for the power cable.
6. Loosen and remove the cable gland (G) for the Ethernet cable (if required).
7. Put the cable gland(s) in a safe location. It (they) will be re-installed later.
8. Close the doors, starting with the side door and subsequently the front door.
9. Remove the nuts (A) at the four corners.
5.3 Move cabinet to position
5.3.1 Options
There are two options to move the Terra 54 from the delivery truck to the location.
• Move cabinet with hoist on Page 25.
• Move cabinet with forklift truck on Page 26.

ABB Terra 54 Series Specifications

General

Output Power	50 kW
Display	7-inch touchscreen
Network Connectivity	Ethernet, Wi-Fi, 4G
Enclosure Rating	IP54
Charging Standards	CHAdeMO, CCS
Communication Protocols	OCPP 1.6
Input Voltage	400 V AC
Current	125 A
