TERR A 54 / 54 H V CHAR G ER
2018- 10- 03 27/40
C Cables

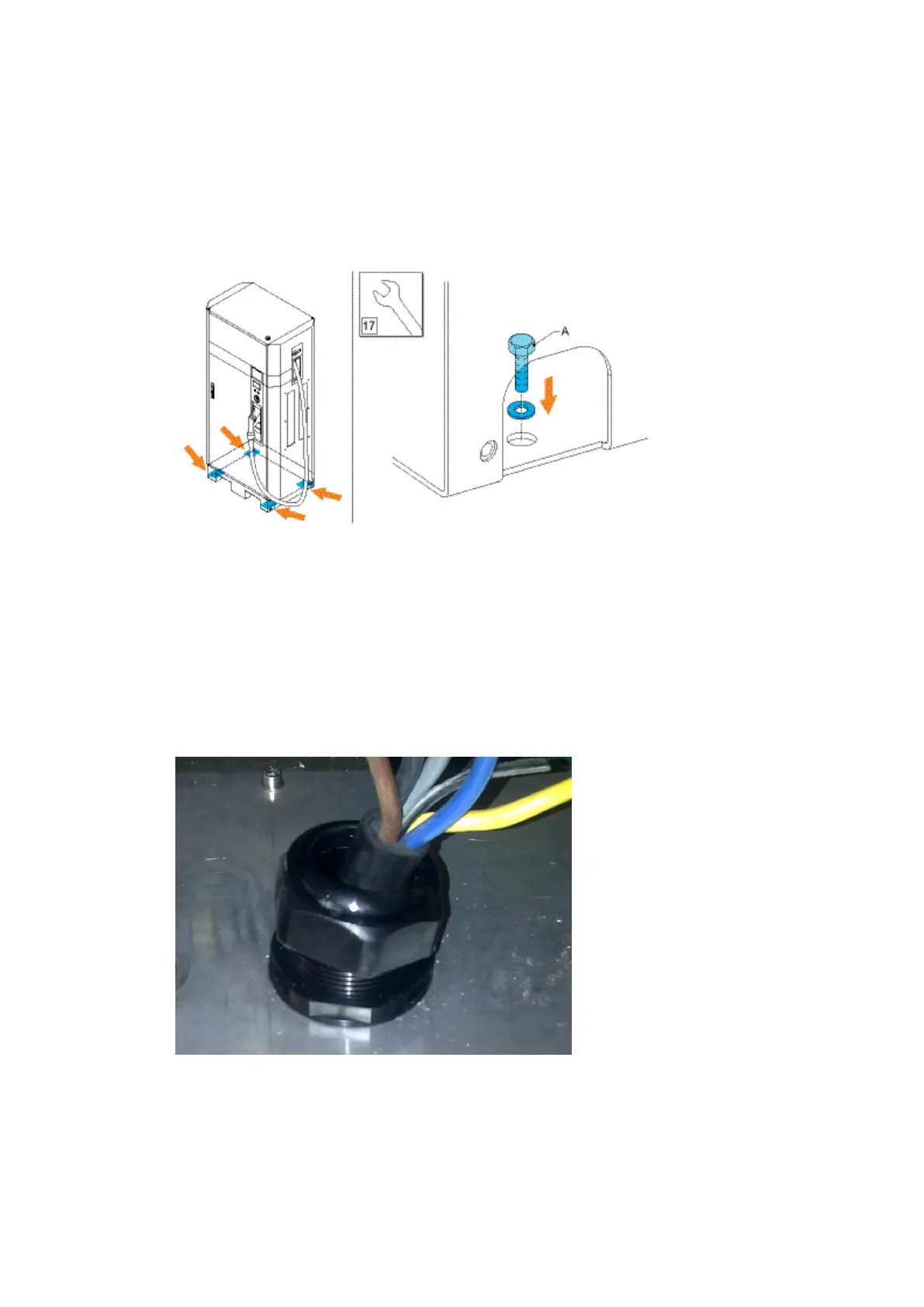

5.4.2 Mounting the cabinet
1. Carefully lower the Terra 54 onto its location.
2. Make sure not to entrap the cable(s).
3. Make sure that the cabinet is aligned to the tapped holes.
4. Insert bolts (A) and washers at the four corners and in the middle of the sides.
5. Tighten the bolts.
5.4.3 Install cable gland(s)
The maximum diameter of the grid cable is 45 mm.
The minimum diameter of the grid cable is 34 mm with the standard fitted cable gland insert.
Use foam or shrinking glands to close the remaining holes to prevent insects and small ani-
mals to enter the cabinet.
1. Slide the cable gland(s) over the cable(s).
2. Push the cables back through the gland plate, until sufficient cable length is left to reach
the cable terminals, make sure the PE cable is longer than the other cables.
3. Tighten the rings of the gland(s).
