ABB TPL85-B14 User Manual

134 pages

To Next Page

To Previous Page

Operation Manual / TPL85-B14/-B15/-B16

Spare parts

View of turbocharger with part numbers

12.2

Page 128

May 2016 HZTL2491_EN Revision B

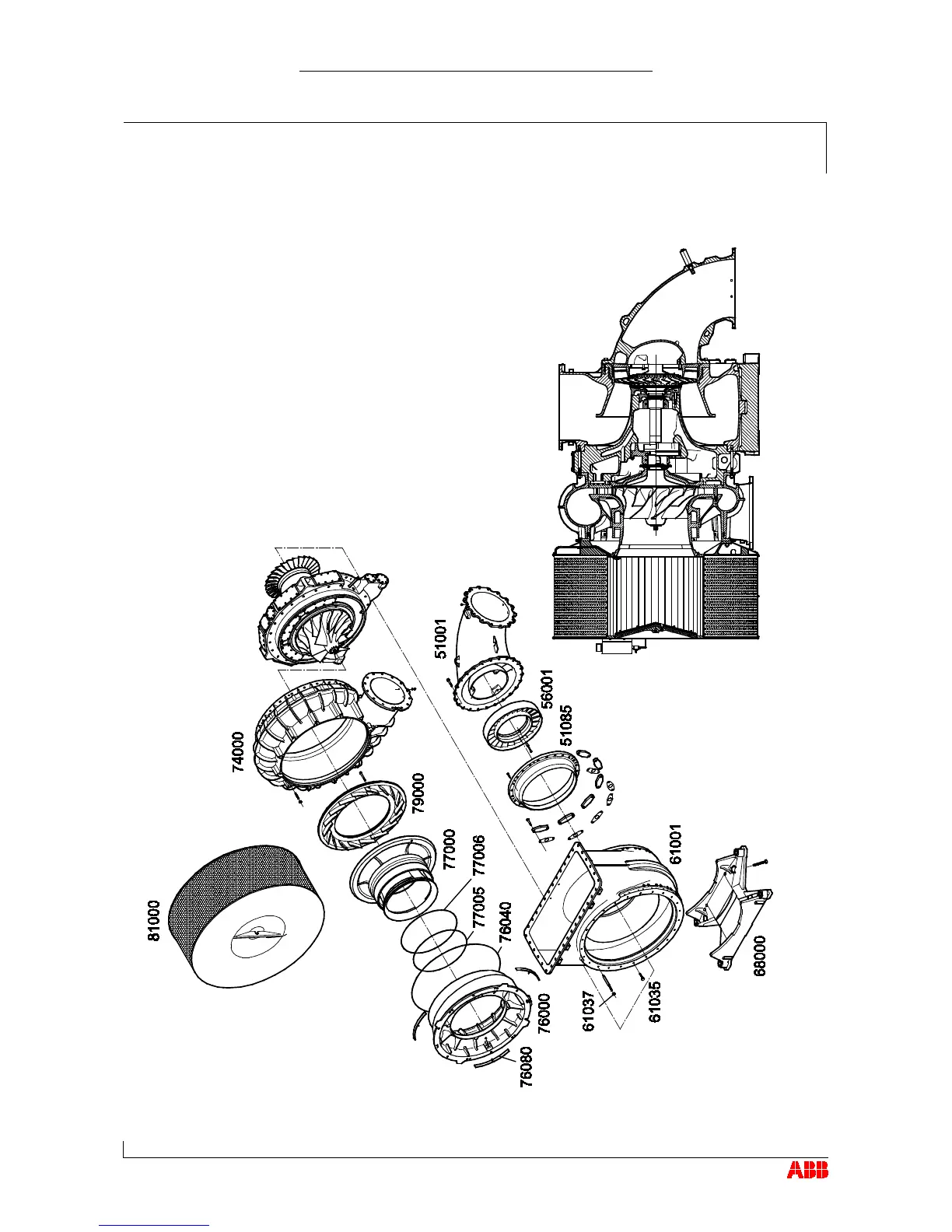

View of turbocharger with part numbers

12.2

Table of Contents3
Preliminary Remarks7
Layout and Function8
Intended Use of the Turbocharger10
Storage of New Turbochargers and Spare Parts11
Essential Information13
Symbols and Definitions15
Turbocharger Rating Plate16
Contact Information18
- Safety19
Definition of Mandatory Signs20
Warning Plates on the Turbocharger21
Safe Operation and Maintenance22
Periodic Checking of the Pressure Vessel29
Lifting Loads30
- Start-Up31
Inspection Work34
Commissioning after Taking out of Operation36
Operation37
Servicing Work39
Expected Exchange Intervals42
Speed Measurement44
Underpressure Measurement on Filter Silencer47
Flexible Cut-Out49
Stopping the Engine50
- Maintenance51
Cleaning the Filter Silencer52
Changing the Filter Strip on the Filter Silencer Casing57
Cleaning the Compressor During Operation59
Cleaning Turbine Blades and Nozzle Ring in Operation65
Malfunctions When Starting79
Surging of the Turbocharger80
Malfunctions During Operation81
Malfunctions When Stopping84
Speed Measurement System85
- Removal and Installation87
Remove the Turbocharger88
Installing the Turbocharger90
- Disassembly and Assembly91
Module Weights93
Silencer Casing95
Removing and Installing the Filter Silencer100
Axial Clearance101
Removing Internal Part of Compressor Casing102
Removing Gas Inlet Casing106
Fitting Gas Inlet Casing107
Fitting Internal Part of Compressor Casing108
Dry-Cleaning Device112
Table of Tightening Torques114
- Short-Term Turbocharger Shut-Down117
Locking the Rotor118
Shutting off Inlets and Outlets122
Storing Turbocharger123
Taking out of Operation for more than 12 Months124
- Disposing of Turbocharger Components125
Spare Parts127
View of Turbocharger with Part Numbers130
View of Cartridge Group with Part Numbers132

Other manuals for ABB TPL85-B14
