8.10

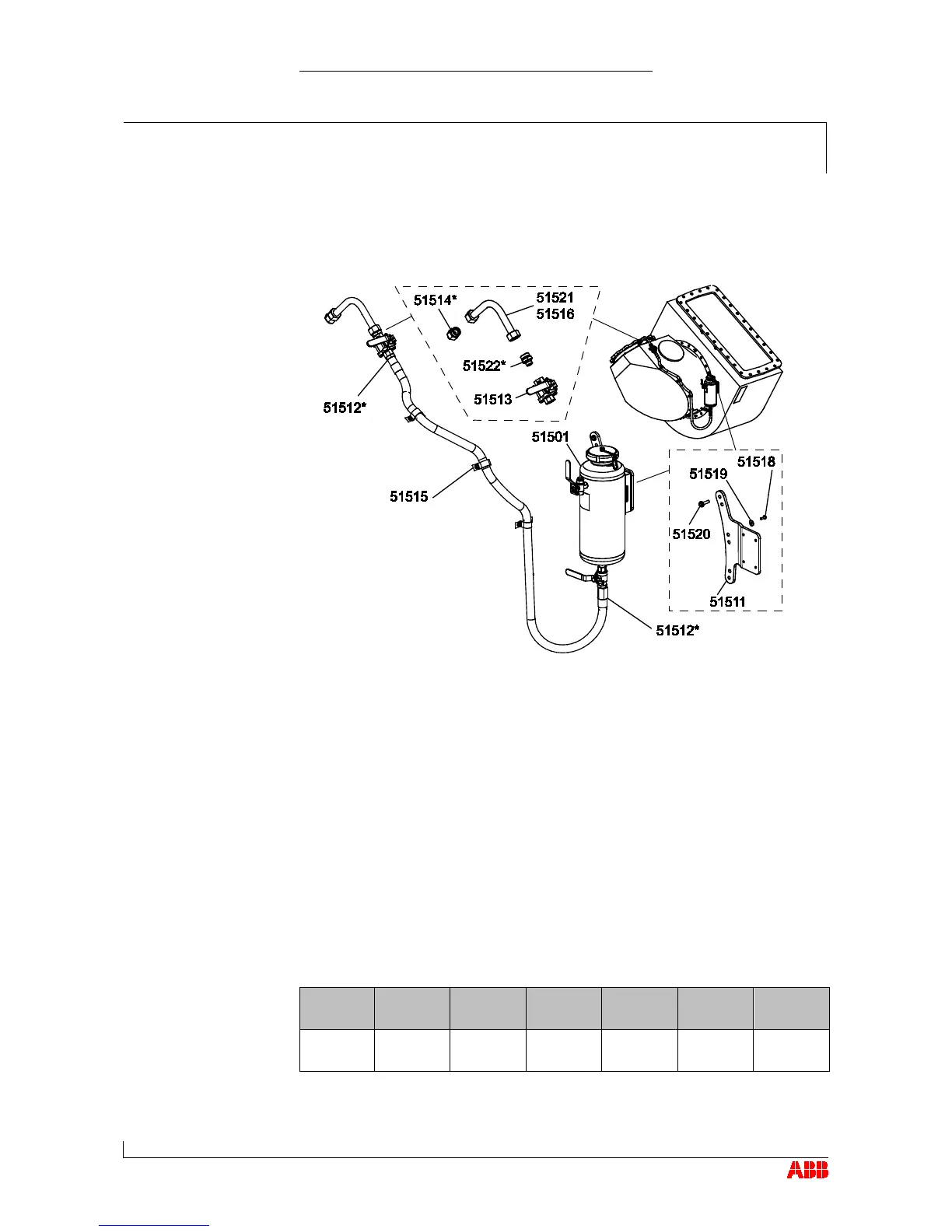

The assembly of the dry-cleaning device is described below.
Brush the thread of the parts marked with *) with high-temperature
grease.
Fit the connecting plate (51511) onto the pressure vessel (51501) with
hexagon-head screws (51518) and washers (51519).
Mount the connecting plate (51511) onto the gas outlet casing with
hexagon-head screws (51520).
Fit the screw insert (51514*) onto the gas inlet casing.
Fit the straight screw-in coupling (51522*) on the ball valve (51513)
and the pipe elbow (51521).
Fit the pipe elbow (51521) onto the screw insert (51514*).
Fit the hose (51512*) on the pressure vessel (51501) and on the ball
valve (51513).
Fit clamps (51515) on the gas inlet casing.
