8
ENGLISH

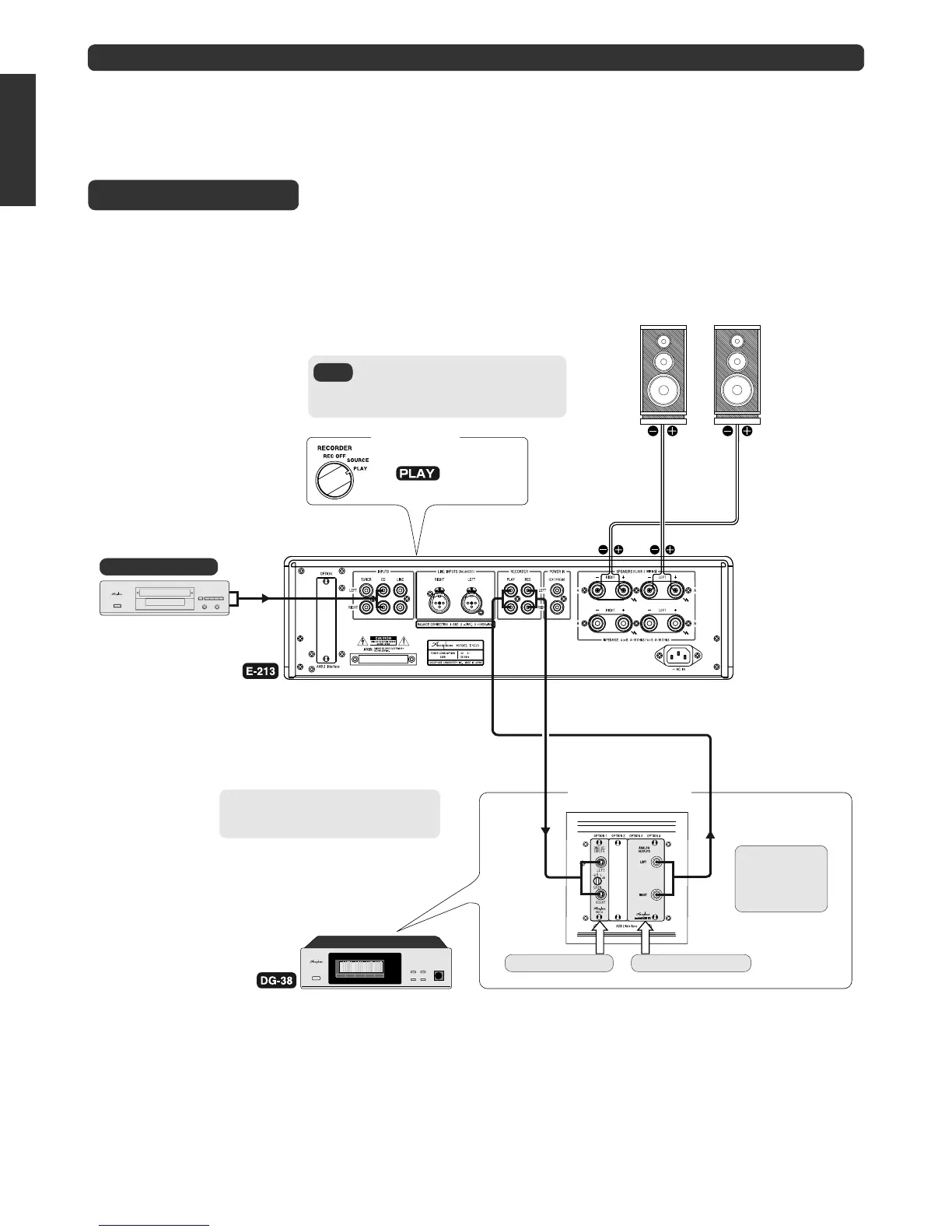

Connection Examples
Left speaker
Right speaker
Set RECORDER selector
to .
Analog
output
When the RECORDER selector is set to
SOURCE or REC OFF, the DG-38 is
taken out of the signal path which may
cause a sudden increase in volume.
NOTE:
Input board: AI2-U1 Output board: AO2-U1
✽ Set INPUT
SELECTOR
of DG-38 to
“Analog in-1”.
Use audio cables with RCA-type plugs
E-213 REC Ù AI2-U1
E-213 PLAY Ù AO2-U1
Source component
Install the AI2-U1 and AO2-U1 in the DG-38 option slot.
✽ Set switch on AI2-U1 board to 96 kHz.
✽ Select E-213 source input with
the INPUT SELECTOR.
Playback With DG-38 Connected
The Digital Voicing Equalizer DG-38 can be connected to the E-213, allowing highly precise sound field compensation during playback
of program sources.
m An analog input board and analog output board must be installed in the option board slots of the DG-38.
m For details on connection and operation of the DG-38, please refer to the instruction manual of the DG-38.
DG-38 rear panel
The DG-38 is connected to the RECORDER jacks of the E-213
Front panel
To Next Page
