MACHINE DISASSEMBLY
AND ASSEMBLY
3.1 Disassembly Procedures

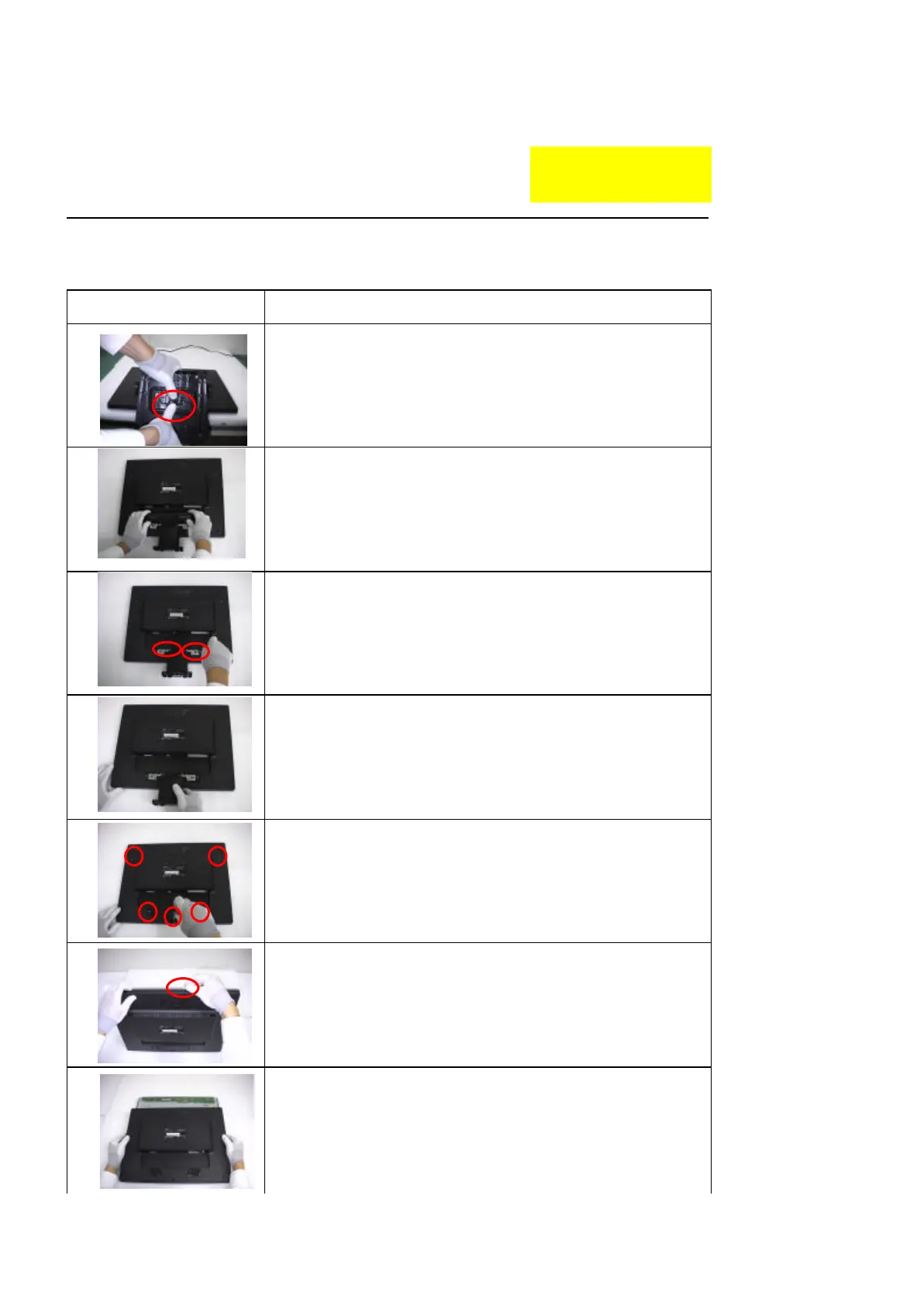

Picture Description
Push the hooks and stand bottom away
Remove Hinge Cover
Loosen and remove 6 screws to remove Stand Assay
Remove Stand Assay
Loose and remove 5 screws.
Separate Bezel hooks to take Bezel and Rear Cover
Apart.
Lift up Rear Cover
