Acer AL2671W Service Guide

50 Chapter 3
9. Remove one screw holding the cable then remove the cable.

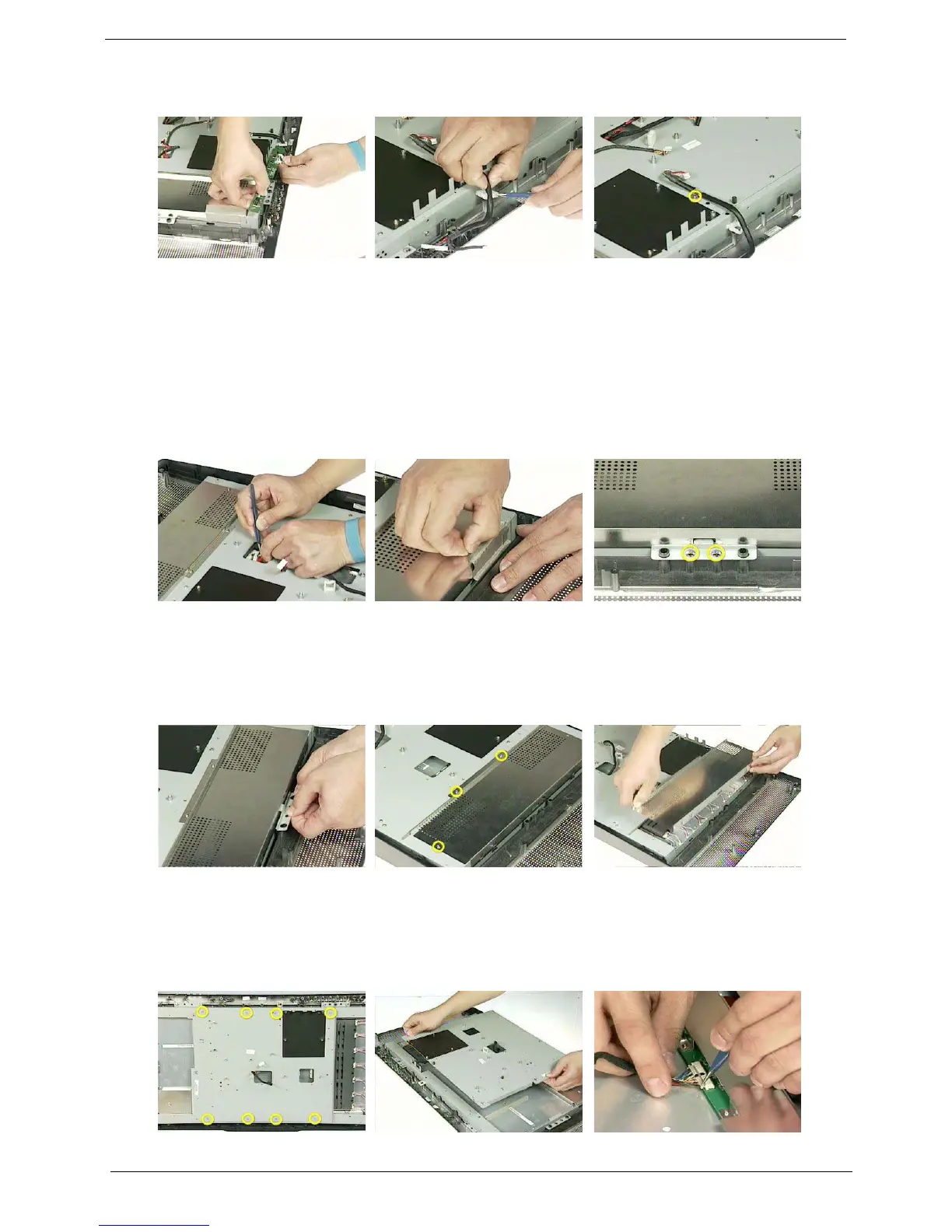

Removing the LCD Module
1. Disconnect the inverter cable.
2. Tear off the tape on the inverter shielding.
3. Remove the two screws holding the LCD right bracket.
4. Remove the LCD right bracket.
5. Remove the three screws holding the inverter shielding.
6. Detach the inverter shielding carefully.
7. Remove the eight screws that secure the PCB tray.
8. Detach the PCB tray as shown.
9. Then disconnect the cable (main board to LCD).

Acer AL2671W Specifications

Display

resolution	1280 x 768 pixels
brightness	450 nits
contrast ratio	600:1
display colors	16.7 M
viewing angle	H:170 ; V:170
response time	16 ms (gray to gray)

Power

input voltage	100V to 240V AC
max power consumption	150 W
power saving mode consumption	5 W

Ports & Interfaces

AV1	RCA for CVBS, S-video, Audio R/L
AV2	RCA for CVBS, S-video, Audio R/L
AV3 (front)	RCA for CVBS, Audio R/L
Component1	Component (YCbCr/PbPr), Audio R/L
Component2	Component (YCbCr/PbPr), Audio R/L
PC D-sub	Yes
DVI-D (HDCP)	Yes
PC audio-in	Yes
audio-out	Yes
headphones	Yes

Audio System

3D surround	Yes
speakers	5 W + 5 W
SRS WOW	Yes

Weight and Dimensions

dimensions	828 x 484 x 248 mm
swivel angle	+/- 20 degrees
weight	14 kg / 30 lbs
