Acer AL2671W Service Guide

8 Chapter 1

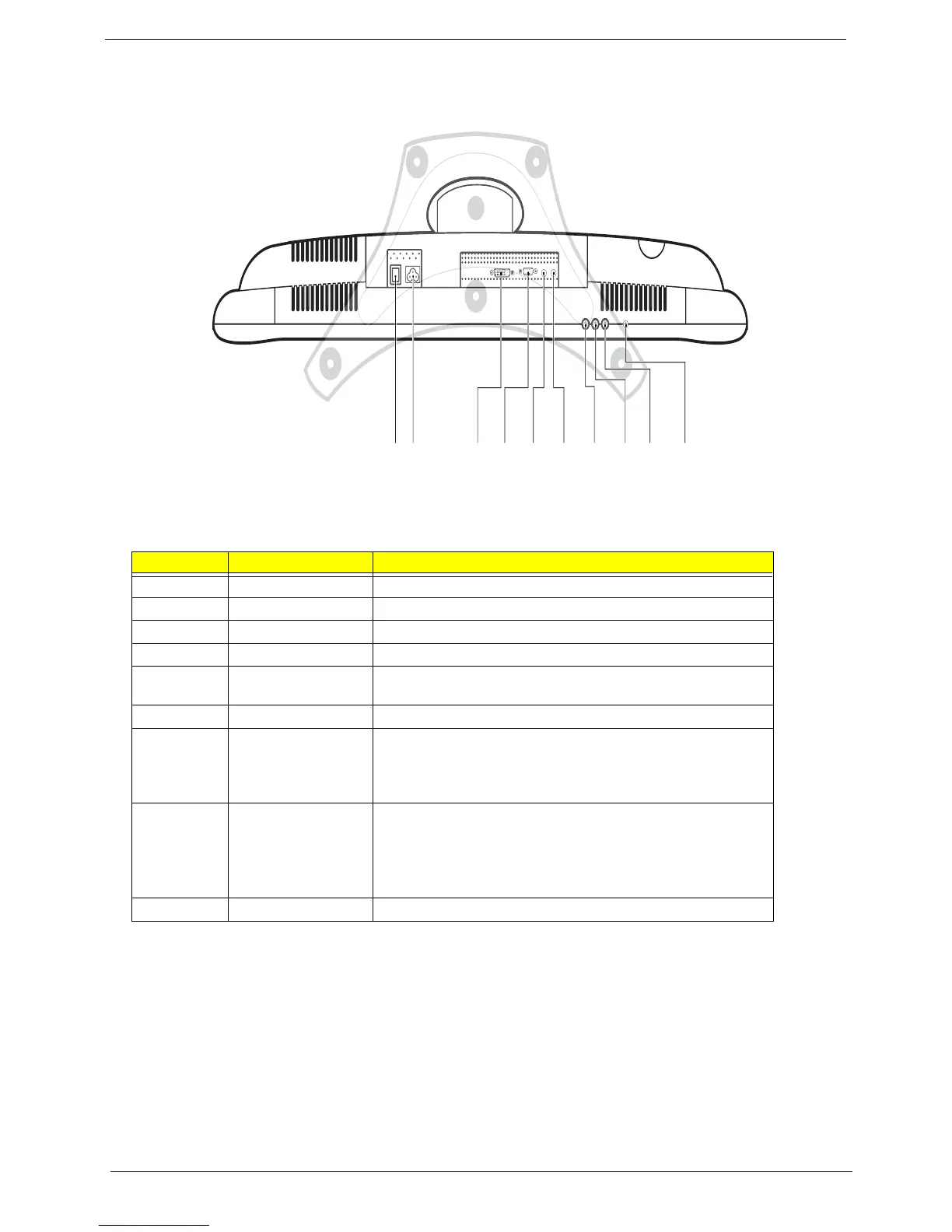

Bottom view
# Item Description
1a AC Switch Turns AC in power ON/OFF
1b AC In Connects to a power source
2a DVI-D In Connects to PC DVI Out
2b D-Sub In Connects to PC VGA Out
2c Audio In In PC mode, connect to audio output of your PC or other devices
with DVI or VGA connector
2d Audio Out Connects to another speaker
3a/b AV3/Audio In (R/L)
AV3/Audio Out (R/L)
Connect to the audio output (R/L) of your camera, camcorder or
video game
In TV mode, connect the audio (R/L) input of your VCR or PVR to
record TV programs (Please set AV3 to “Out” in OSD).
3c AV3/Video In
AV3/Video Out
Connect the composite output of your camera, camcorder or video
game.
In TV mode, connect the composite input of your VCR or PVR to
record TV programs (Please set AV3 to “Out” in OSD).
4 Headphone Connect headphone
        

Acer AL2671W Specifications

Display

resolution	1280 x 768 pixels
brightness	450 nits
contrast ratio	600:1
display colors	16.7 M
viewing angle	H:170 ; V:170
response time	16 ms (gray to gray)

Power

input voltage	100V to 240V AC
max power consumption	150 W
power saving mode consumption	5 W

Ports & Interfaces

AV1	RCA for CVBS, S-video, Audio R/L
AV2	RCA for CVBS, S-video, Audio R/L
AV3 (front)	RCA for CVBS, Audio R/L
Component1	Component (YCbCr/PbPr), Audio R/L
Component2	Component (YCbCr/PbPr), Audio R/L
PC D-sub	Yes
DVI-D (HDCP)	Yes
PC audio-in	Yes
audio-out	Yes
headphones	Yes

Audio System

3D surround	Yes
speakers	5 W + 5 W
SRS WOW	Yes

Weight and Dimensions

dimensions	828 x 484 x 248 mm
swivel angle	+/- 20 degrees
weight	14 kg / 30 lbs
