Acer AL2671W Service Guide

Chapter 6 87

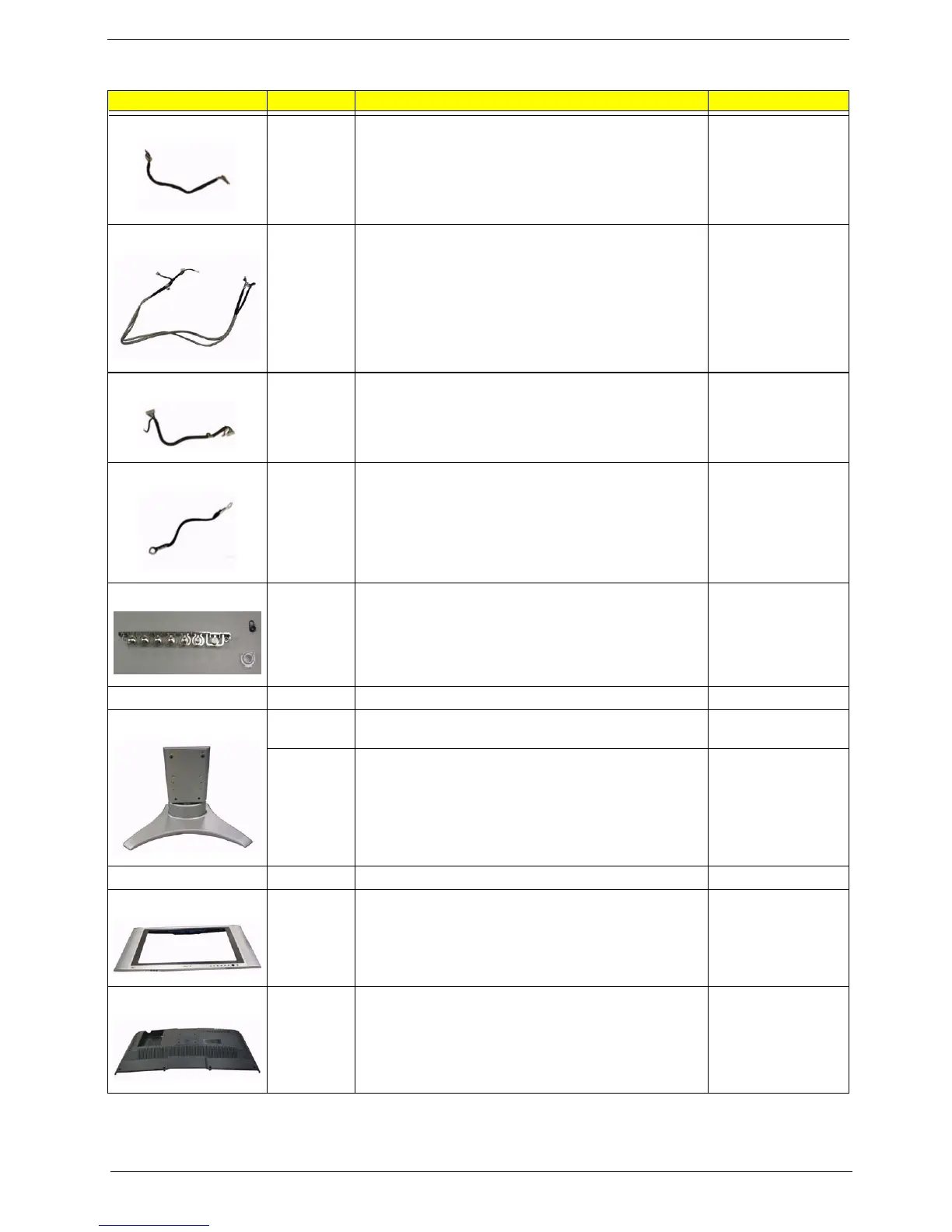

24 CABLE - MB TO LCD 50.M01V7.007
18 CABLE - MB TO AV3 6P/4P 50.M01V7.009
25 CABLE - MB TO BUTTON BOARD (13P/10P) 50.M01V7.009
16 CABLE - IB TO GROUND 50.M01V7.011
11 FUNCTION BUTTON 42.M01V7.002
9 STAND SWIVEL ASSY (Please note that the image
includes stand swivel assy and stand base assy)
60.M01V7.001
12 STAND BASE ASSY(Please note that the image includes
stand swivel assy and stand base assy)
60.M01V7.002
30 TUNER BOX COVER 42.M01V7.001
NS FRONT COVER 60.M01V7.003
29 BACK COVER 60.M01V7.004
Picture Partname (Description) Part Number

Acer AL2671W Specifications

Display

resolution	1280 x 768 pixels
brightness	450 nits
contrast ratio	600:1
display colors	16.7 M
viewing angle	H:170 ; V:170
response time	16 ms (gray to gray)

Power

input voltage	100V to 240V AC
max power consumption	150 W
power saving mode consumption	5 W

Ports & Interfaces

AV1	RCA for CVBS, S-video, Audio R/L
AV2	RCA for CVBS, S-video, Audio R/L
AV3 (front)	RCA for CVBS, Audio R/L
Component1	Component (YCbCr/PbPr), Audio R/L
Component2	Component (YCbCr/PbPr), Audio R/L
PC D-sub	Yes
DVI-D (HDCP)	Yes
PC audio-in	Yes
audio-out	Yes
headphones	Yes

Audio System

3D surround	Yes
speakers	5 W + 5 W
SRS WOW	Yes

Weight and Dimensions

dimensions	828 x 484 x 248 mm
swivel angle	+/- 20 degrees
weight	14 kg / 30 lbs
