Jumper and Connector Locatio
ns
5-3
Jumper and Connector Locations
Mainboard Jumper and Connector Locations
0

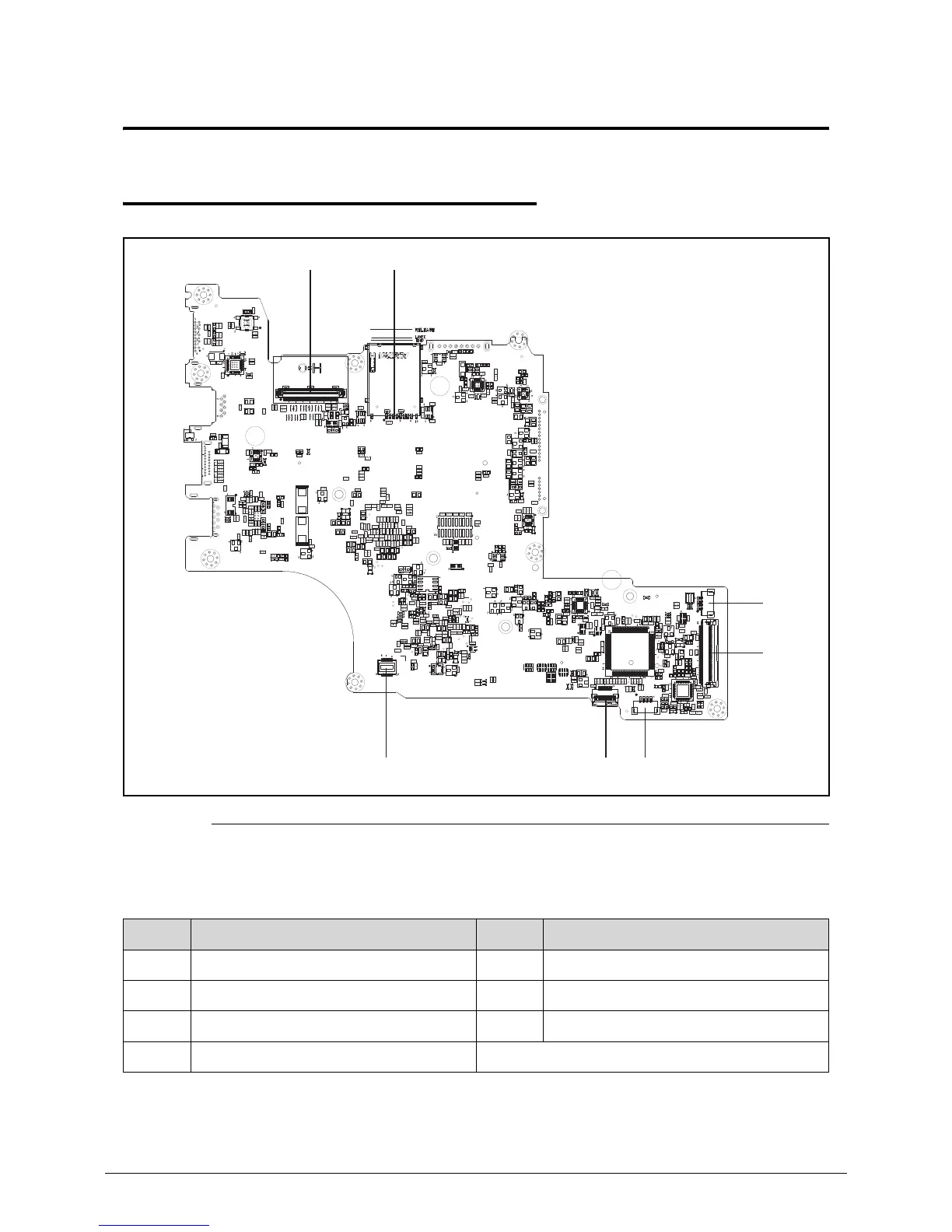

Figure 5-1.
Mainboard Top
Table 5-1.
Mainboard Top
Item
Description
Item
Description
1
LVDS Connector
5
Speaker Connector
2
Cardreader Connector
6
LED Board Connector
3
DC-in Connector
7
TPM Connector
4
USB Connector
12
3
4
5
6
7
194
196
