Acer Aspire 1650 Series User Manual

Chapter 3 51

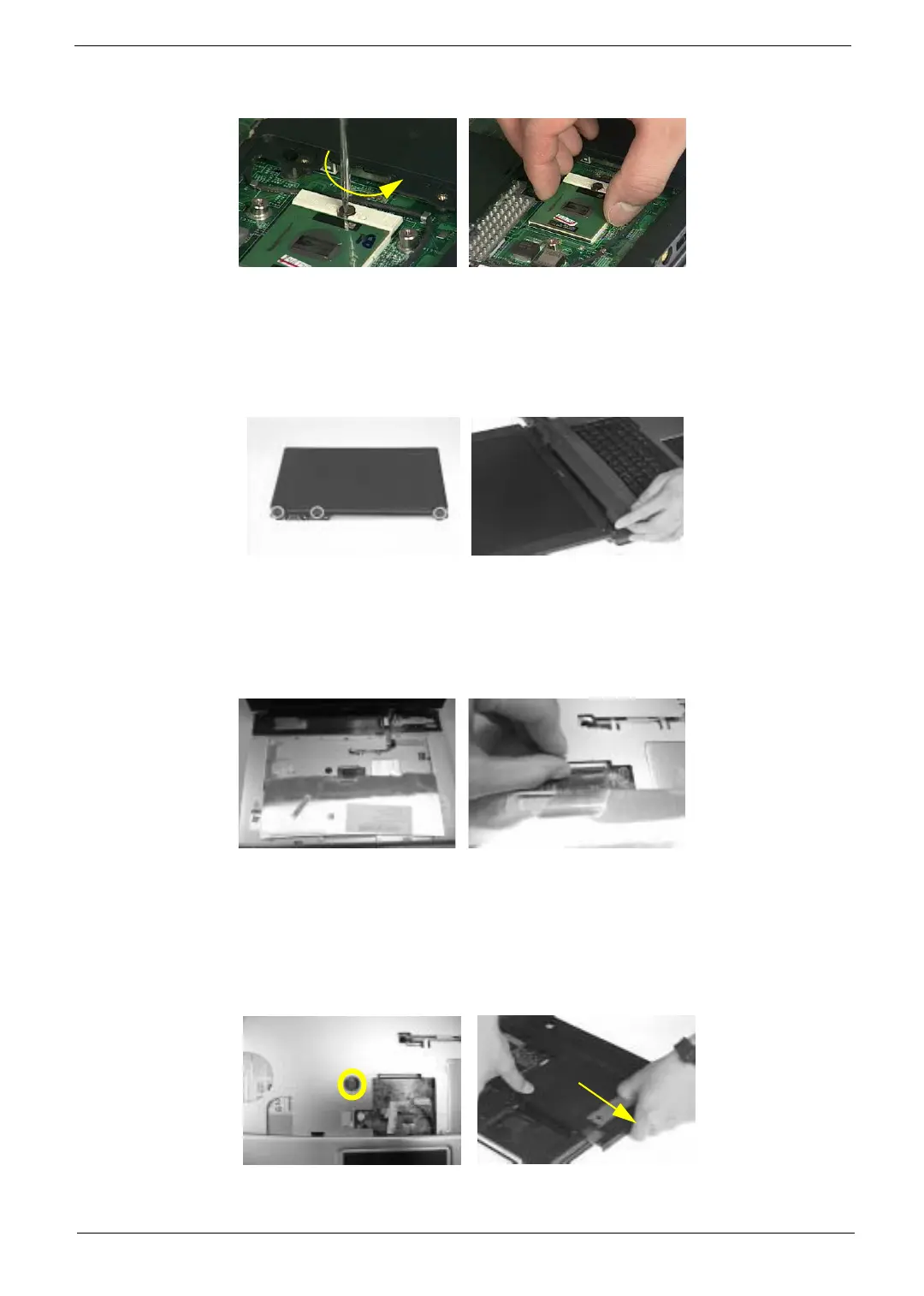

Removing the ODD Module
1. Remove the three screws holding the middle cover.
2. Detach the middle cover carefully.
.
3. Turn over the keyboard as shown.
4. Disconnect the keyboard cable from the main board then remove the keyboard.
5. Remove the screw that fastens the ODD module.
6. Turn over the notebook computer then detach the ODD module carefully.
NOTE: When you reattach the ODD, please make sure you attach the ODD module completely to the main
unit. Otherwise, you can not fasten the screw and the screw may damage the main board.
download service manual and resetter printer at http://printer1.blogspot.com

Acer Aspire 1650 Series Specifications

General

Operating System	Windows XP Home or Professional
RAM	Up to 2GB DDR
Storage	40/60/80GB Hard Disk Drive
Optical Drive	DVD/CD-RW combo or DVD±RW
Battery	6-cell Li-ion
Memory Type	DDR
Display Resolution	1024 x 768 (XGA)
Hard Drive Interface	ATA-100
Networking	10/100 Mbps Fast Ethernet; 802.11b/g Wireless LAN
Ports	RJ-45, RJ-11, Headphone, Microphone
Weight	2.8 kg (6.17 lbs)
