Acer Aspire 8930G User Manual

4 Chapter 1

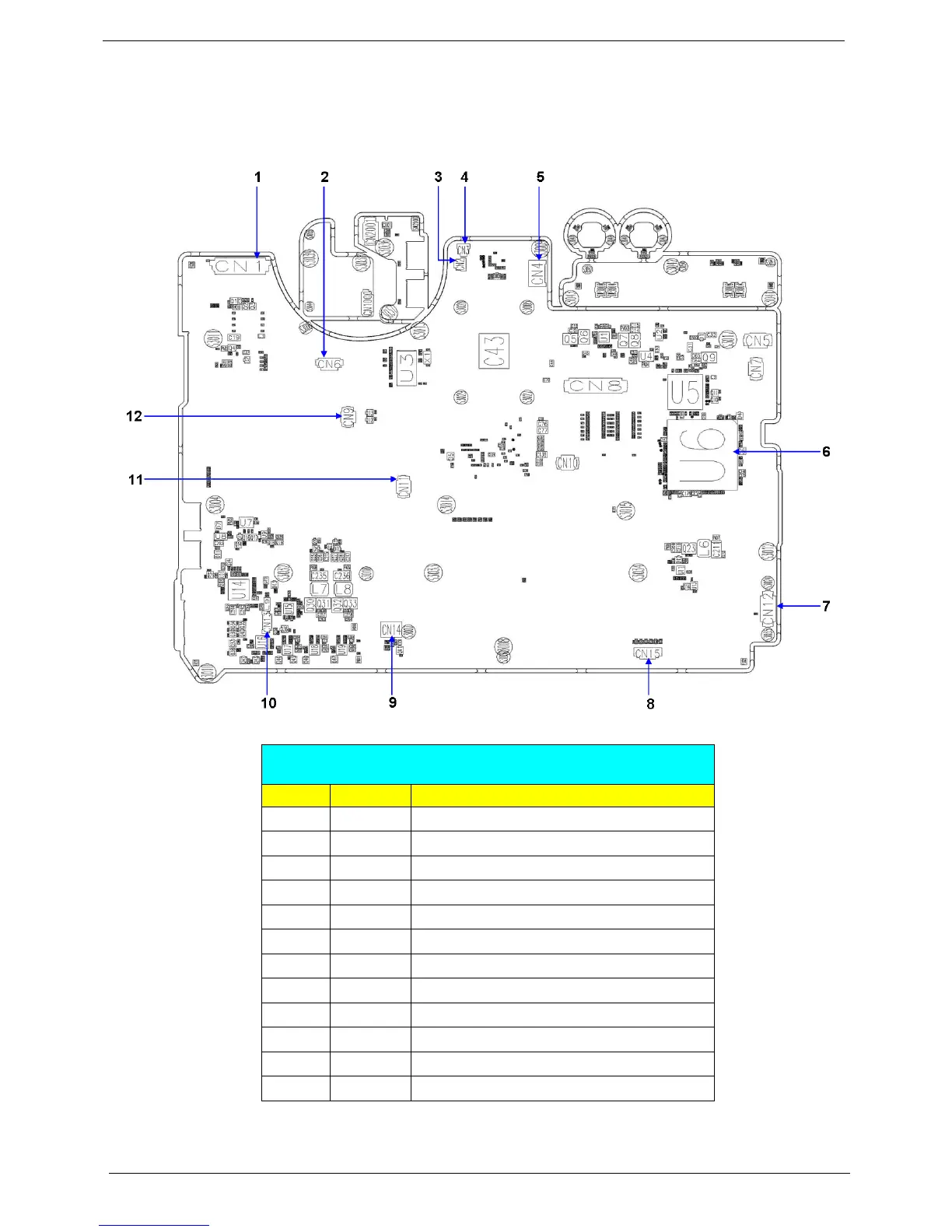

Board Layout
Top View
Aspire8930 M/B layout and connector location
TOP view
No. Name Description
1 CN1 LCM Cable CNTR
2 CN6 Power Board FFC CNTR
3 CN2 LED Board Cable CNTR
4 CN3 LED Board Cable CNTR
5 CN4 Power Cable CNTR
6 U6 South Bridge
7 CN12 I/O Board CNTR
8 CN15 Speaker Cable CNTR
9 CN14 MDC CNTR
10 CN13 BT Cable CNTR
11 CN11 Touch Pad FFC CNTR
12 CN9 Media consle Board CNTR

Acer Aspire 8930G Specifications

General

Graphics	NVIDIA GeForce 9600M GT / 9700M GT
RAM	Up to 4GB DDR3
Optical Drive	Blu-ray Disc / DVD-Super Multi double-layer drive
Bluetooth	Bluetooth 2.0+EDR
Audio	Dolby Home Theater
Battery	8-cell Li-ion battery
Processor	Intel Core 2 Duo
Display	18.4-inch Full HD 1920 x 1080
Operating System	Windows Vista Home Premium
Weight	4.1 kg (9.04 lbs)
Chipset	Mobile Intel PM45 Express
Wireless	802.11a/b/g/n
Webcam	Acer Crystal Eye webcam
Card Reader	5-in-1 card reader
Ports	4x USB 2.0, HDMI, VGA, eSATA
