Acer Aspire 8930G User Manual

Chapter 3 49
Disassembly Procedure Flowchard
The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence
and instructs you on the components that need to be removed during servicing. For example, if you want to
remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in
that order.

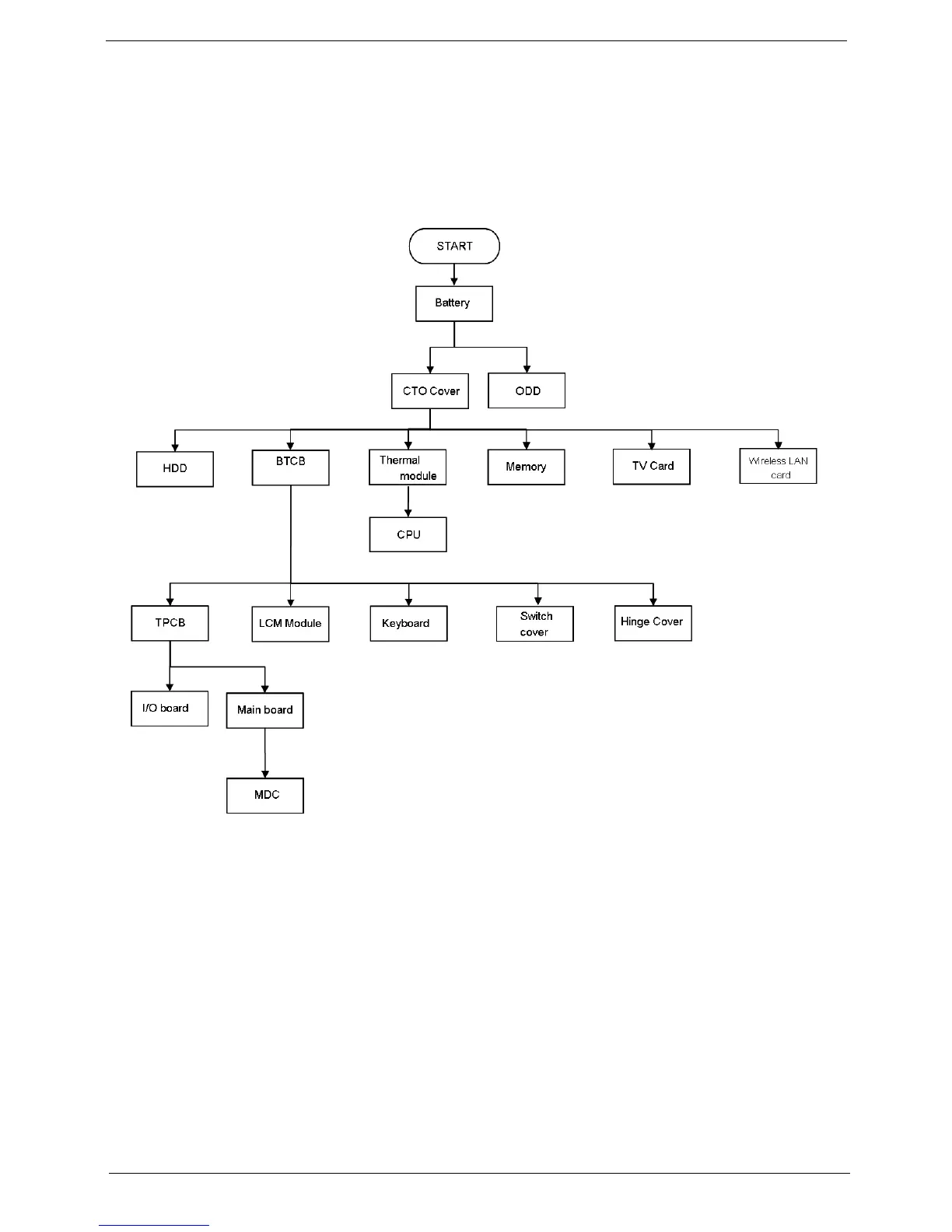

Main unit disassembly flow chart

Acer Aspire 8930G Specifications

General

Graphics	NVIDIA GeForce 9600M GT / 9700M GT
RAM	Up to 4GB DDR3
Optical Drive	Blu-ray Disc / DVD-Super Multi double-layer drive
Bluetooth	Bluetooth 2.0+EDR
Audio	Dolby Home Theater
Battery	8-cell Li-ion battery
Processor	Intel Core 2 Duo
Display	18.4-inch Full HD 1920 x 1080
Operating System	Windows Vista Home Premium
Weight	4.1 kg (9.04 lbs)
Chipset	Mobile Intel PM45 Express
Wireless	802.11a/b/g/n
Webcam	Acer Crystal Eye webcam
Card Reader	5-in-1 card reader
Ports	4x USB 2.0, HDMI, VGA, eSATA
