Acer Aspire M3970 User Manual

92 Chapter 5

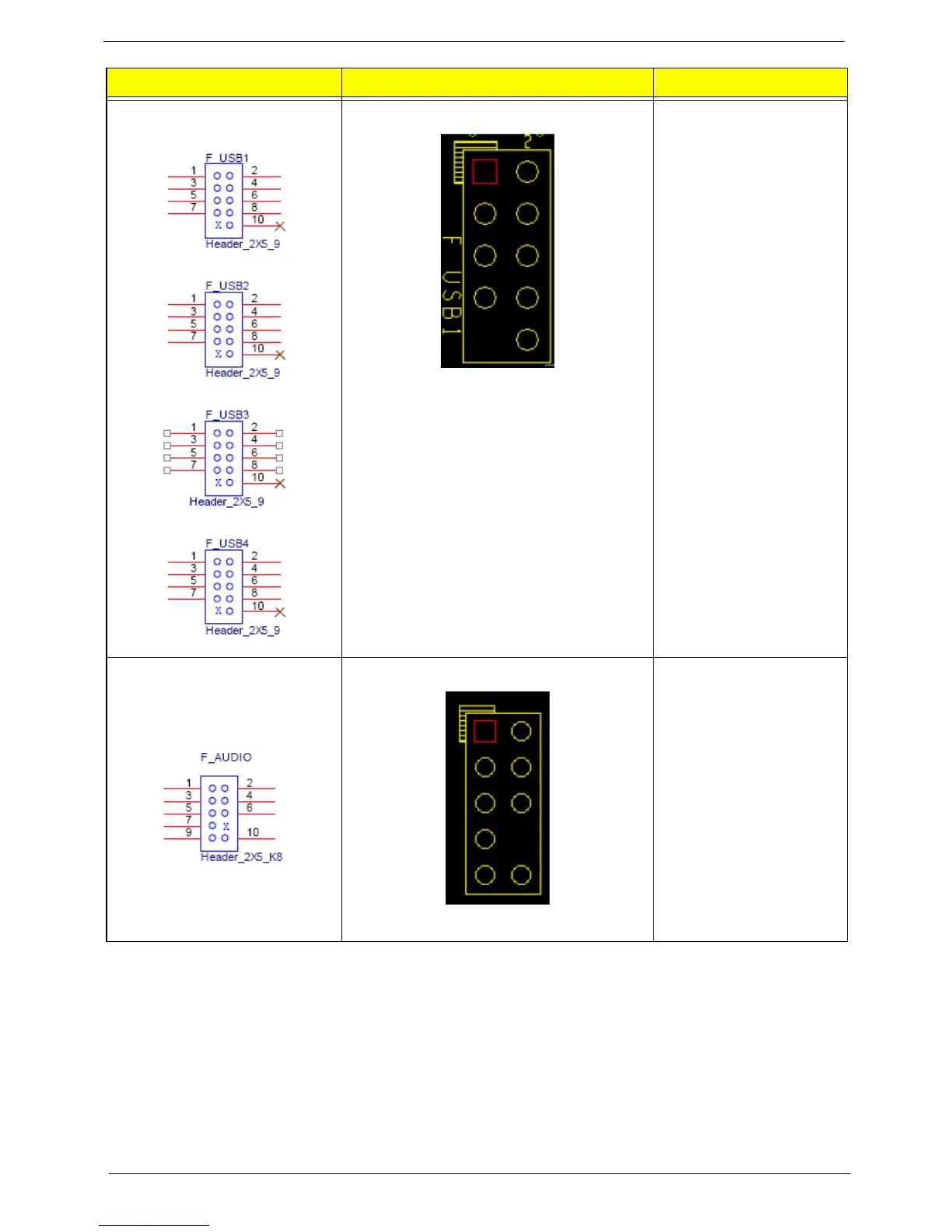

F_USB1, F_USB2, F_USB3,
F_USB4
FRONT USB HEADER (2X5)
Yellow is symbol, Red is Pin 1 of symbol.
1. VCC5
2. VCC5
3. D1-
4. D0-
5. D1+
6. D0+
7. GND
8. GND
9. KEY
10. GND
F_AUDIO
FRONT PANEL AUDIO HEADER (2X5)
Yellow is symbol, Red is Pin 1 of symbol.
1: A_MIC2_L
2: GND_AUDIO
3: A_MIC2_R
4: FP_AUD_DETECT
5: A_LINE2_R
6: A_MIC2_JD
7: GND_AUDIO
8: KEY
9: A_LINE2_L
10: A_LINE2_JD
Jumper/Header Name Function Definition
