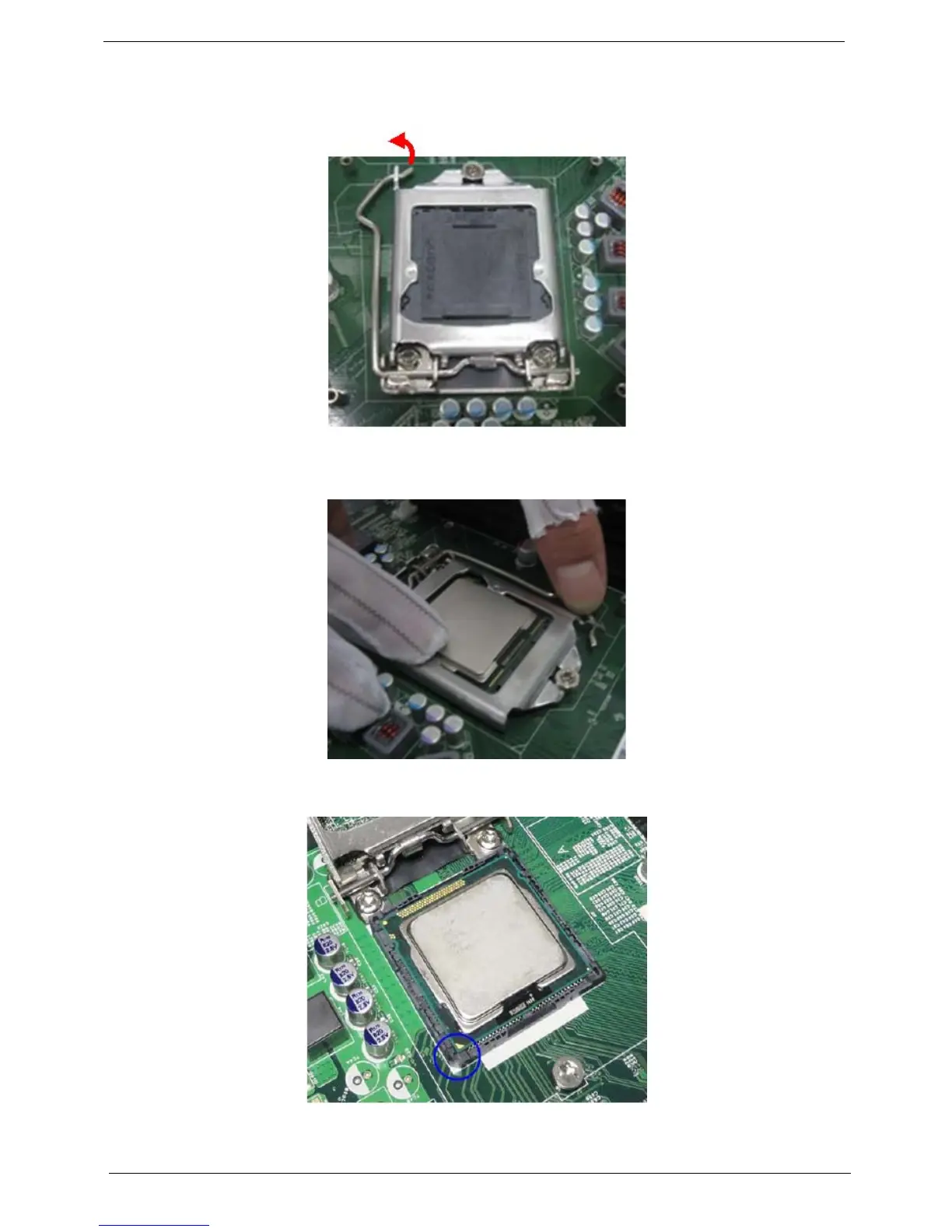

56
Chapter 3
Install the Processor
1.
Release the load lever
.
2.
Lift the load lever and load plate to the fully open,then take out the CPU cove
r
.
3.
Put the CPU in the seat and close the load plate and load lever
.
NOTE:
When you install the processor
, note the arro
w on th
e corner
to make sure the pro
cessor is properly
oriented over the socket.
63
65
Table of Contents
Default Chapter
2
Revision History
2
Fru Information
6
Table of Contents
7
System Tour
9
Features
9
Hard Disk Drive
10
Optical Disk Drive
10
Graphics Card
10
Serial Ata Controller
10
Usb Ports
10
System Bios
11
Power Supply
11
Block Diagram
12
System Components
13
Front Panel
13
Rear Panel
14
Hardware Specifications and Configurations
15
Memory Combinations
16
System Memory
16
Audio Interface
16
Sata Interface
17
Usb Port
17
Environmental Requirements
17
Power Management
17
Power Management Function(ACPI Support Function)
18
System Utilities
19
CMOS Setup Utility
19
Entering CMOS Setup
20
Navigating through the Setup Utility
20
Setup Utility Menus
21
Advanced Chipset Configuration
24
Integrated Peripherals
25
Pc Health Status
26
Boot Options
29
System Disassembly and Assembly
31
Disassembly Requirements
31
Pre-Disassembly Procedure
32
Removing the Side Panel
33
Removing the Front Bezel
34
Removing the Heat Sink Fan Assembly
35
Removing the Processor
37
Removing the VGA Card
39
Removing the Wireless LAN Card
40
Removing the TV-Tuner Card
41
Removing the PCI-E Modem Card
42
Removing the Memory Modules
43
Removing the Hard Disk Drive
44
Removing the Bracket of Removable HDD
46
Removing the Optical Drive
47
Removing the System Fan
49
Removing the Daughter Board
51
Removing the Power Supply
52
Removing the Mainboard
53
Removing the Top Cover
56
Removing the Power Switch and LED Cable Assembly
58
Removing the Card Reader
59
Removing the Top USB and Audio I/O Assembly
60
Assembly Requirements
62
Assembly Procedure
63
Install the Processor
64
Install the Heat Sink Fan Assembly
65
Install the Memory
66
Romoving the Side Panel
67
Removing the Daughter Board
68
Removing the Cage of Hard Disk Drive
69
Removing the PCI Cover
70
Install the Power Supply
71
Install the I/O Shielding
72
Install the Main Board
73
Install the Optical Drive
75
Install the Hard Disk Drive
77
Install the Daughter Board
80
Install the System Fan
81
Install the PCI-E Modem Card
82
Install the TV-Tuner Card
83
Install the Wireless LAN Card
84
Install the VGA Card
85
Install the Front Bezel
86
Install the Side Panel
87
System Troubleshooting
88
Hardware Diagnostic Procedure
88
System Check Procedures
89
Power System Check
89
System External Inspection
89
System Internal Inspection
89
Beep Codes
90
Checkpoints
91
Bootblock Recovery Code Checkpoints
93
BIOS Recovery
94
Jumper and Connector Information
97
M/B Placement
97
Jumper Setting
99
Setting Jumper
99
Sata Port
104
Vga Connector
105
Hdmi Connector
105
FRU (Field Replaceable Unit) List
107
Aspire M3970 Exploded Diagram
108
Aspire M3970 FRU List
