Removing the Memory Modules

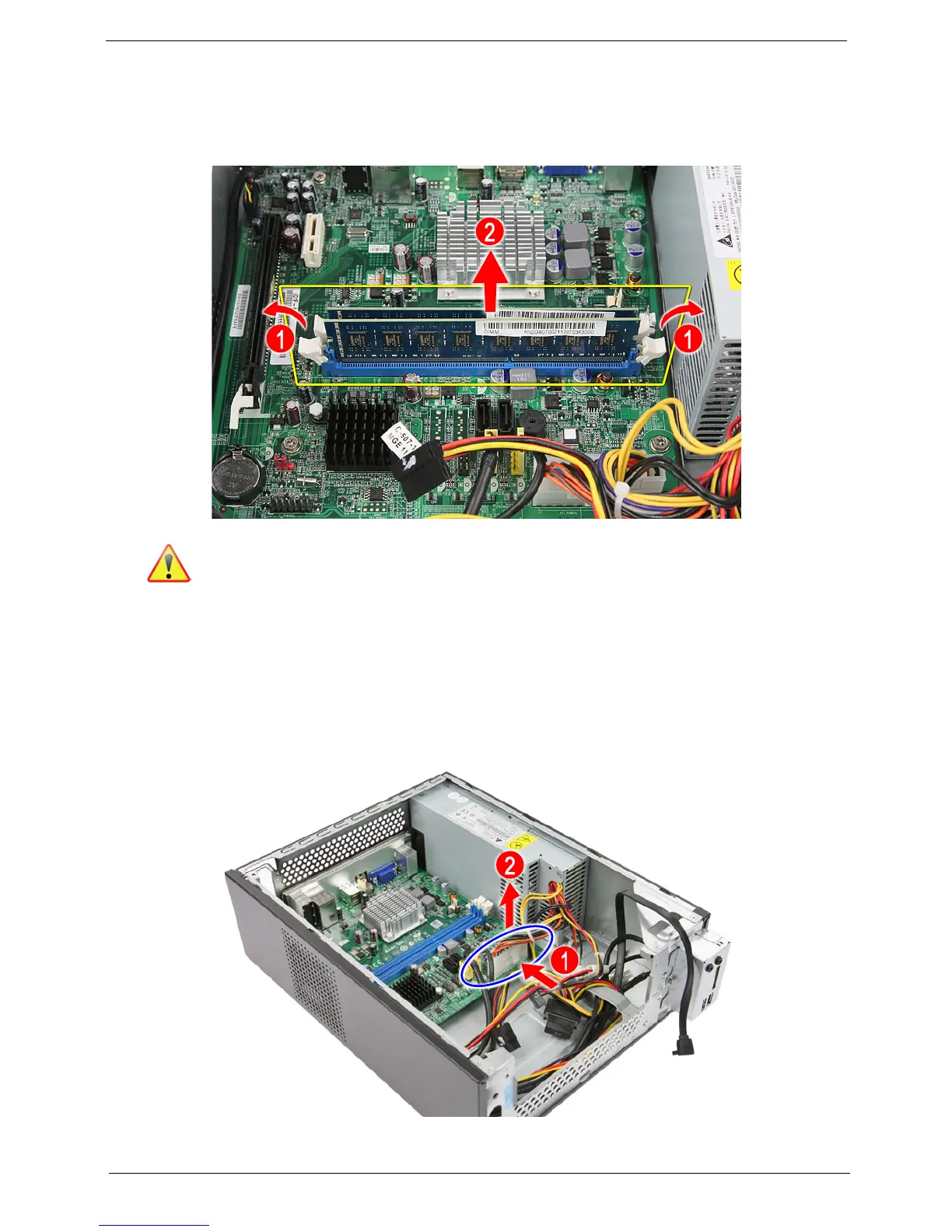

1. Press to open the holding clips (1) securing the memory module.
2. Gently pull the memory module upward (2) to remove it from the DIMM1 slot. 
Note:Circuit boards >10 cm2 has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
3. Repeat steps 1 and 2 to remove the second memory module from the DIMM2 slot.
Removing the Power Supply Unit
1. Disconnect the ATX power supply cables from its mainboard connector.
a. Squeeze on the retaining latch (1) attached to the cable end of the connector.
b. Grasp the cable end of the connector and pull it straight up (2).

Acer Aspire X1430 Specifications

General

Graphics	AMD Radeon HD 7310
Operating System	Windows 8; Windows 7 Home Premium 64-bit
Memory	2GB DDR3
Hard Drive	500GB HDD
Audio	High-definition audio support
Networking	10/100/1000 Mbps Ethernet
Ports	USB 2.0, HDMI, VGA, Ethernet, audio in/out
RAM	Up to 8 GB DDR3
Storage	Up to 2 TB HDD
USB Ports	USB 2.0
Ethernet	Gigabit Ethernet
Wireless	802.11b/g/n
Optical Drive	DVD-Super Multi DL
