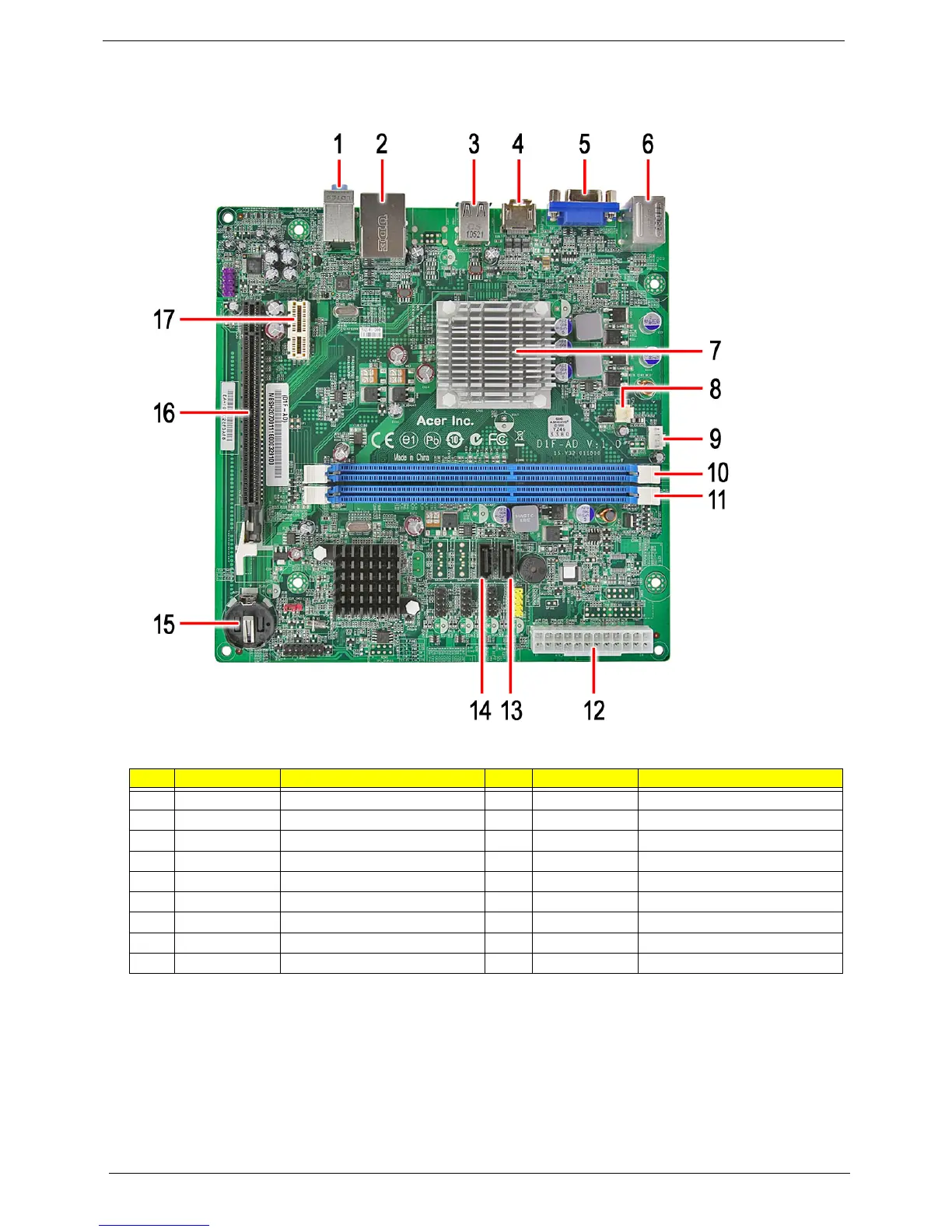

Mainboard Layout
This section shows the major mainboard components.
No. Label Description No. Label Description
1 AUDF1 Front panel audio jack header 10 DIMM1 DDR3 240-pin slot 1
2 USBLAN1 RJ45+USB connectors 11 DIMM DDR3 240-pin slot 2
3 USB2 USB connectors 12 ATX_POWER1 Standard 24-pin power connector
4 HDMI1 HDMI connector 13 SATA1 Serial ATA connector 1
5 VGA1 VGA connector 14 SATA2 Serial ATA connector 2
6 PSKM1 Keyboard and mouse connectors 15 BAT1 Battery holder
7 CPU1 Processor socket 16 PCIEX16 PCIEX16 Slot
8 CPU_FAN1 CPU cooling fan connector 17 PCIEX1 PCIEX1 36-pin slot
9 SYSFAN9 System fan connector

Acer Aspire X1430 Specifications

General

Graphics	AMD Radeon HD 7310
Operating System	Windows 8; Windows 7 Home Premium 64-bit
Memory	2GB DDR3
Hard Drive	500GB HDD
Audio	High-definition audio support
Networking	10/100/1000 Mbps Ethernet
Ports	USB 2.0, HDMI, VGA, Ethernet, audio in/out
RAM	Up to 8 GB DDR3
Storage	Up to 2 TB HDD
USB Ports	USB 2.0
Ethernet	Gigabit Ethernet
Wireless	802.11b/g/n
Optical Drive	DVD-Super Multi DL
