Acer P5530 User Manual

8
English

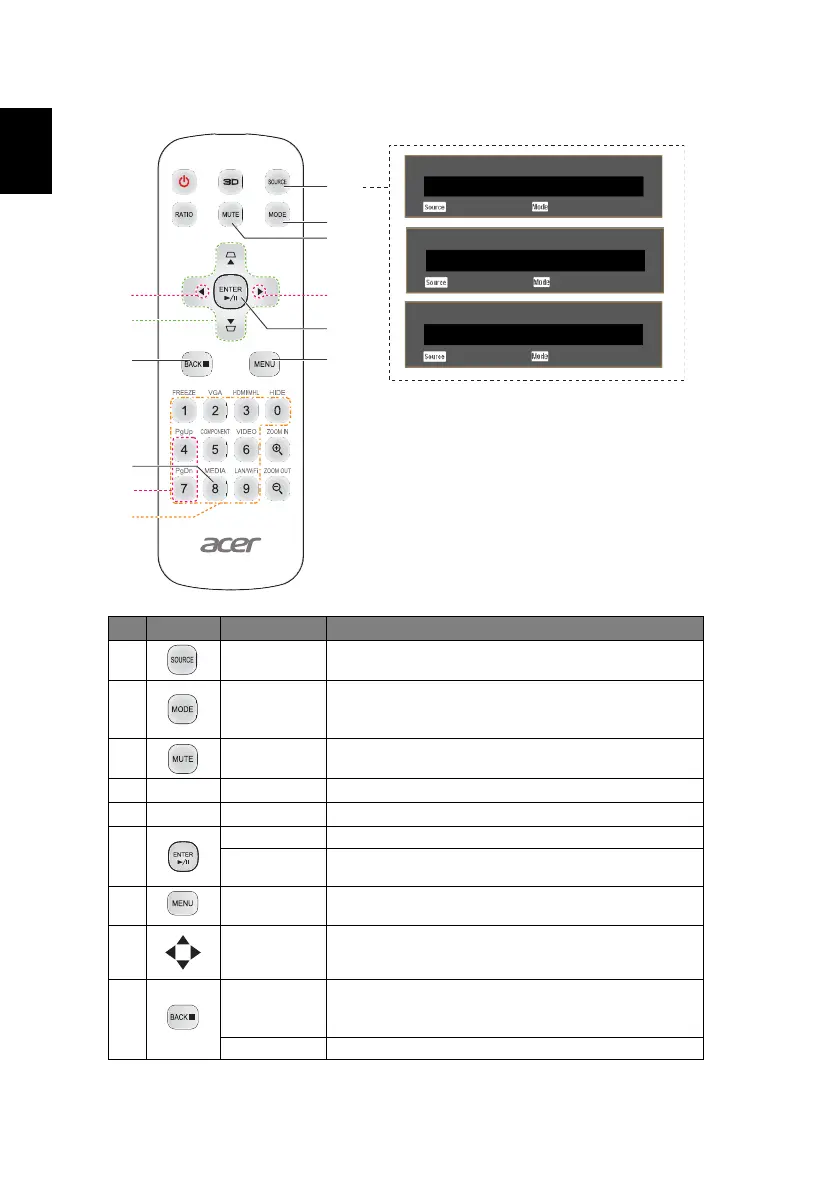

MHL (Mobile High-Definition Link) Control
# Icon Function Description
1 SOURCE
Press the "SOURCE" button to toggle between
Navigation, Numeric and Multi-Media mode.
2MODE
• Press "MODE" button for one second to activate
the MHL Control Mode.
• To exit, press the "MODE" button again.
3MUTE
To turn on/off the volume. (only for Navigation or Multi-
Media mode)
4

Volume UP Increases the volume. (only for Multi-Media mode)
5

Volume Down Decreases the volume. (only for Multi-Media mode)
6
Select/Enter Press to select/enter the file. (only for Navigation mode)
Play/Pause
Toggles between playback and pause. (only for Multi-
Media mode)
7MENU
Press to launch the root memu.
(only for Navigation mode)
8
Four
directional
select keys
Use up, down, left, right buttons to select items or make
adjustments to your selection.
(only for Navigation mode)
9
Back/Exit
• Press "BACK" to go back one menu step.
• To exit the file.
(only for Navigation mode)
Stop Discontinues playback. (only for Multi-Media mode)
8
1
2
9
12
7
11
3
6
4
5
10
MHL Control Mode
Navigation
Next Mode
Exit MHL Control
MHL Control Mode
Numeric
Next Mode
Exit MHL Control
MHL Control Mode
Multi-Media
Next Mode
Exit MHL Control

Acer P5530 Specifications

General

Placement	Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Mac compatibility	Yes
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1 - 7.5 m
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	20000:1
Screen size compatibility	31 - 300 \
Projector native resolution	1080p (1920x1080)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.024 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Projector brightness (economic mode)	3200 ANSI lumens
3D	-
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.13 - 1.47:1
Digital zoom	2 x
Optical zoom	1.3 x
Focal length range	16.91 - 21.6 mm
Aperture range (F-F)	2.5 - 2.782
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
RMS rated power	16 W
Number of built-in speakers	1
Wi-Fi	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	290 W
Power consumption (economy mode)	205 W
Noise level	31 dB
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	24 dB
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	214 mm
Width	315 mm
Height	103 mm
Weight	2730 g
