User Controls
Installation menu
The installation menu provides an onscreen display (OSD) for projector
installation and maintenance. Use the OSD only when the message "No signal
input" is displayed on the screen.
The menu options include settings and adjustments for screen size and distance,
focus, keystone correction and more .
1 Turn on the projector by pressing "Power" button on the control pad.
2 Press the "MENU" button on the remote control to launch the OSD for
projector installation and maintenance.

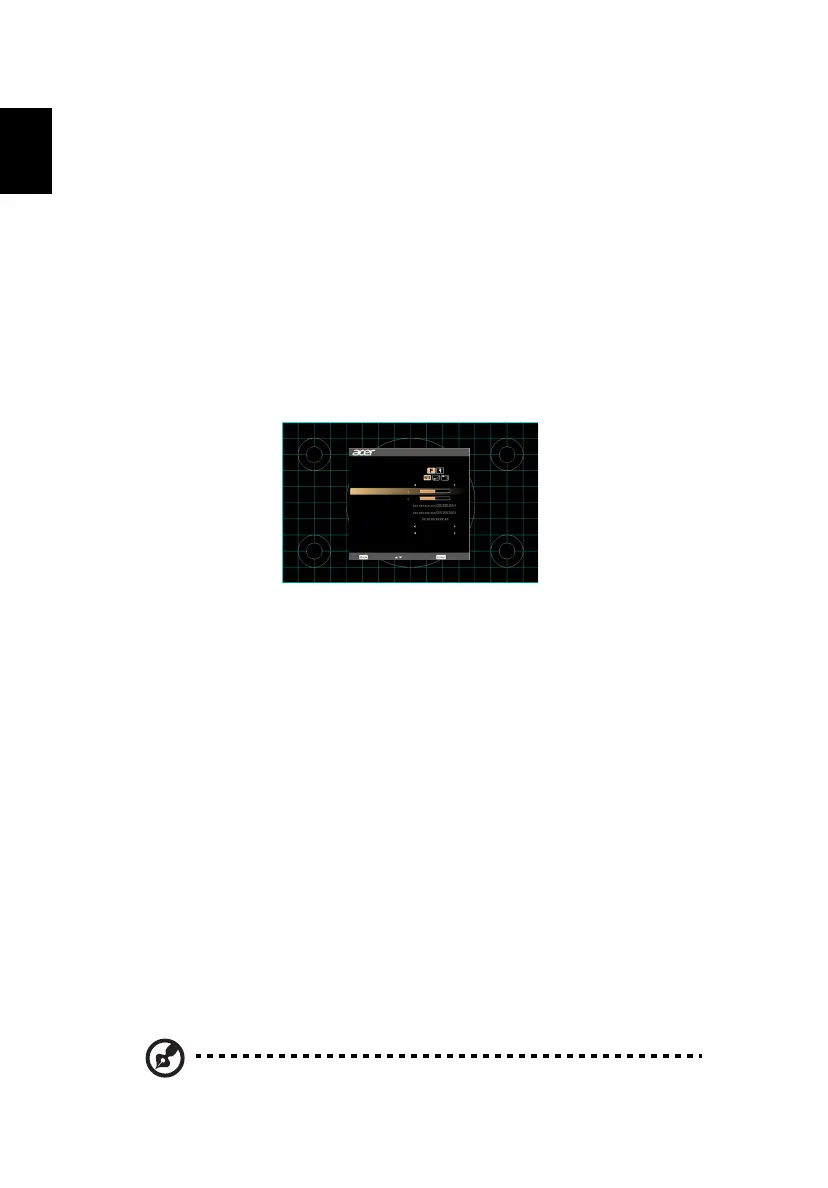

3 The background pattern acts as a guide to adjusting the calibration and
alignment settings, such as screen size and distance, focus and more.
4 The Installation menu includes the following options:
•Projection Mode
•Projection Location
•Auto Keystone settings
•Manual Keystone settings
•WirelessHD Dongle Pairing
•Language settings
•Reset to factory default function
Use the up and down arrow keys to select an option, the left and right
arrow keys to adjust selected option settings, and the "ENTER" to enter a
submenu for feature setting. The new settings will be saved automatically
upon exiting the menu.
5 Push the "MENU" or "BACK" button anytime to exit the menu and return
to the Acer welcome screen.
Note: Functions vary depending on model definition.
Installation
Projectio n Mode
Projectio n Location
Auto Keystone
Wake on LAN (S tandby)
Language
Reset
Off
English
Select
Enter
Exit
WirelessHD Don gle Pairing
Off
V. Keystone
H. Keystone
LAN IP/Mask
WiFi IP/Mask
MAC Address

Acer P5530 Specifications

General

Placement	Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Mac compatibility	Yes
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1 - 7.5 m
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	20000:1
Screen size compatibility	31 - 300 \
Projector native resolution	1080p (1920x1080)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.024 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Projector brightness (economic mode)	3200 ANSI lumens
3D	-
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.13 - 1.47:1
Digital zoom	2 x
Optical zoom	1.3 x
Focal length range	16.91 - 21.6 mm
Aperture range (F-F)	2.5 - 2.782
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
RMS rated power	16 W
Number of built-in speakers	1
Wi-Fi	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	290 W
Power consumption (economy mode)	205 W
Noise level	31 dB
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	24 dB
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	214 mm
Width	315 mm
Height	103 mm
Weight	2730 g
