Acer P5530 User Manual

18
English

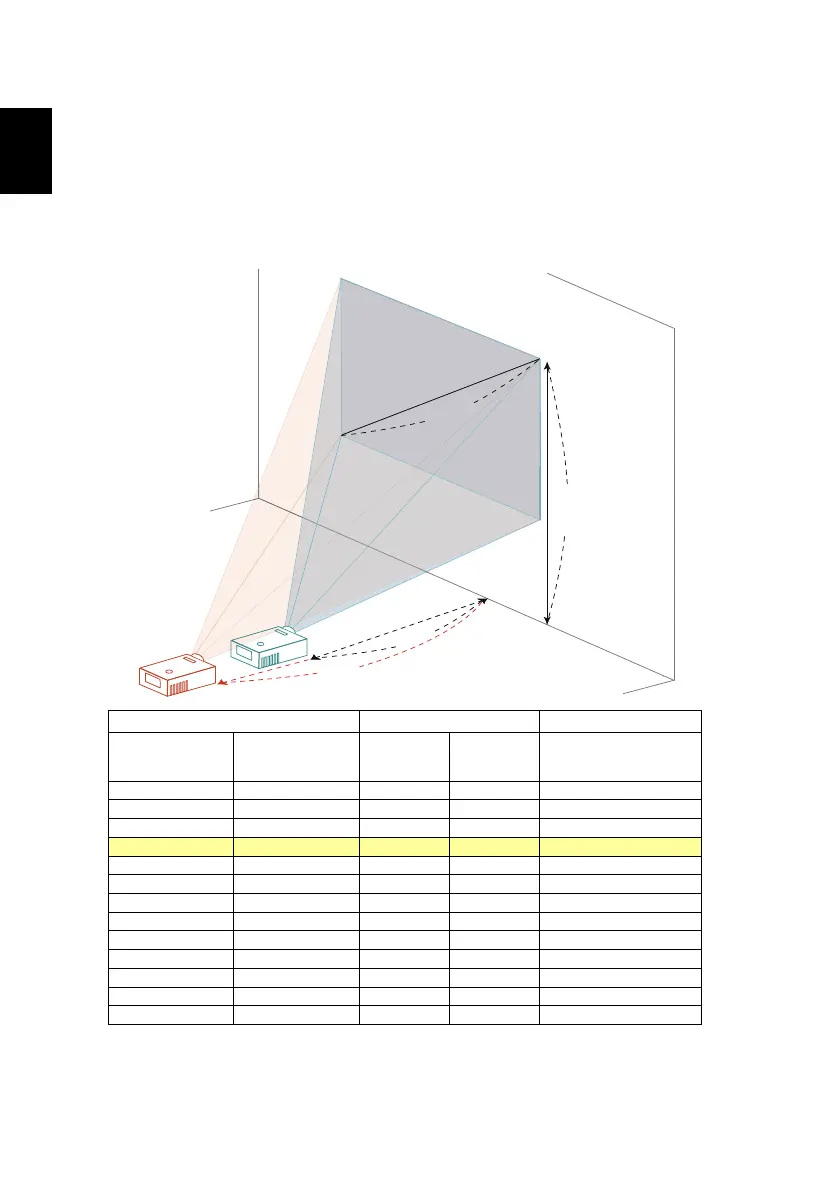

How to get a preferred image size by adjusting
distance and zoom
The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.
• XGA series
To obtain an image size of 60" set the projector at a distance 1.8 m and 2.4 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
30 61 x 46 0.9 1.2 53
40 81 x 61 1.2 1.6 70
50 102 x 76 1.5 2.0 88
60 122 x 91 1.8 2.4 105
70 142 x 107 2.1 2.7 123
80 163 x 122 2.4 3.1 140
90 183 x 137 2.7 3.5 158
100 203 x 152 3.0 3.9 175
150 305 x 229 4.5 5.9 263
180 366 x 274 5.4 7.1 315
200 406 x 305 6.0 7.8 351
250 508 x 381 7.6 9.8 438
300 610 x 457 9.1 526
Zoom Ratio: 1.3x
A
C
D
B
Desired Distance
2.4 m
1.8 m
Height: 105 cm
from base to top
of image
60"
Desired image
size

Acer P5530 Specifications

General

Placement	Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Mac compatibility	Yes
Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1 - 7.5 m
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	20000:1
Screen size compatibility	31 - 300 \
Projector native resolution	1080p (1920x1080)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.024 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Projector brightness (economic mode)	3200 ANSI lumens
3D	-
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.13 - 1.47:1
Digital zoom	2 x
Optical zoom	1.3 x
Focal length range	16.91 - 21.6 mm
Aperture range (F-F)	2.5 - 2.782
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
RMS rated power	16 W
Number of built-in speakers	1
Wi-Fi	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	290 W
Power consumption (economy mode)	205 W
Noise level	31 dB
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	24 dB
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	214 mm
Width	315 mm
Height	103 mm
Weight	2730 g
