44
Chapter 3

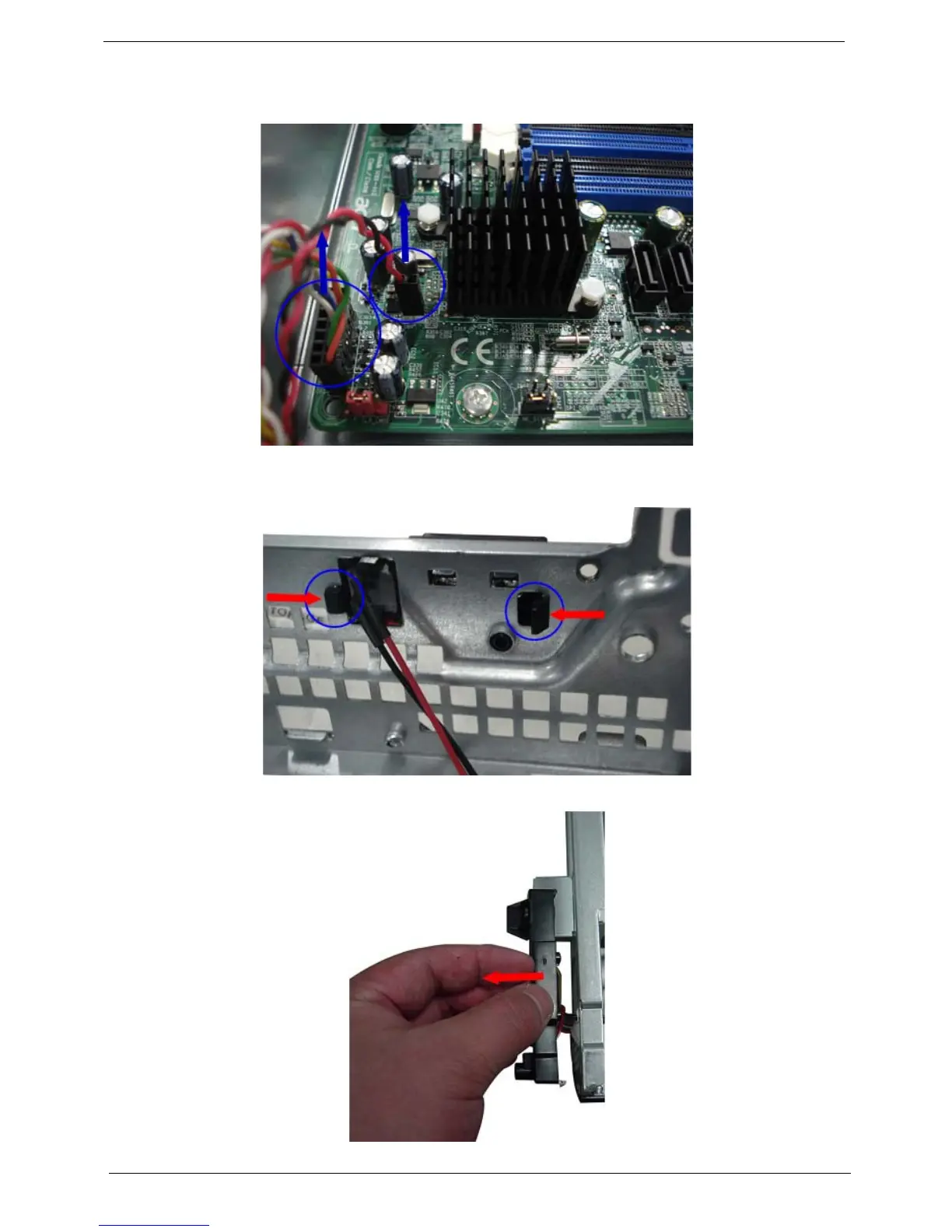

Removing the Power Switch,OBR and LED Cable Assembly
1.
Disconnector the power switch,OBR and LED cable from mianboard.
2.
Removing the OBR and LED cable assembly
.
a.
Release the locking
tabs from the chassis interior
.
b.
Pull the OBR and LED cabl
e a
ssembly from the chassis.
