66 Chapter 6

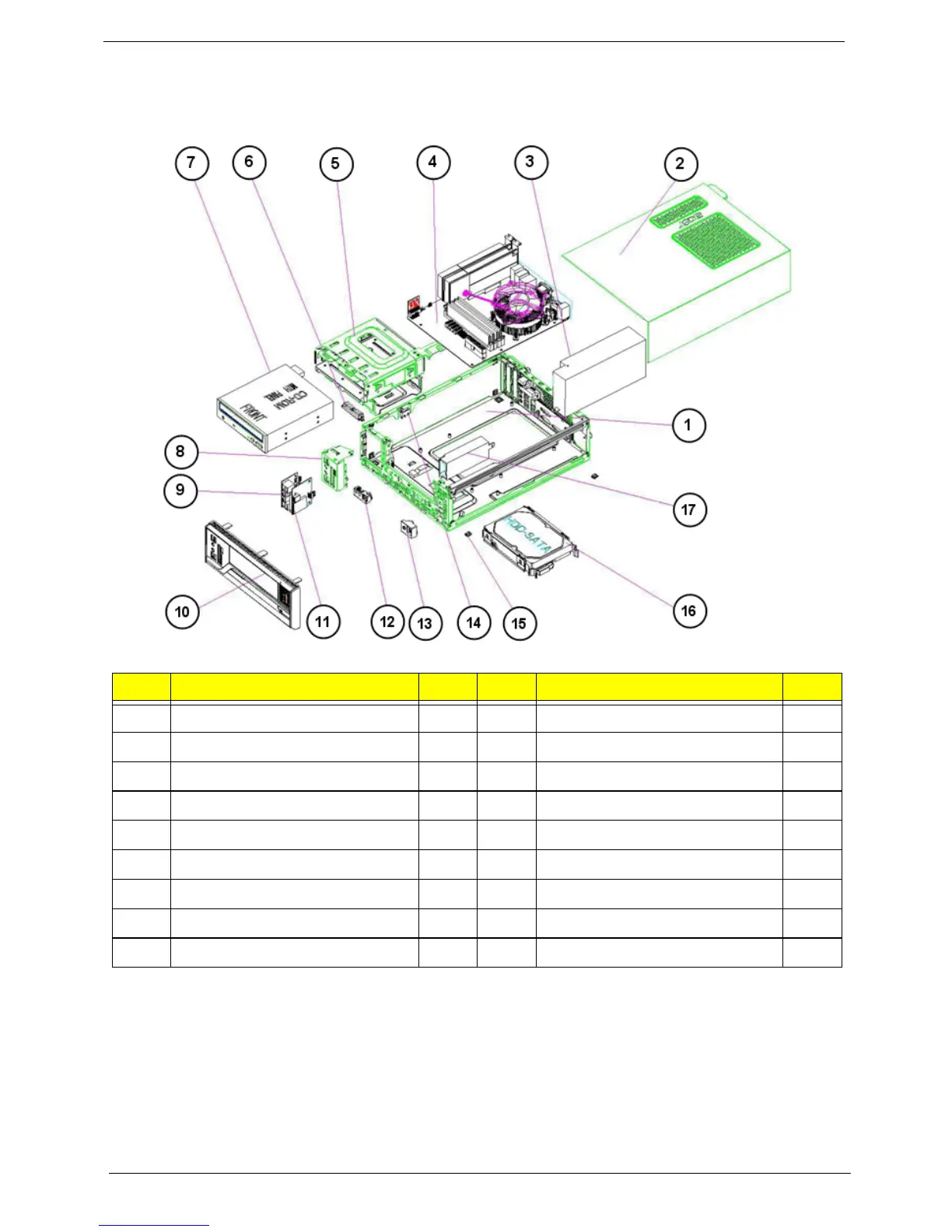

Veriton X680G/X688G/X680 Exploded Diagram
NOTE: This section will be updated when more information becomes available.
ITEM NAME Q’TY ITEM NAME Q’TY
1 CHASSIS 1 10 BEZEL 1
2 TOP-PANEL 1 11 Cardreader PCB MODULE 1
3 POWER SUPPLY 1 12 HDD-SWITCH-HOLDER 1
4 MOTHER BOARD 1 13 SWITCH HOLDER 1
5 ODD-HDD-BRAKET MODULE 1 14 INTRUSSION-SWITCH
6 LINE-CLIP 1 15 RUBBER FOOT 8
7 CD-ROM 1 16 HDD MODULE 1
8 USB PLATE 1 17 INTERNAL SPEAKER 1
9 USB PCB MODULE 1
