Agilent Technologies 8648A User Manual

8-21
Performance Tests
Phase Modulation Distortion Performance Test
Phase Modulation Distortion Performance Test
Connect the Test Equipment

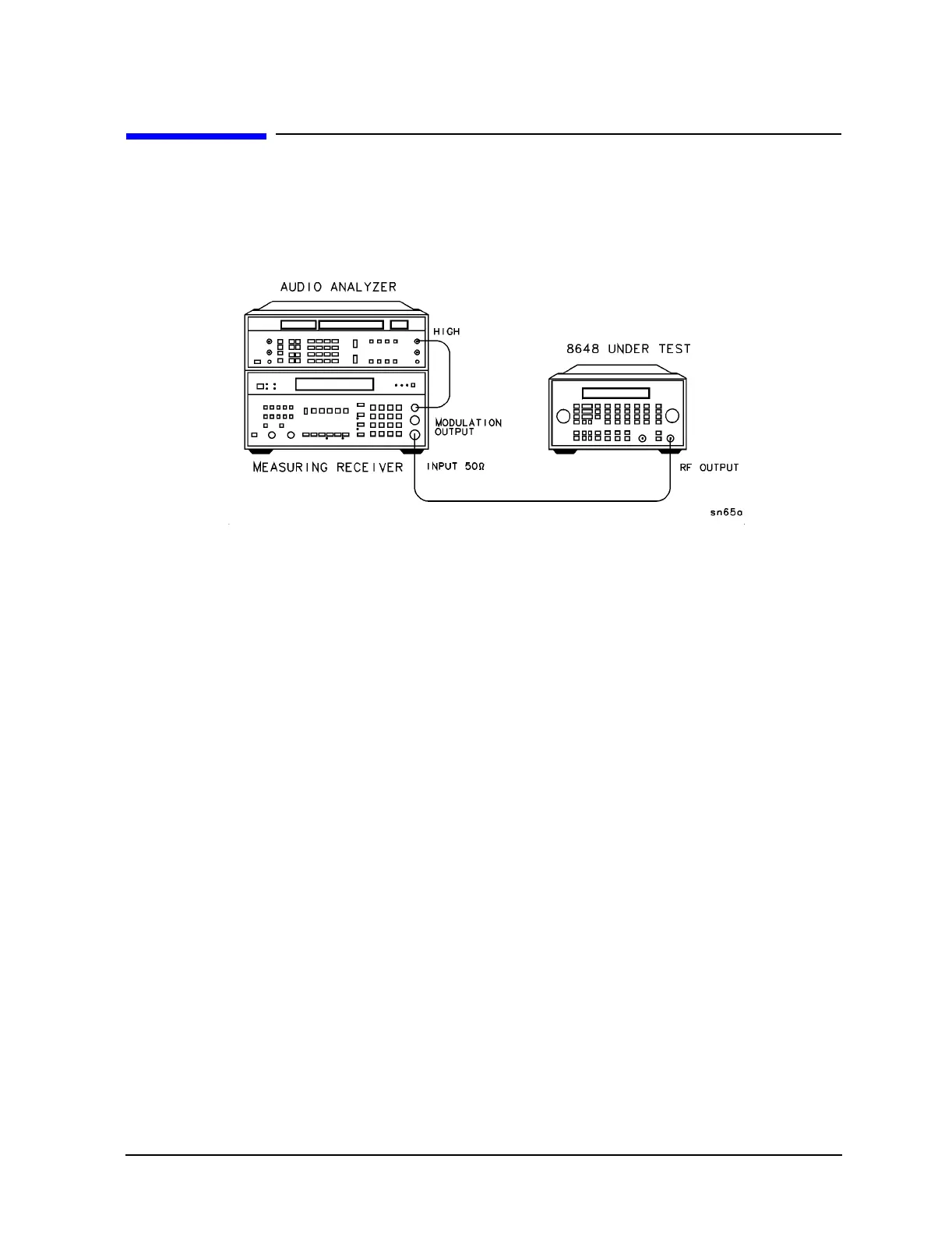

Figure 8-10. Phase Modulation Distortion Equipment Setup
Configure the Measuring Receiver
1. Reset
2. ΦM mode
3. Peak+ detector
4. 300 Hz high-pass filter
5. 15 kHz low-pass filter
Configure the Audio Analyzer
1. Distortion mode
2. 30 kHz low-pass filter
3. Set low input to ground
Configure the 8648
1. Turn ΦM on; press Φ MOD ON/OFF.
2. Set the rate; press INT 1 kHz.
3. Set the amplitude; press
AMPLITUDE 4 dB(m).
4. Turn the RF output on; press
RF ON/OFF.
