Alcatel-Lucent 4080 IP-DECT - 3 Adjusting the Antenna Position

Alcatel-Lucent 4080 IP-DECT
Installation Manual
8AL90850USAAed01 16
3 ADJUSTING THE ANTENNA POSITION
Note: You only need to change the antenna position when you mount the 4080 IP-
DECT horizontally! In all other cases you don’t need to change the antenna
position.

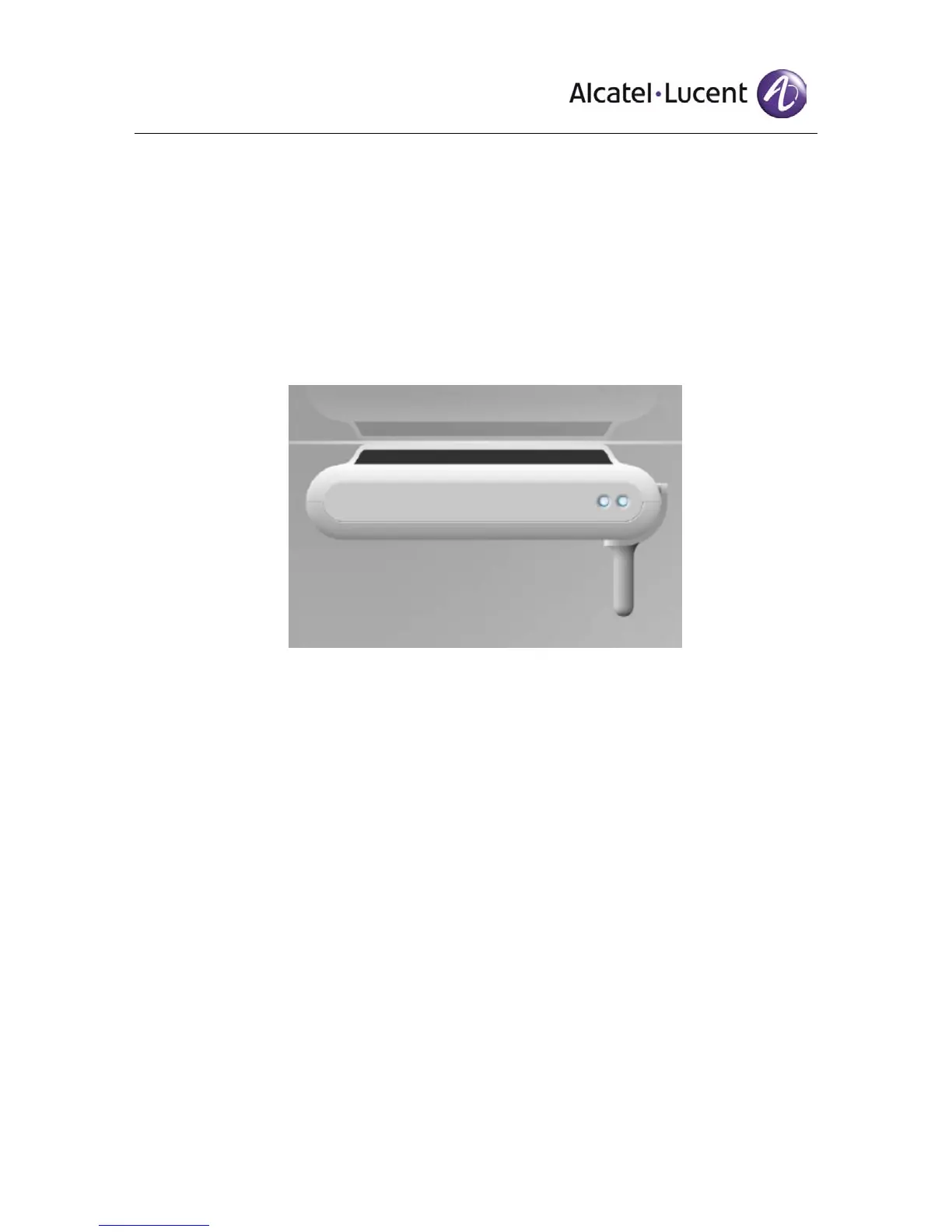

Figure 3. 4080 IP-DECT mounted horizontally
