Set the Audio Sync options so that one device is the clock leader (set to ‘Internal’)
and the other device is a clock follower (sync from SLink or I/O Port as appropriate).
The SLink port does not tunnel control network data. Use the Network port to
connect multiple AHM processors or other Allen & Heath mixers for control
purposes, for example for Embedded Scene Recalls or System Manager operation.

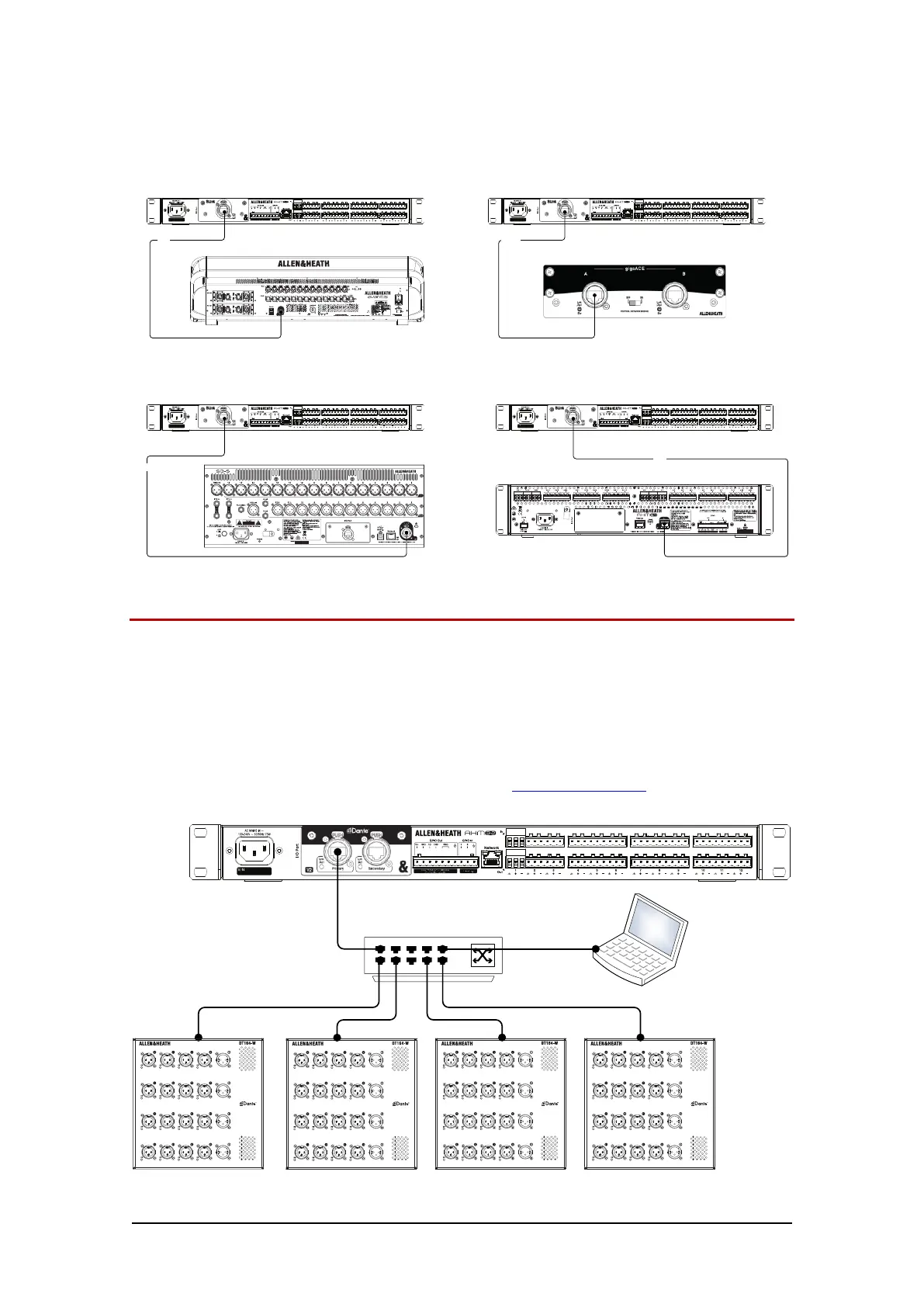

6.4 Dante expanders with Dante card fitted
Control of the DT168 or DT164-W expanders requires an M-SQ-DANT32 or M-SQ-DANT64 (SQ Dante V2)
card fitted in the I/O Port.
Use Dante Controller to patch signals between Dante devices. When a valid DT168 or DT164-W socket is
routed to the AHM processor, and patched to an Input channel, System Manager will present preamp gain,
+48V and Pad controls for the socket.
DT expanders should always be clock followers on the Dante network, with the AHM-64 processor typically
set to ‘Preferred Leader’ and ‘Enable Sync to External’.
Refer to the DT expander Getting Started Guide at www.allen-heath.com for further
information.
